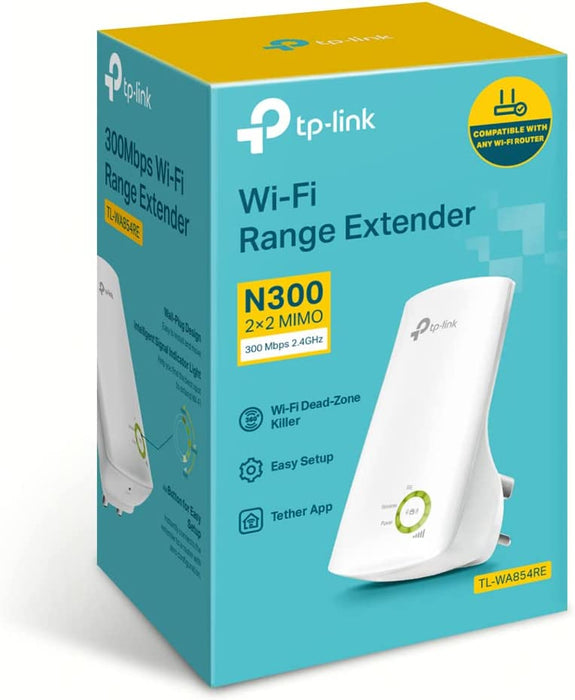

TP-LINK (TL-WA854RE) 300Mbps Wall-Plug Wifi Range Extender, No LAN, Universal Broadband/Wi-Fi Extender

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Easily expand wireless coverage at a push of Range Extender button

What This Product Does
TP-LINK's TL-WA854RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”. With 300Mbps wireless N speeds, Range Extender button, miniature size and wall mounting design, extending a wireless network has never been easier.

300Mbps Range Extender
The TL-WA854RE is designed to conveniently extend the coverage and improve the signal strength of an existing wireless network to eliminate “dead zones”, help users maintain an existing wireless network and vastly improve the network’s coverage. With 300Mbps wireless 802.11n speeds, it is ideal for smooth HD video, music streaming and online gaming.

Flexible Deployment
The device's miniature size and wall-mounted design make it easy to deploy and move flexibly. What's more, the TL-WA854RE's profile function remembers previously paired wireless networks, meaning there is no need to reset the device when changing the paired router.

Plug and Play
With no new wires or cables, within range of their existing wireless network, users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA854RE or vice versa. An additional push of the pair button can quickly establish an encrypted connection with client devices.

Smart Signal Indicator Light
5 signal lights represent the current signal strength that TL-WA854RE receives from existing router, which can help to find the right location to place the range extender so that the TL-WA854RE can achieve the best possible range and performance of the network.

Universal Compatibility
Works seamlessly with all 802.11 n/g/b wireless devices. It is also compatible with the latest Windows 8 operating system.

Specifications

Primary Function: Range Extender

Dual Band: No

Max Wireless Transfer Rate: 300 Mbps

Interface(s): N/A

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Antenna: 2 x internal

Button(s): RE (Range Extender) Button, Reset Button

Power Consumption: about 3W

Dimensions (W x D x H): 110.0 x 65.8 x 75.2 mm

Weatherproof: No

Frequency: 2.4~2.4835GHz

EIRP: < 20 dBm (EIRP)

Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Wireless Modes: Range Extender

Wireless Functions
WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function

Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK

Environment (°C)
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents
TL-WA854RE
Resource CD
Quick Installation Guide
