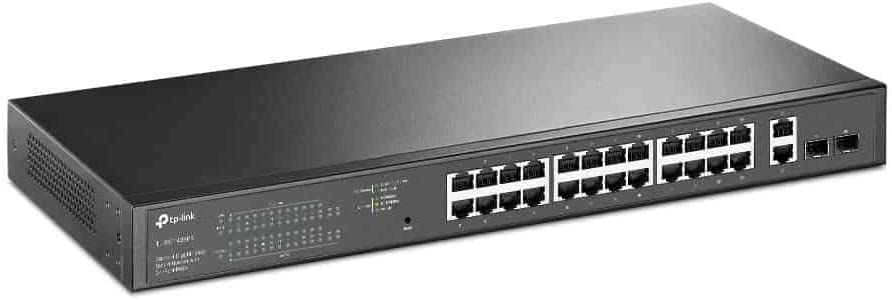

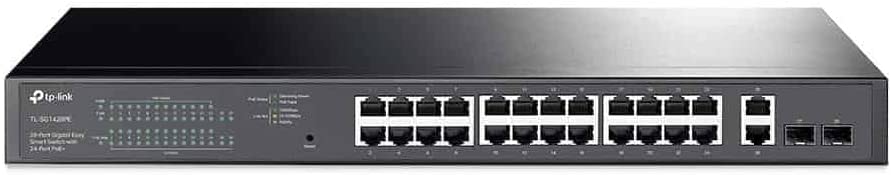

TP-LINK TL-SG1428PE 28-Port Gigabit PoE+ Easy Smart Switch, 24-Port PoE+, 2 SFP Ports, Rackmountable

TP-Link 28-Port Gigabit PoE+ Easy Smart Switch

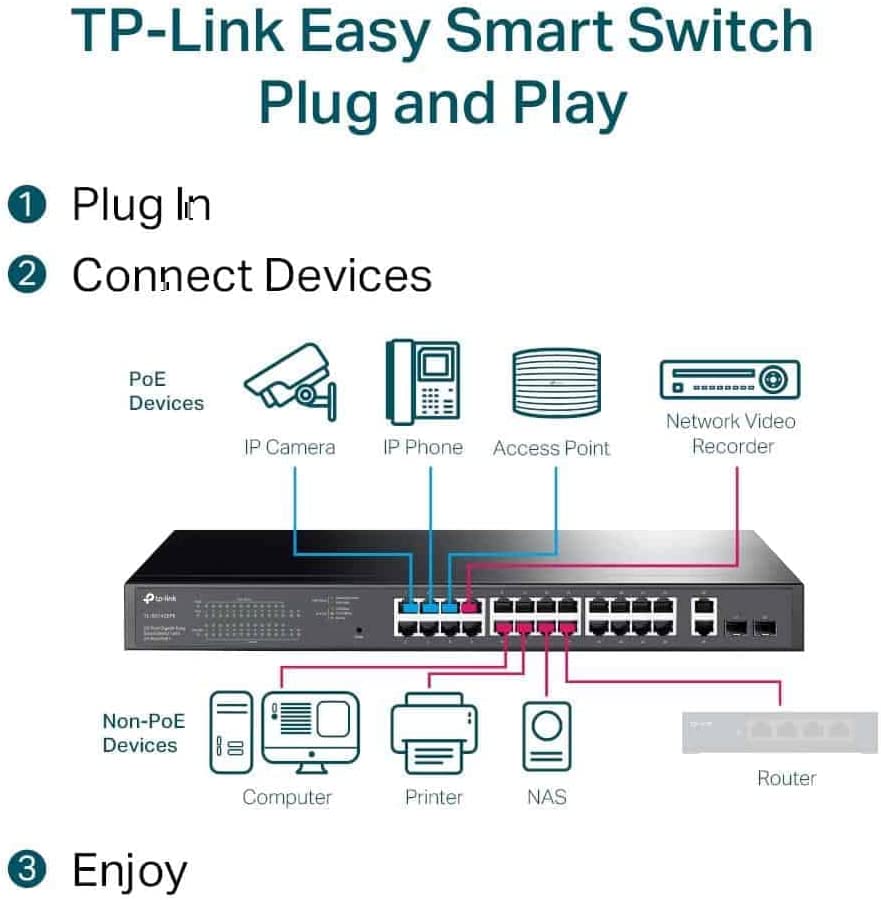

The TP-LINK TL-SG1428PE is a 28-port Gigabit PoE+ switch with 24 PoE+ ports and 2 SFP ports. It is easy to rackmount and offers smart features for efficient network management. With PoE+ capabilities, it can power devices such as IP cameras and wireless access points, making it a valuable asset for businesses.

Specifications

Rackmountable: Yes

Managed: Smart

Number of Ports: 28

RJ45 Data Transfer Rate: 10/100/1000 Mbps

Interface(s)
26 x 10/100/1000 Mbps RJ45 Ports
2 x Gigabit SFP Ports

PoE Ports (RJ45)
Standard: 802.3at/802.3af compliant

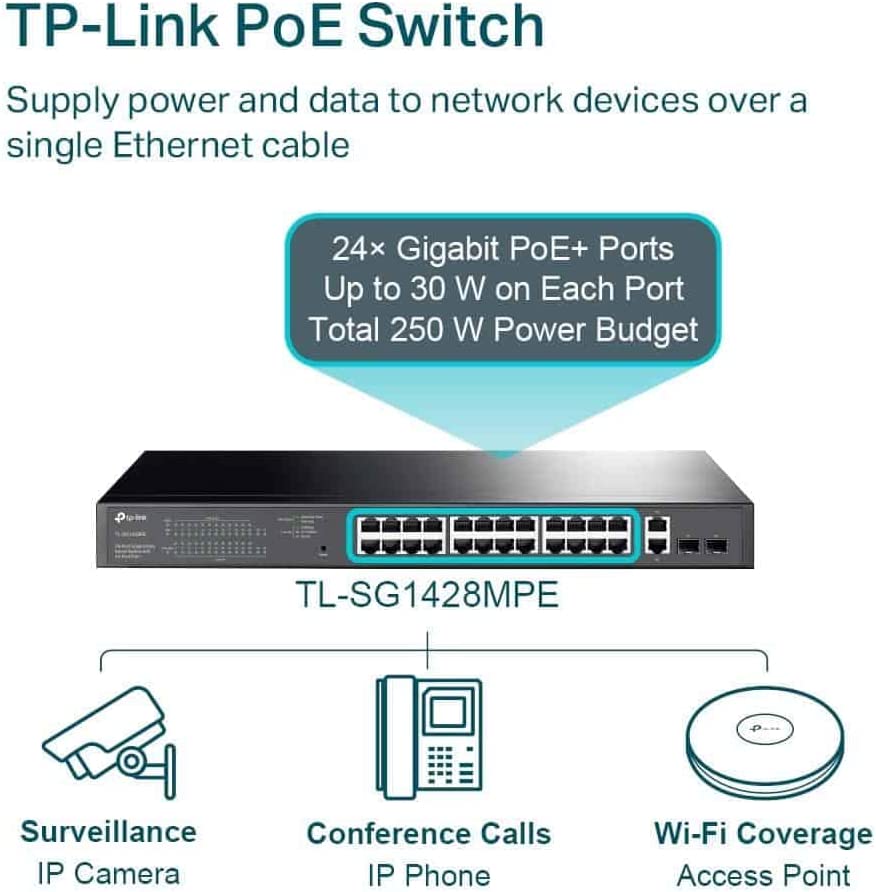

PoE+ Ports: 24 Ports
Power Supply: 250 W

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Switching Capacity: 56 Gbps

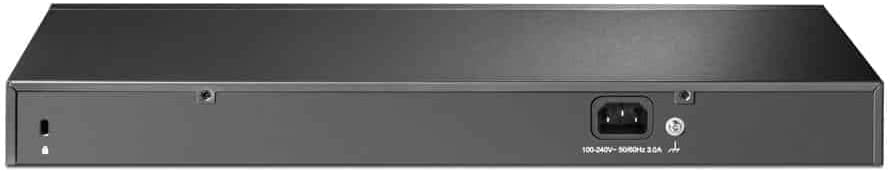

Power Supply
100-240V AC, 50/60 Hz

Max Consumption:
27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)

Dimensions: 440 x 220 x 44 mm

Mac Address Table: 8K

Packet Forwarding Rate: 41.7 Mbps

Jumbo Frame: 9 KB

Quality of Service
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

Layer Features
L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery

VLAN
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

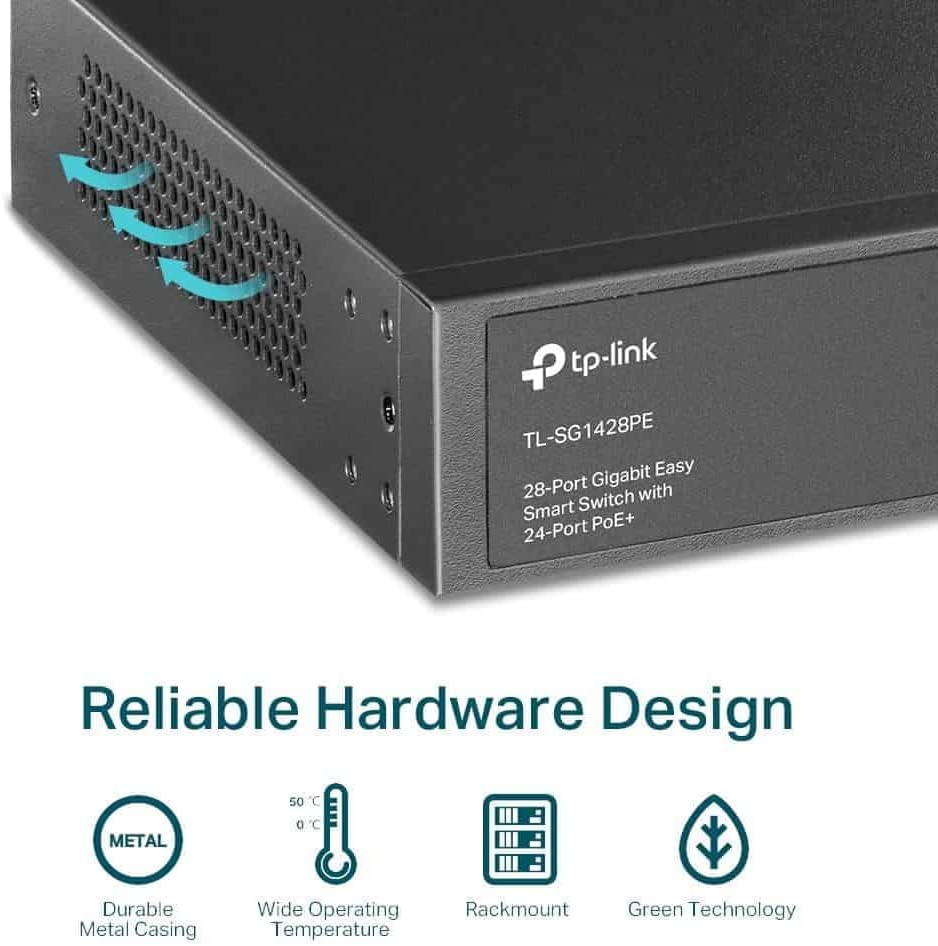

Security: Physical security lock

Management
Web-Based GUI
Easy Smart Configuration Utility

Environment
Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents
TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
