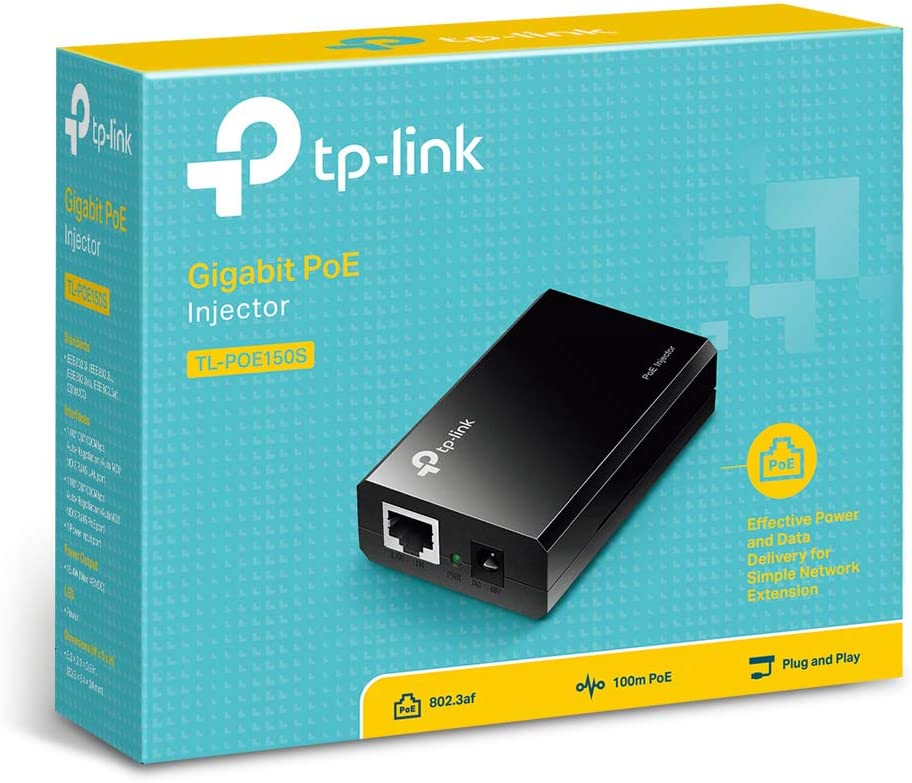

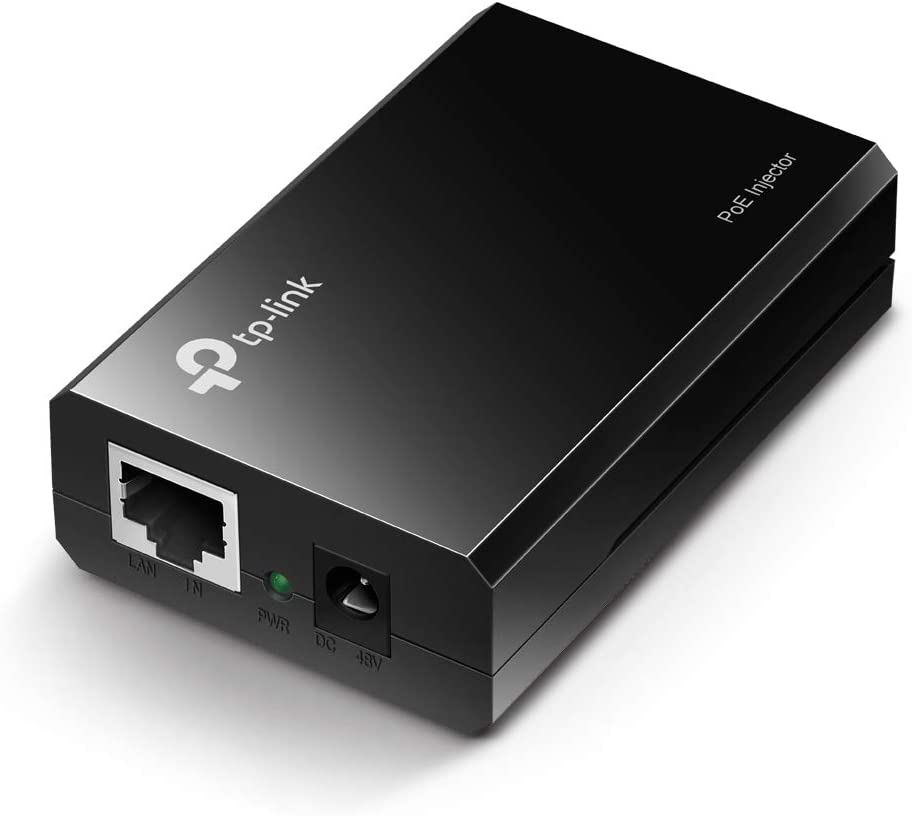

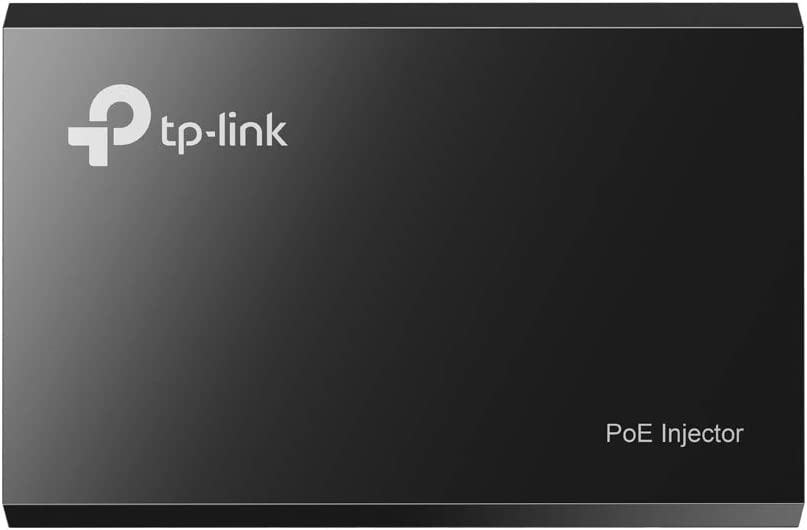

TP-LINK (TL-POE150S) Gigabit PoE Injector

• IEEE 802.3af compliant
• Auto-determine the necessary power requirements
• Gigabit speed support
• Plug-and-Play, requires no configuration

What This Product Does
The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Specifications

Interface(s)
2 x 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 x 48VDC POWER INPUT PORT

Dimensions: 3.2 x 2.1 x 0.9 in.(80.8x54x24 mm)

LED Indicator: PWR

Power Supply: 15.4W (Max. 48VDC)

Basic Function
Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements

Environment (℃)
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
