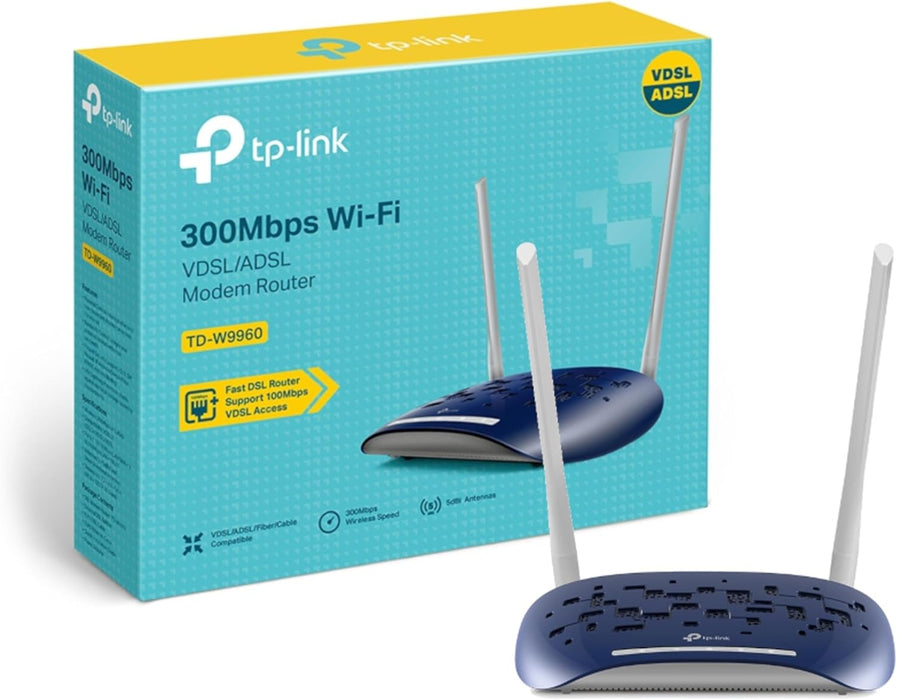

TP-Link 300Mbps Wireless VDSL2/ADSL2+ Modem Router, 4-Port 10/100 RJ45, TD-W9960

TP-Link Wireless VDSL2/ADSL2+ Modem Router

This TP-LINK TD-W9960 Modem Router offers high-speed 300 Mbps wireless connectivity and supports both VDSL2 and ADSL2+ technologies. With 4 ports and a range of advanced features, it provides reliable and fast internet access for your home or office. Upgrade your network with this professional-grade modem router.

Specifications

Type: VDSL2/ADSL2 Router

Connectivity: Wireless

Wi-Fi Rating: N300

Max Single Band Wi-Fi Rate: 300 Mbps

Max Wired Transfer Rate: 10/100 Mbps

Bands: Single Band

Interface(s)
3 x 10/100Mbps RJ45 LAN Ports
1 x 10/100Mbps RJ45 LAN/WAN Port
1 x RJ11 Port

Standards: IEEE 802.11b, 802.11g, 802.11n

Frequency: 2.400-2.4835GHz

Button(s): WPS Button, RESET Button, Power ON/OFF Button

Power Supply: 9VDC/0.6A

Antenna(s): 2 x 5dBi, Omni directional, Fixed

Dimensions: 181.6 x 129.7 x 36.2 mm

Wireless Functions
VDSL/ADSL Modem Router
Wireless Router

Security
NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, Access Control, Service Filtering, IP and MAC Address Binding

Port/NAT Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP

VPN Support: IPSec VPN

Management
Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools

Additional Features
Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3

Environment
Operating Temperature: 0C~40C(32F~104F)
Storage Temperature: -40C~70C(-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents
TD-W9960
External DSL Splitter
RJ-11 DSL Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter
