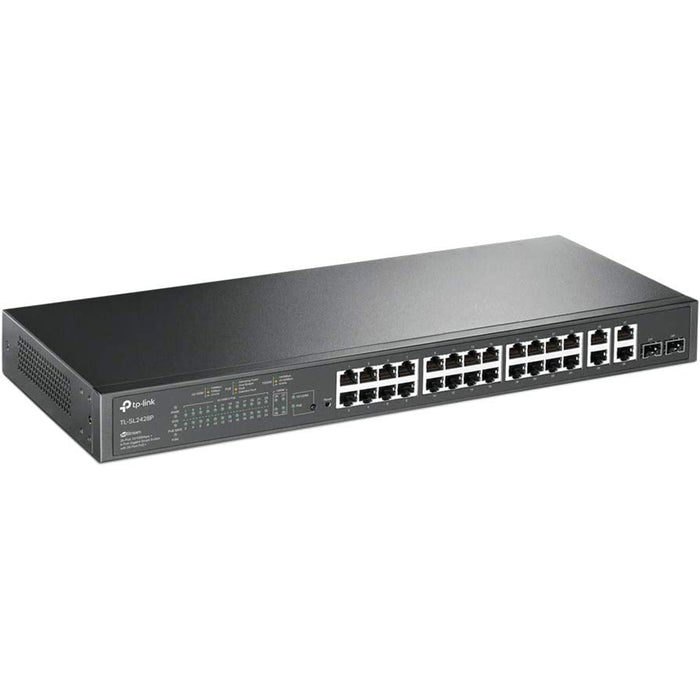

TP-Link 24-Port PoE Smart Switch T1500-28PCT, 24 x 10/100Mbps PoE+ 4-Port Gigabit, 2 Combo GB SFP Slots, Rackmountable
TP-Link 28 Port Switch, 24 Port PoE+, 4 Port Gigabit
The TP-Link T1500-28PCT is a smart PoE switch with 24 PoE+ ports and 4 Gigabit ports. It also features 2 combo GB SFP slots and is rackmountable. Perfect for businesses, this switch allows for faster data transfer speeds and eliminates the need for separate power sources for connected devices.
Specifications
Rackmountable: Yes
Managed: Smart
Number of Ports: 28
RJ45 Data Transfer Rate: 10/100 & 10/100/1000 Mbps
Interface(s)
24 x 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 x 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 x Combo Gigabit SFP Slots
PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250W
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q,
IEEE 802.1p
Switching Capacity: 12.8 Gbps
Power Supply: 100~240VAC, 50/60Hz
Dimensions: (W x D x H) 440 x 180 x 44 mm
Mac Address Table: 8k
Packet Forwarding Rate: 9.5Mpps
Jumbo Frame: 9216 Bytes
Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Bandwidth Control
Smoother Performance
Storm Control
Layer Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
L2 Multicast
512 IPv4, IPv6 shared multicast groups
IGMP Snooping
MLD Snooping
Multicast VLAN Registration
Multicast Filtering
VLAN
VLAN Group
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN
Access Control: P/Port/MAC
Security
AAA
802.1X
EAP-TLS/EAP-TTLS/EAP-PEAP
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management (HTTPS with SSLv3/TLS1.0)
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC-based access control
Management
Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
CPU Monitoring
Cable Diagnostics
EEE
System Log
802.1ab LLDP/ LLDP-MED
Package Contents
T1500-28PCT
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
