MSI Pro B850-P WiFi Gaming Motherboard ATX, AMD AM5, DDR5, PCIe 5.0, WiFi 7, 5G LAN

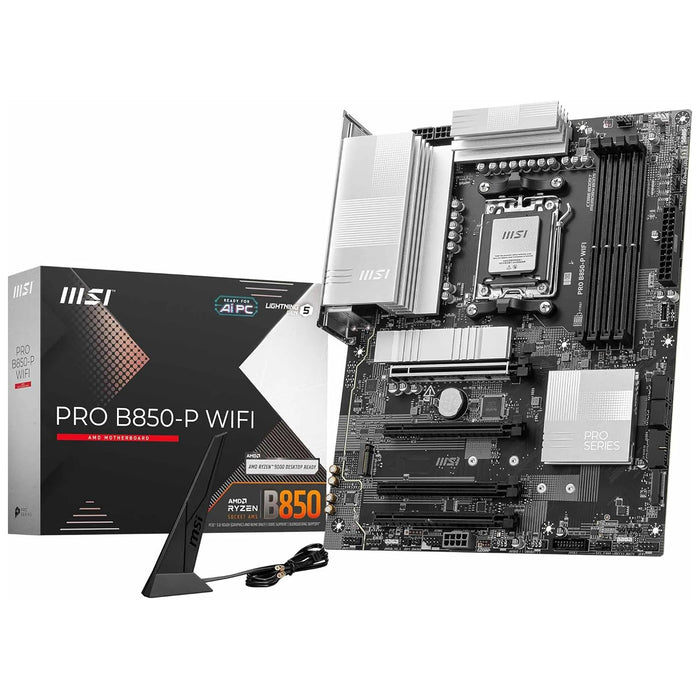

MSI Pro B850-P WiFi ATX Gaming Motherboard

The MSI Pro B850-P WiFi Gaming Motherboard is the ultimate choice for gamers. With its AMD AM5 processor, DDR5 memory, and PCIe 5.0 support, you can expect lightning-fast speeds and smooth gameplay. Plus, its built-in WiFi 7 and 5G LAN ensure a stable and lag-free online gaming experience. Upgrade your system with MSI's expertise and dominate the competition.

Specifications

CPU Socket: Socket AM5
CPU Brand: AMD
Installed Processors (Max): 0 (1)
Supported Processor Manufacturer: AMD
Supported Processors: Ryzen 9000 / 8000 / 7000 Series Processors
64-bit Support: Yes
Socket: AM5
USB Ports: 2 x USB-C 3.1, 1 x USB 3.1, 1 x USB 3.0, 4 x USB 2.0
HDMI Port: 1 x HDMI 2.1
RJ-45 Ports: 1 x RJ-45
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5mm Jack
S/PDIF Port: 1 x S/PDIF Optical Out
Antenna Connector(s): 2 x SMA Antenna
Memory Bus Speed: Up to 8200 MT/s
Memory Type: DDR5
Maximum RAM: 256 GB
Memory Slot: 4 x DIMM

Number of PCI Express Slots
1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 3.0 x16 slots (@ x1/x1)

SATA Connectors: 4 x SATA

USB Connectors
1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)

Front Panel Connectors: 1 x Front Panel, 1 x Front Audio

Cooling Fan Support: 1 x CPU fan header, 1 x Combo fan header, 4 x System fan headers
Serial Connectors: 1 x COM header
Chassis Intrusion Connector: 1 x Chassis Intrusion header
TPM Header: 1 x TPM header
Power Connector Port: 1 x 24-pin ATX, 2 x 8-pin EPS, 1 x 8-pin PCIe

Other Connectors
1 x M.2 slot, Type 2260/2280 (PCIe Gen5)
1 x M.2 slot, Type 2280/22110 (PCIe Gen4)
1 x M.2 slot, Type 2260/2280 (PCIe Gen4 x2)
3 x 3-pin ARGB headers
1 x 4-pin RGB header
