MSI MAG X870E Tamohawk WiFi ATX Gaming Motherboard, AM5, DDR5, PCIe 5.0, WiFi 7

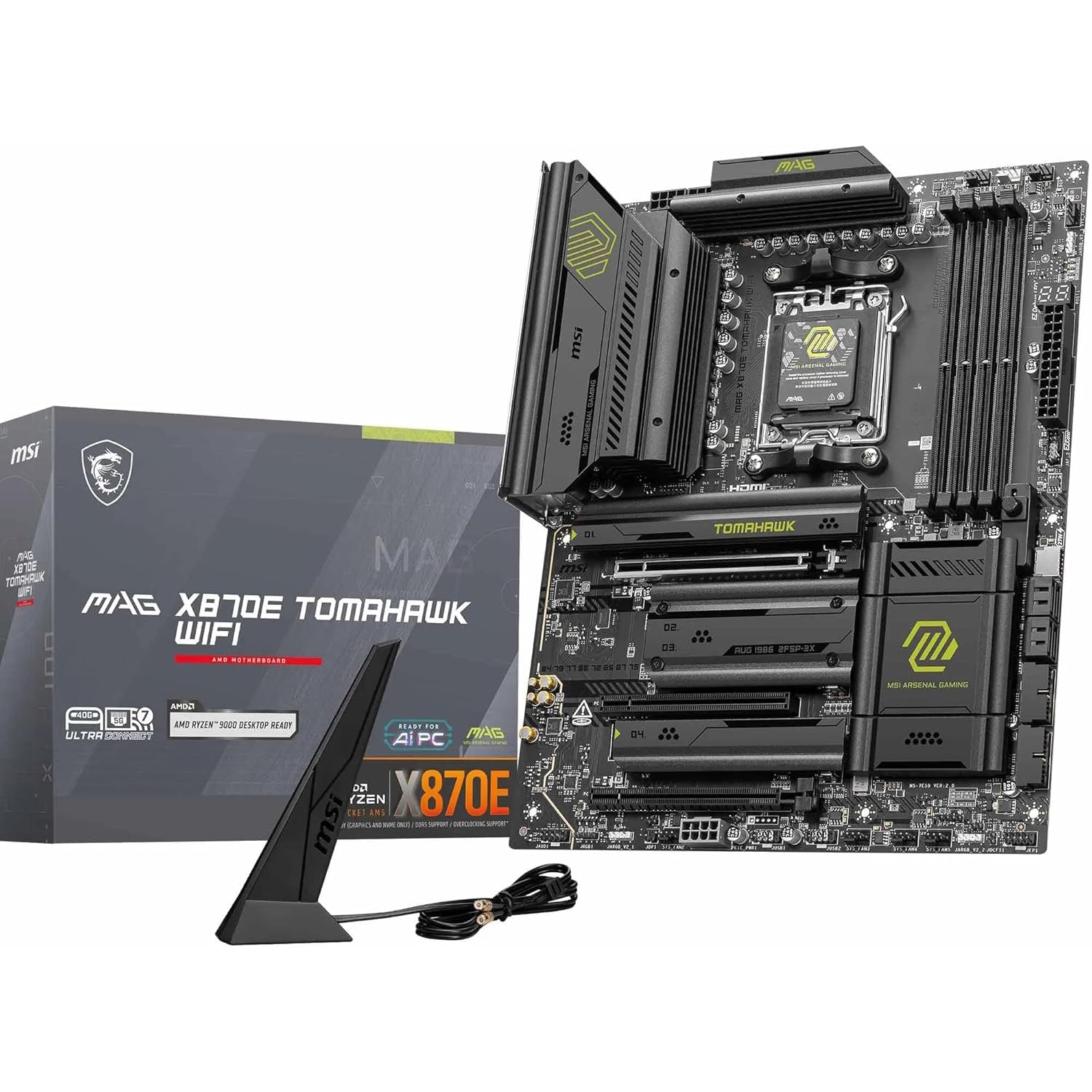

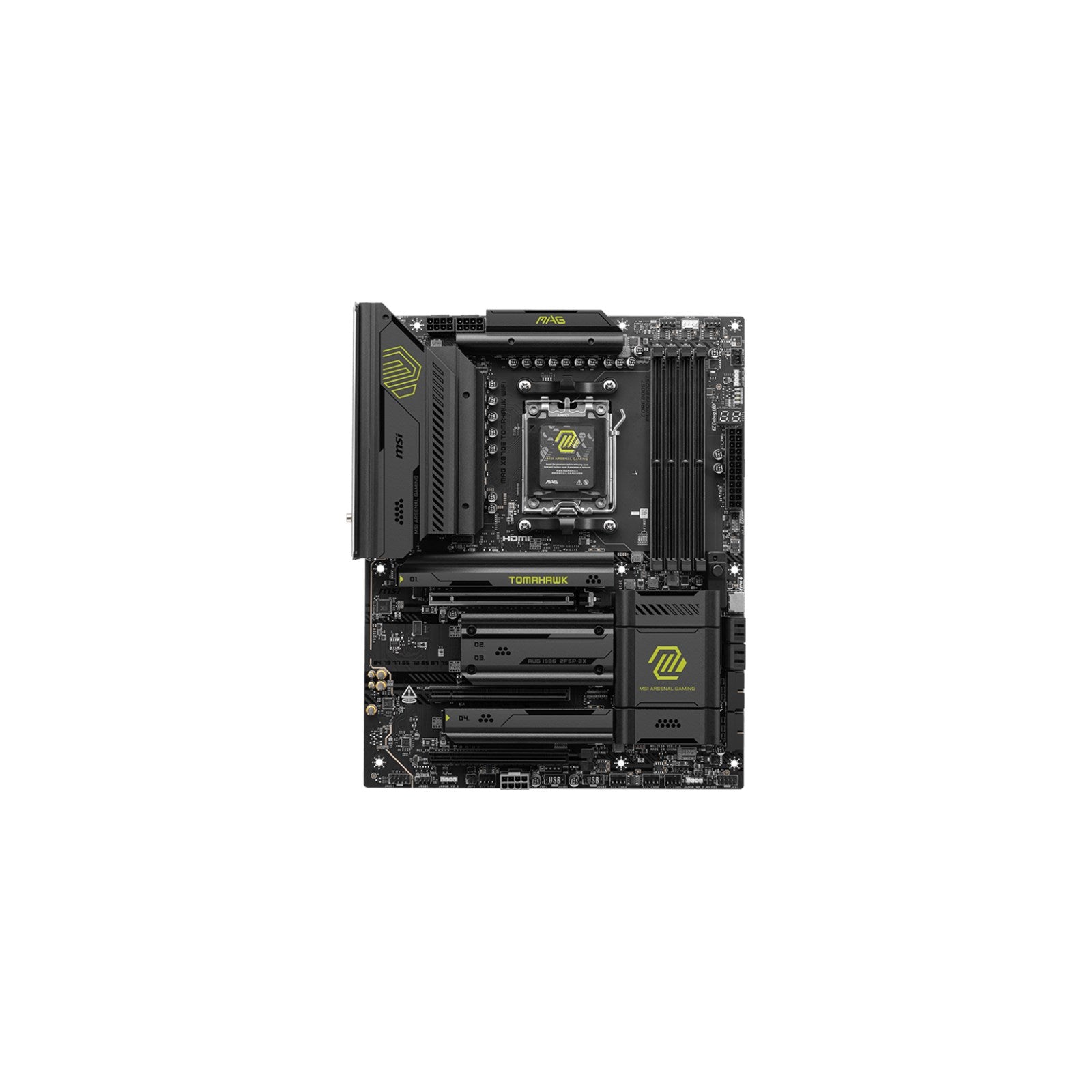

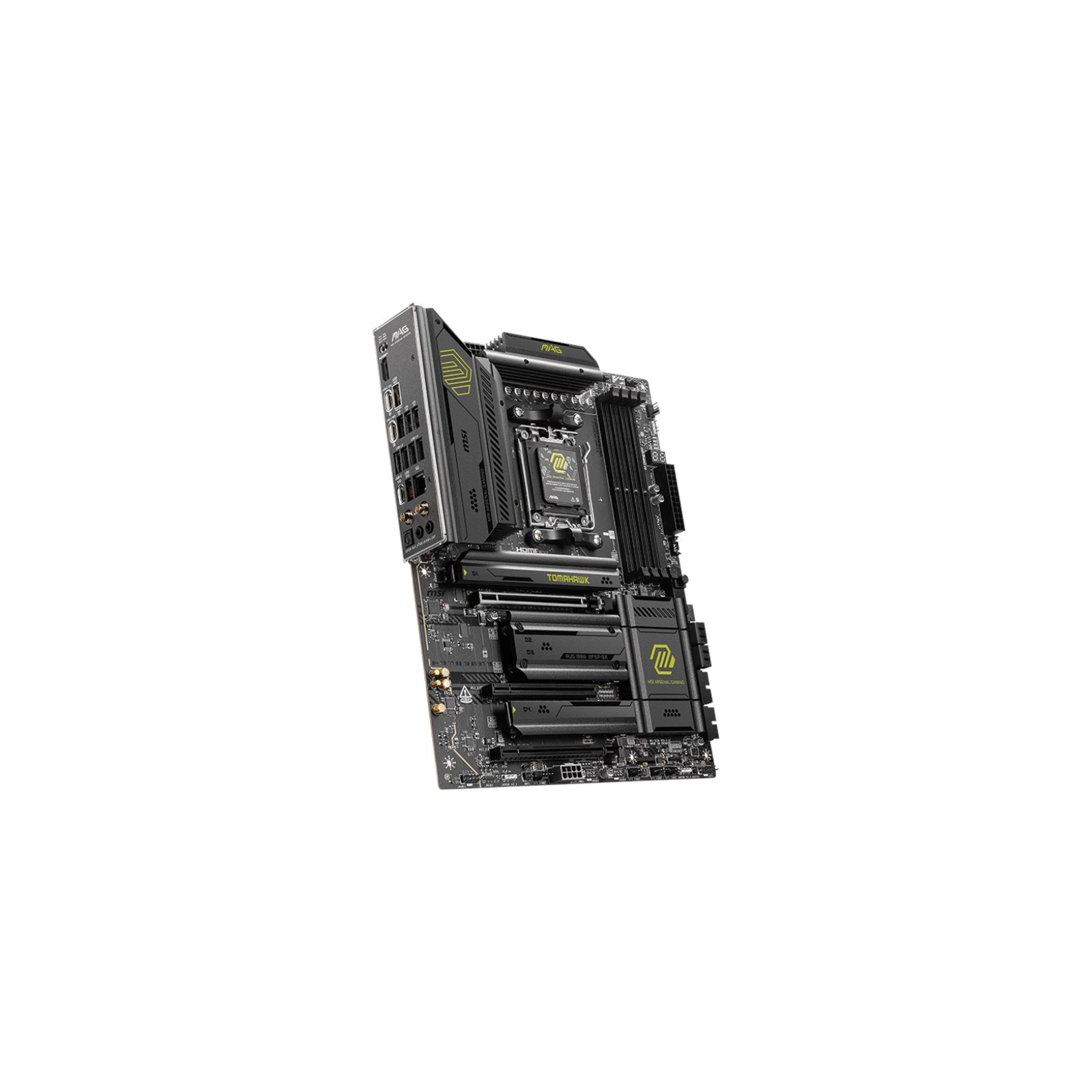

MSI MAG X870E Tomahawk ATX Gaming Motherboard
Upgrade your gaming setup with the MSI MAG X870E Tomahawk WiFi ATX Gaming Motherboard. With AM5 and DDR5 compatibility, PCIe 5.0 technology, and WiFi 7 capability, enjoy lightning-fast speeds and seamless connectivity for an unmatched gaming experience. Trust in MSI's expertise for optimal performance and reliability.
Specifications
CPU Socket: Socket AM5
CPU Brand: AMD
Installed Processors (Max): 0 (1)
Supported Processor Manufacturer: AMD
Supported Processors: Ryzen 9000/ 8000/ 7000 Series Desktop Processors
64-bit Support: Yes
Socket: AM5

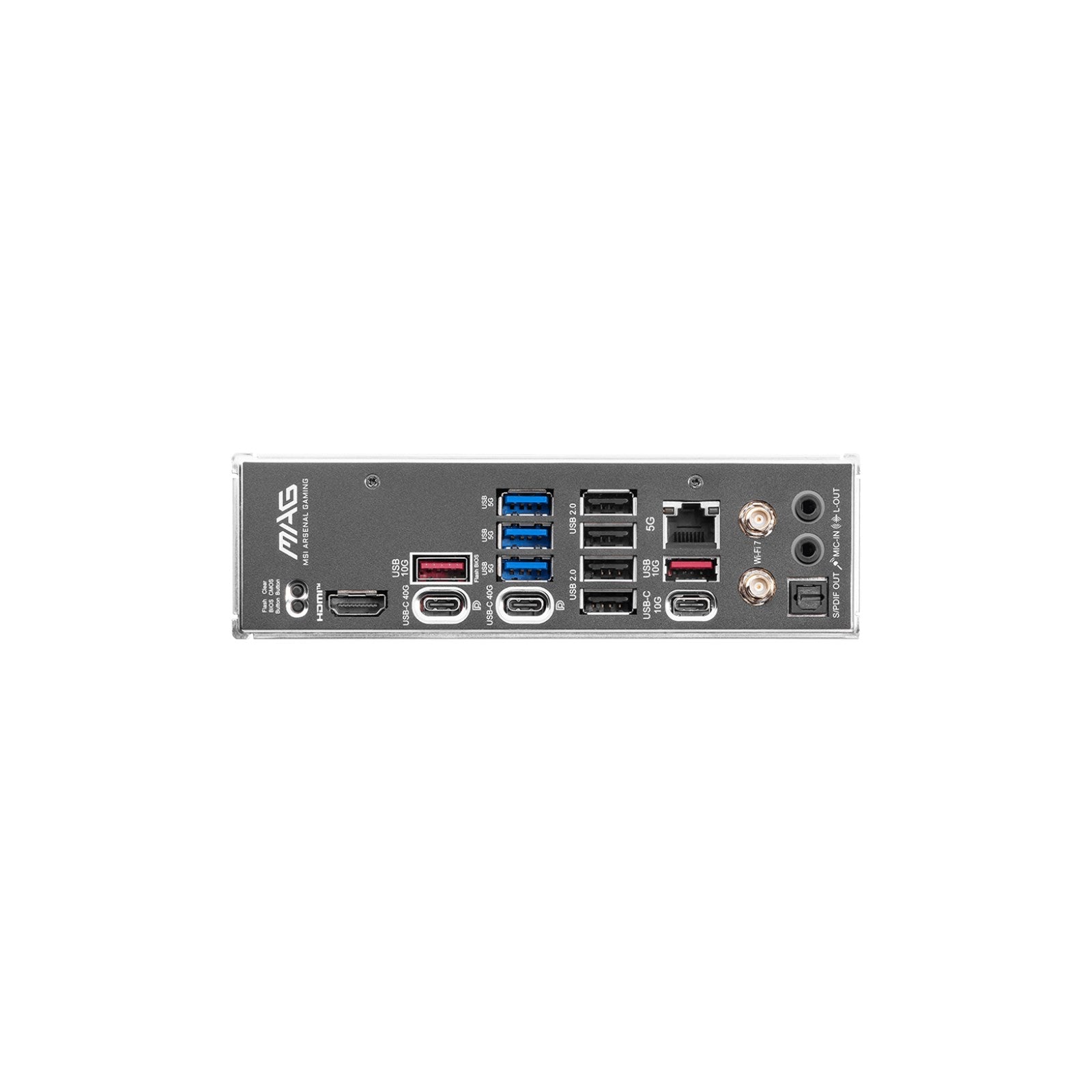

USB Ports: 2 x USB-C 4, 1 x USB-C 3.1, 2 x USB 3.1, 3 x USB 3.0, 4 x USB 2.0
HDMI Port: 1 x HDMI 2.1
RJ-45 Ports: 1 x RJ-45
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5mm Jack
S/PDIF Port: 1 x S/PDIF Optical Out
Antenna Connector(s): 2 x SMA Antenna
SATA Connectors: 4 x SATA
USB Connectors
1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors
1 x Front Panel
1 x Front Audio
Cooling Fan Support
1 x CPU fan header
1 x Combo fan header
6 x System fan headers
Chassis Intrusion Connector: 1 x Chassis Intrusion header
TPM Header: 1 x TPM header
Power Connector Port
1 x 24-pin ATX
2 x 8-pin EPS
1 x 8-pin PCIe
Other Connectors
1 x M.2 slot, Type 2280/22110 (PCIe Gen5)
1 x M.2 slot, Type 2260/2280 (PCIe Gen5)
2 x M.2 slots, Type 2260/2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header
Memory Bus Speed: Up to 8400 MT/s
Memory Type: DDR5
Maximum RAM: 256 GB
Memory Slot: 4 x DIMM
Northbridge: AMD X870E
RAID Supported: Yes
RAID Format: RAID 0, 1, 10
SATA Supported: Yes
Number of PCI Express Slots
1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x16 slot (@ x1)
Integrated Network: Realtek 8126
Network Speeds Supported: Up to 5 Gbps
Wireless LAN: Wi-Fi 7
Wireless Network Speed: Up to 5.8 Gbps
Bluetooth: Yes
Bluetooth Version: 5.4
