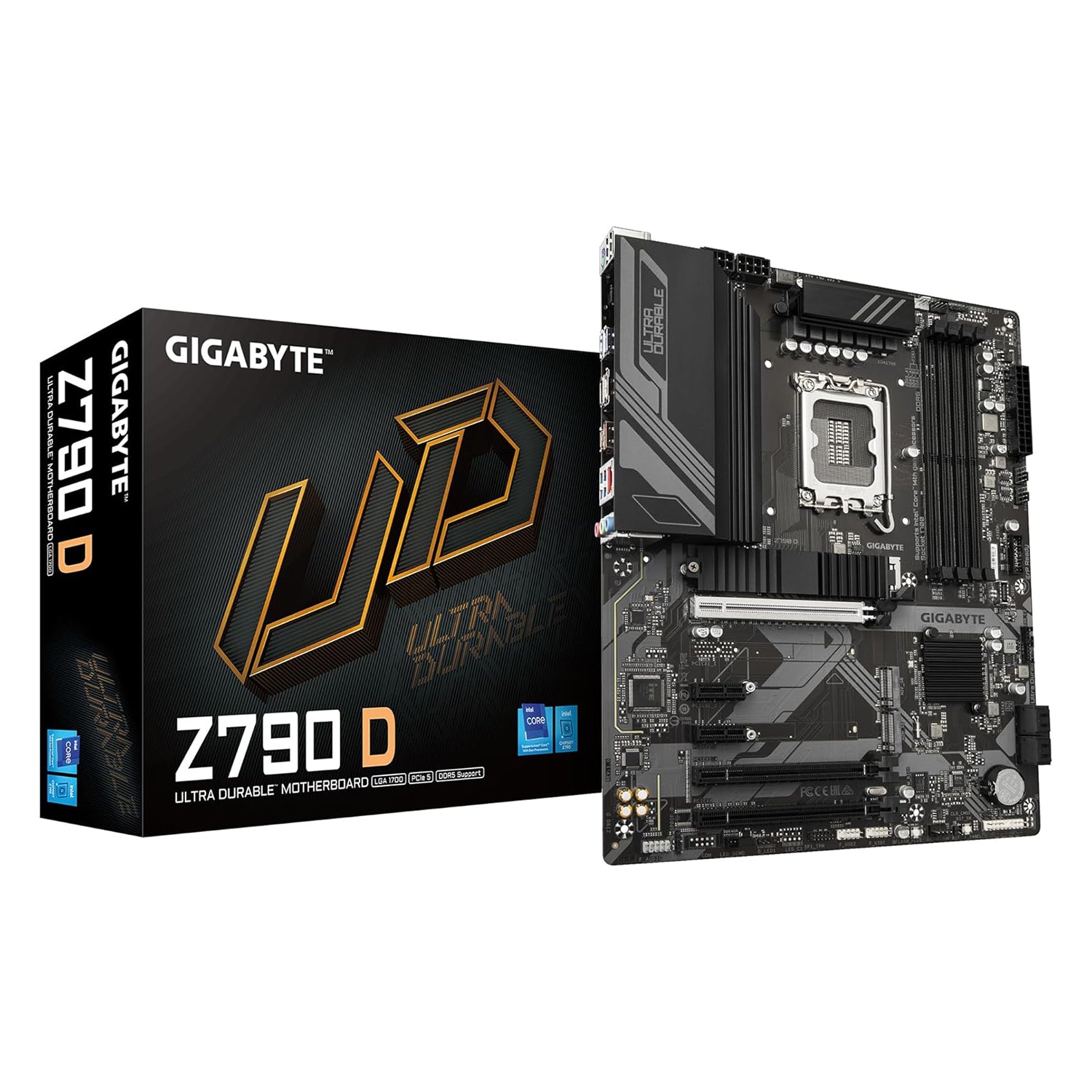

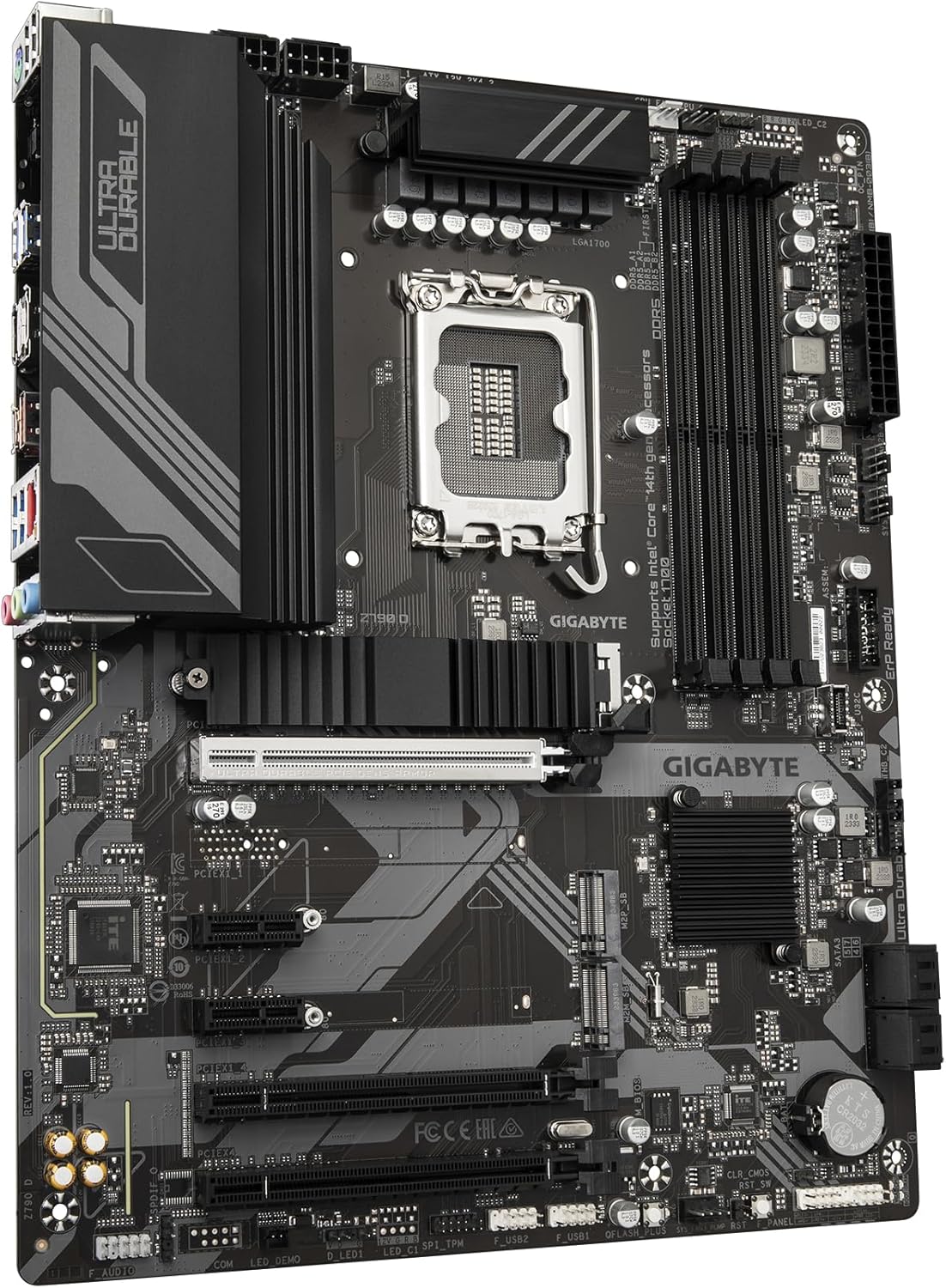

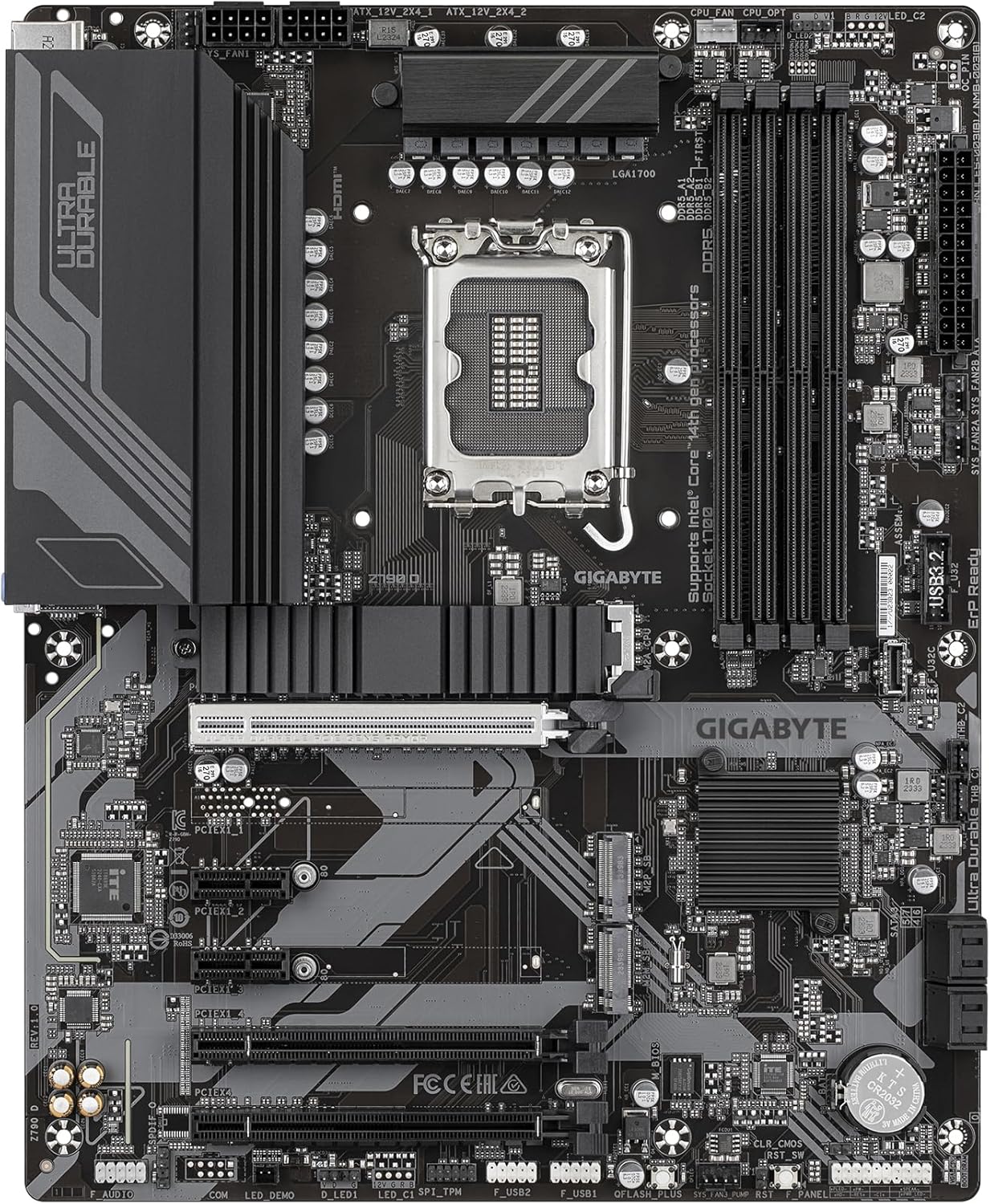

Gigabyte Z790 D Gaming ATX Motherboard, Socket 1700, Z790 Express, DDR5, S-ATA 6Gb/s
Gigabyte Z790 D Gaming Motherboard DDR5
Upgrade your gaming setup with the Gigabyte Z790 D Gaming ATX Motherboard. Powered by Intel 1700 and DDR5 technology, this ATX motherboard offers lightning-fast speeds and top-notch performance. With support for S-ATA 6Gb/s, you can easily connect all your devices. Get ready for an immersive gaming experience like no other.
Specifications
CPU Socket: Socket 1700
CPU Brand: Intel
Installed Processors (Max): 0 (1)
Supported Processor Manufacturer: Intel
Supported Processors: 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support: Yes
Socket: LGA1700

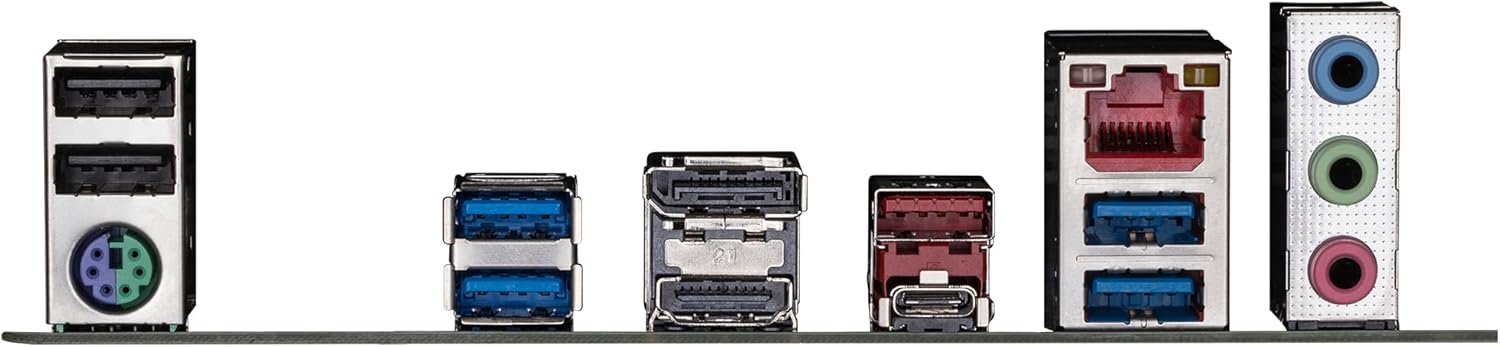

USB Ports: 1 x USB-C 3.1, 1 x USB 3.1, 4 x USB 3.0, 2 x USB 2.0
DisplayPorts: 1 x DisplayPort 1.2
HDMI Port: 1 x HDMI 2.1
Keyboard/Mouse Combo Port: 1 x PS/2
RJ-45 Ports: 1 x RJ-45
Audio Line In Ports: 1 x 3.5mm Jack
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5mm Jack
SATA Connectors: 4 x SATA III
USB Connectors
1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors
1 x Front Panel
1 x Front Audio
Cooling Fan Support
1 x CPU fan header
1 x CPU fan/Water Cooling pump header
3 x System fan headers
1 x System fan/Water Cooling pump header
S/PDIF Connectors: 1 x S/PDIF Out header
Thunderbolt Port(s): 2 x Thunderbolt add-in card connectors
TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin EPS
Other Connectors
1 x M.2 slot, Socket 3, M Key, Type 22110/2280 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4 or SATA)
2 x 3-pin ARGB LED headers
Memory Bus Speed: Up to 7600 MT/s
Memory Type: DDR5
Maximum RAM: 192 GB
Memory Slot: 4 x DIMM
Northbridge: Intel Z790
RAID Supported: Yes
RAID Format: RAID 0, 1, 5, 10
SATA Supported: Yes
Number of PCI Express Slots
1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x16 slot (@ x1)
2 x PCI Express 3.0 x1 slots
