Gigabyte X870E Aorus Pro ATX Gaming Motherboard, AMD AM5, DDR5, PCIe 5.0, WiFi 7

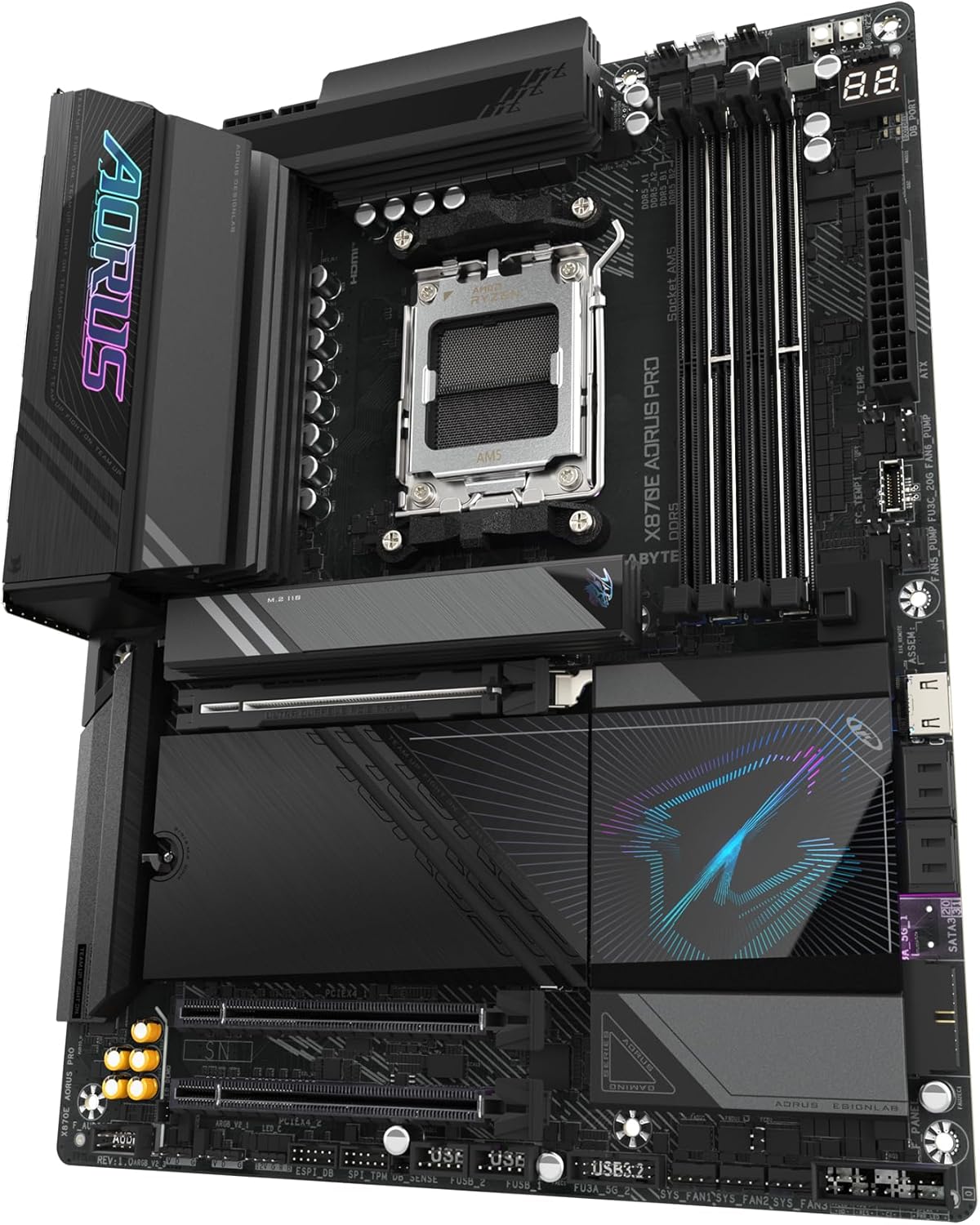

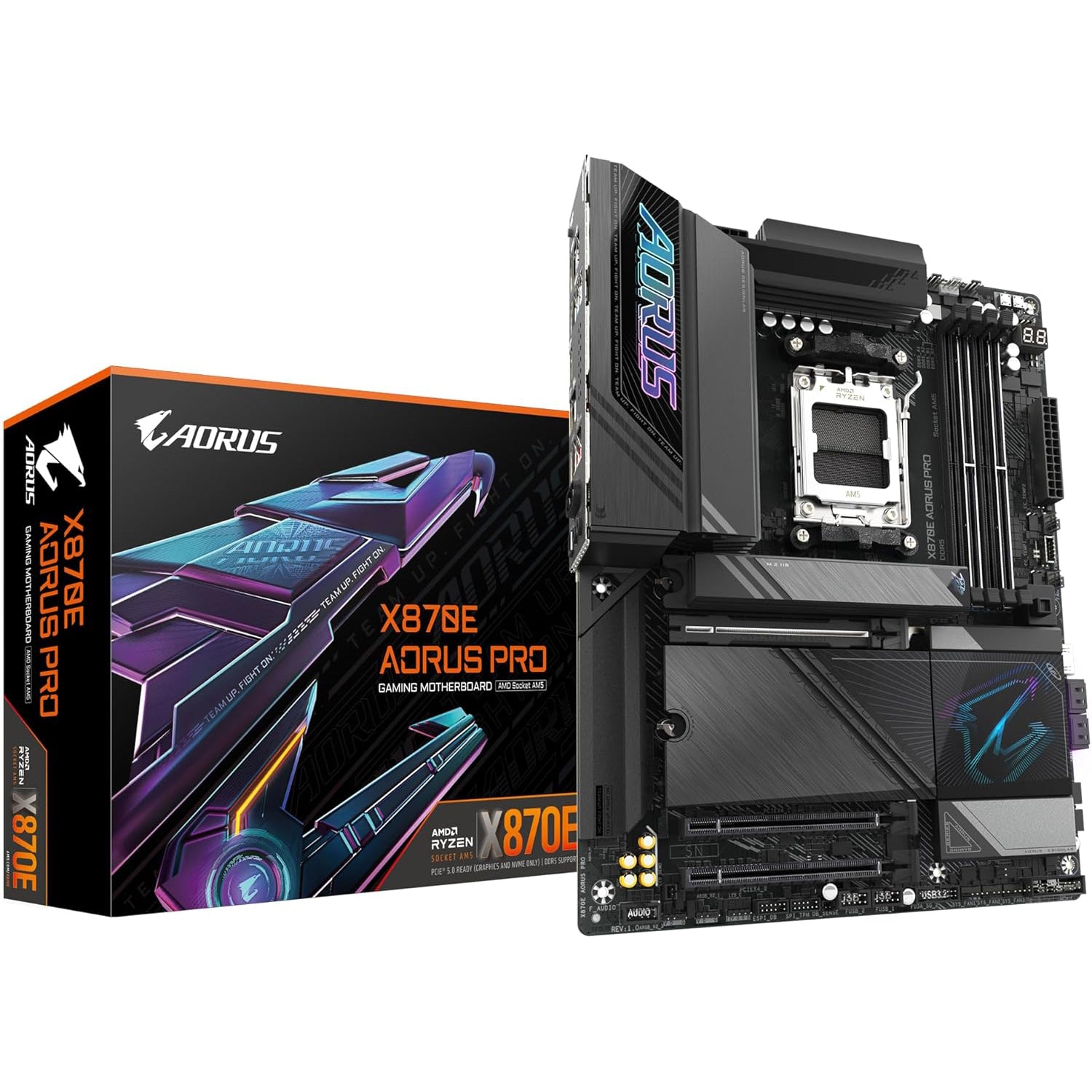

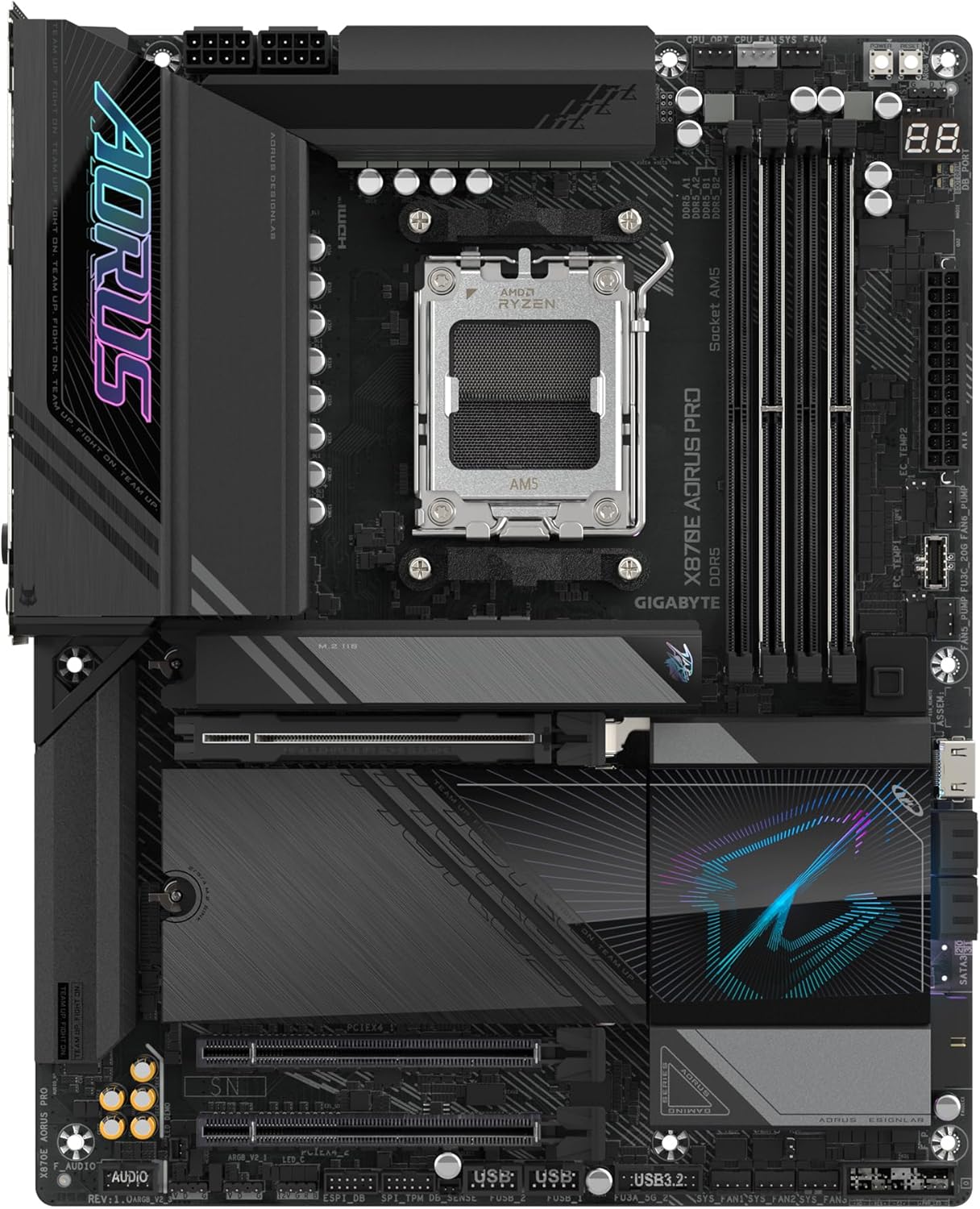

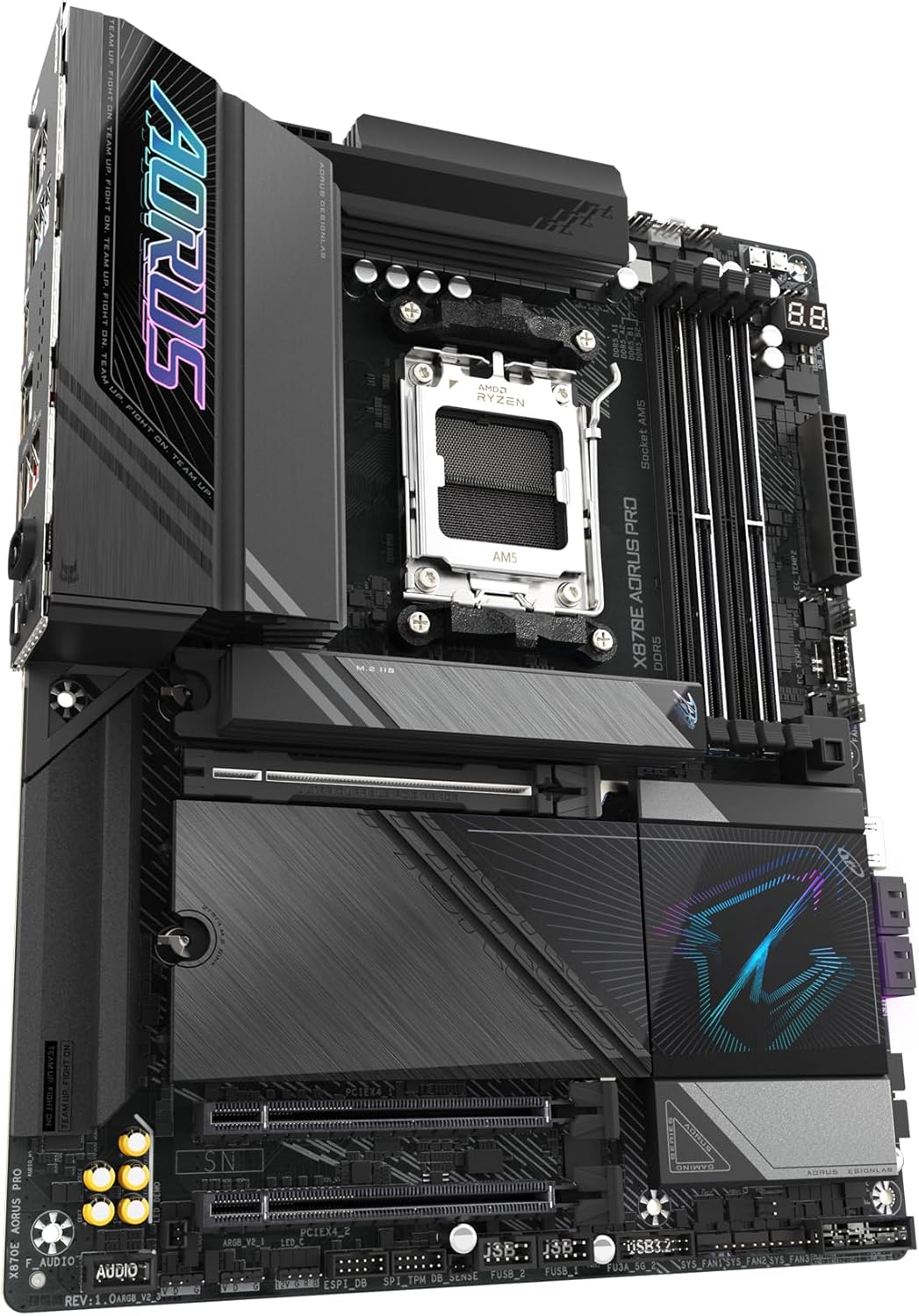

Gigabyte X870E Aorus Pro ATX Gaming Motherboard
Boost your gaming performance with the Gigabyte X870E Aorus Pro ATX Gaming Motherboard. Featuring AMD AM5 processor socket, DDR5 memory support, and PCIe 5.0 for lightning-fast data transfer speeds. Stay connected with WiFi 7 and enjoy a seamless gaming experience with this high-performing motherboard.
Specifications
Edition: X870E AORUS PRO
Form Factor: ATX
CPU Socket: AM5
Chipset: AMD X870E
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz)
DDR5 - 4400
DDR5 - 4800
DDR5 - 5200
DDR5 - 5600(OC)
DDR5 - 6000(OC)
DDR5 - 6200(OC)
DDR5 - 6400(OC)
DDR5 - 6600(OC)
DDR5 - 6800(OC)
DDR5 - 7000(OC)
DDR5 - 7200(OC)
DDR5 - 7600(OC)
DDR5 - 7800(OC)
DDR5 - 8000(OC)
Max. Memory Capacity: 256GB
Primary GPU Interface: PCIe 5.0 (x16)
NVIDIA SLI Support: Not Supported
AMD CrossFire Support: N/A
On-Board Graphics Connectors: HDMI 2.1, USB 4.0
Expansion Slots
1 x M.2, 22-80/110, PCIe Gen4x4
3 x M.2, 22-80/110, PCIe Gen5x4
1 x PCIe 3.0 x16 (x4 Bandwidth)
1 x PCIe 4.0 x16 (x1 Bandwidth)
1 x PCIe 5.0 x16
4 x SATA 6GB/s
SATA Support: SATA3
Storage Mode Support: RAID 0 (SATA only), RAID 1 (SATA only), RAID 10 (SATA only), RAID 5
Internal I/O
1 x 24-pin (Power)
1 x 4-pin CPU Fan Connector
2 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Clear CMOS jumper
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Front Panel Connector
4 x M.2 Connector
1 x Noise Detection Header
1 x Power button
1 x Reset Button
1 x RGB LED connector
4 x SATA III - 6Gb/s
4 x System Fan header
2 x System Fan/Water Pump Header
2 x Temperature Sensor Header
1 x TPM (Trusted Platform Module)
2 x USB 2.0 Header
2 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2x2 Connector
Network Interface Type
802.11be Wi-Fi 7 LAN
Wired 2.5 Gigabit LAN
Network Chip/Modules
1 x 802.11be WiFi 7
1 x Realtek (2.5GbE LAN)

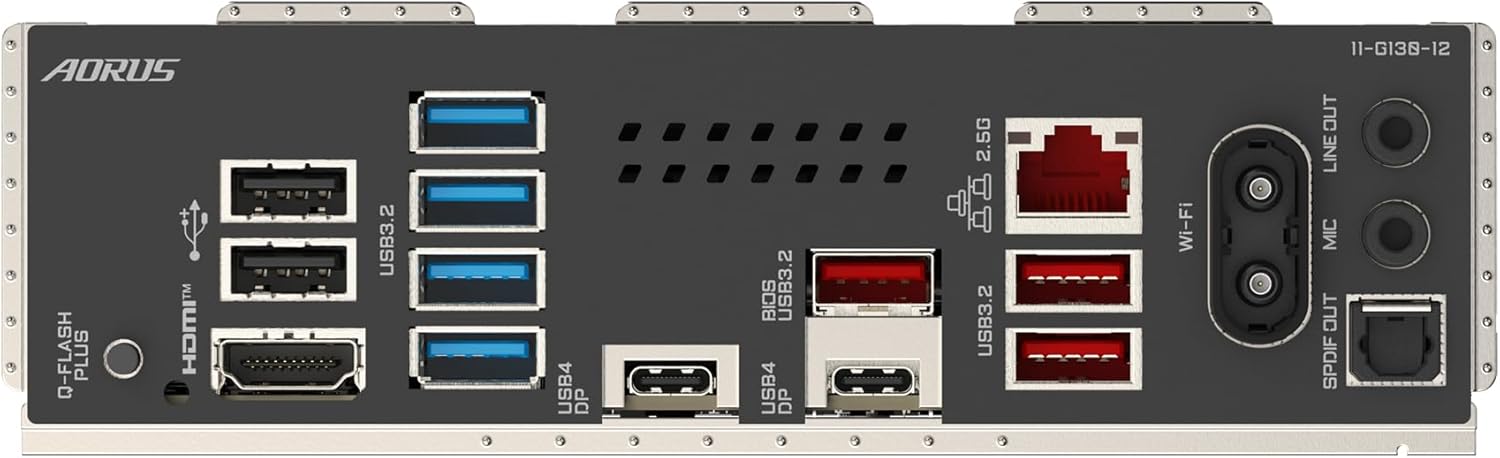

Rear I/O Connectors
1 x HDMI
1 x Line Out
1 x Mic-In
1 x Q-Flash Plus Button
1 x RJ-45
1 x S/PDIF-Out (Optical)
2 x SMA antenna connectors (2T2R)
2 x USB 2.0
4 x USB 3.2 Gen1 Type-A
2 x USB 3.2 Gen2 Type-A
2 x USB 4.0 Type-C
