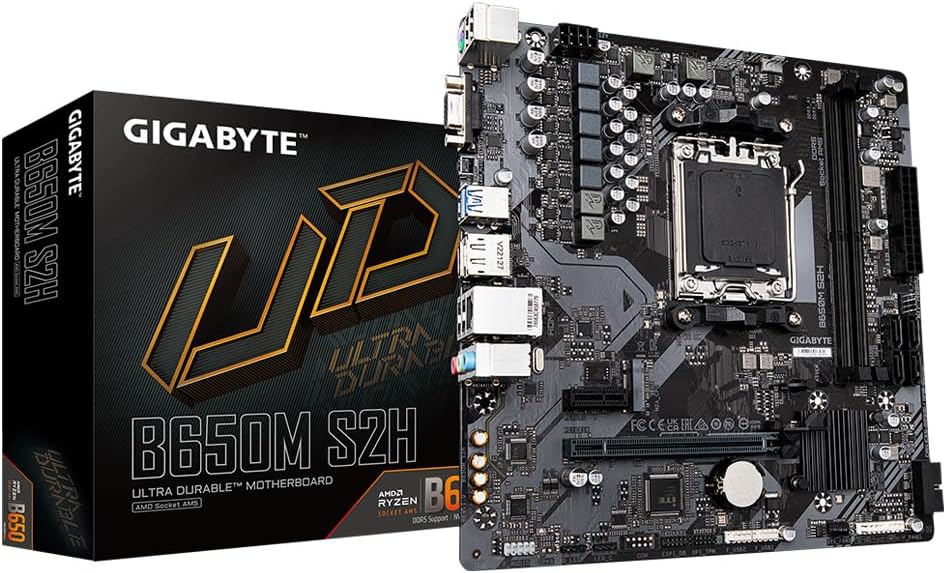

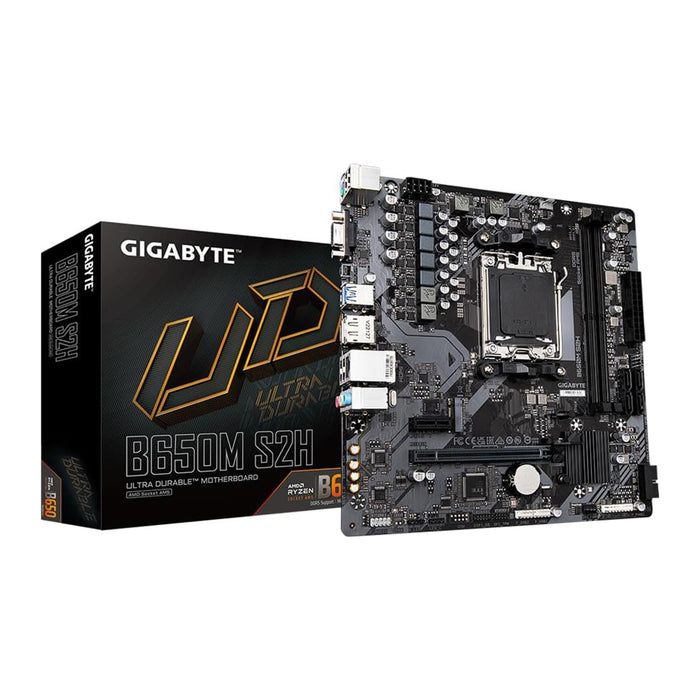

Gigabyte B650M S2H M-ATX Gaming Motherboard, AMD AM5, DDR5, PCIe 4.0, Micro ATX

Gigabyte B650M S2H Micro ATX Motherboard

The Gigabyte B650M S2H M-ATX Motherboard is a top-of-the-line choice for gamers and professionals alike. With AMD AM5 compatibility, DDR5 memory support, and PCIe 4.0 technology, this Micro ATX motherboard ensures lightning-fast performance and seamless multitasking. Trust in Gigabyte's expertise and elevate your gaming experience today.

Specifications

CPU Socket: Socket AM5
CPU Brand: AMD
Supported Processors: AMD Ryzen 7000 / Ryzen 8000 Series Processors
64-bit Support: Yes
Socket: AM5
USB Ports: 2 x USB 3.0, 4 x USB 2.0
DisplayPorts: 1 x DisplayPort 1.4
HDMI Port: 1 x HDMI 2.1
VGA Port: 1 x D-Sub
Keyboard/Mouse Combo Port: 1 x PS/2
RJ-45 Ports: 1 x RJ-45
Audio Line In Ports: 1 x 3.5mm Jack
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5mm Jack
SATA Connectors: 4 x SATA III
USB Connectors: 1 x USB 3.0 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors: 1 x Front Panel, 1 x Front Audio
Cooling Fan Support: 1 x CPU fan header
2 x System fan headers
TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin EPS
Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2580 (PCIe Gen4), 1 x 3-pin ARGB LED header, 1 x 4-pin RGB LED header
Memory Bus Speed: Up to 7200 MHz
Memory Type: DDR5
Maximum RAM: 96 GB
Memory Slot: 2 x DIMM
Northbridge: AMD B650
RAID Supported: Yes
RAID Format: RAID 0, 1, 10
SATA Supported: Yes
Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot, 1 x PCI Express 3.0 x1 slot
