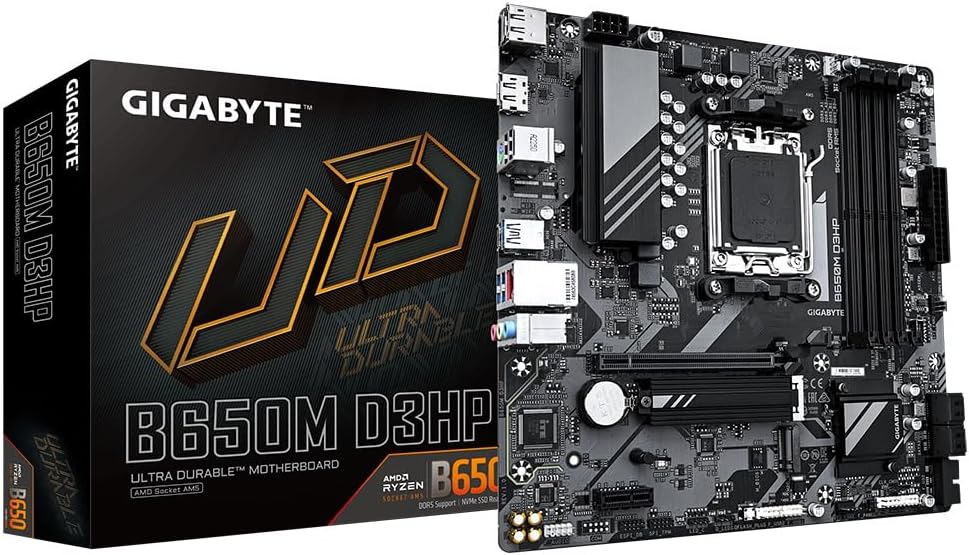

Gigabyte B650M D3HP Ultra Durable Micro ATX Motherboard AMD B650 AM5 DDR5 M.2 PCIe 4.0

Gigabyte B650M D3HP M-ATX Motherboard

Get the ultimate computing experience with Gigabyte B650M D3HP Ultra Durable Micro ATX Motherboard. This high-quality motherboard ensures maximum durability and performance for your desktop. Upgrade to DDR5 and M.2 PCIe 4.0 for lightning-fast speed and efficiency.

Specifications

Processor manufacturer: AMD
Processor socket: AM5
Compatible processor series: AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Maximum internal memory: 192 GB
Memory slots type: DIMM
Memory channels: Dual-channel
Non-ECC: Yes
Supported memory clock speeds: 7600, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5600, 5200, 4800 MHz
Supported memory clock speed (max): 7600 MHz
Unbuffered memory: Yes
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O Ports
2 x USB 2.0
1 x USB 3.2 Gen 1 (3.1 Gen 1)
1 x USB 3.2 Gen 2 (3.1 Gen 2)
4 x SATA III
Front panel audio connector
Front panel connector
ATX Power connector (24-pin)
CPU fan connector
EPS power connector (8-pin
TPM connector
1 x Serial port headers: 1
12V power connector
RGB LED pin header

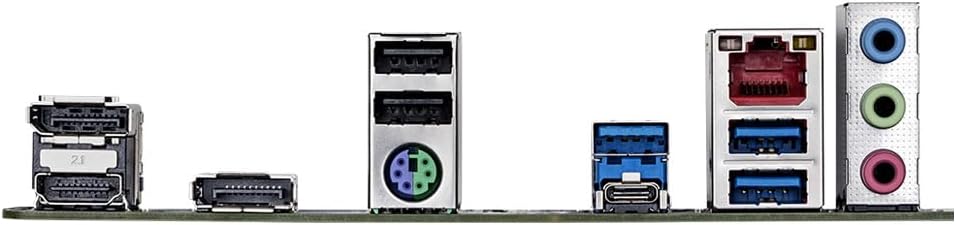

Rear panel I/O Ports
5 x USB 2.0 ports quantity
2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports
1 x USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports
1 x USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports
1 x Ethernet LAN (RJ-45)
1 x HDMI ports quantity
1 x PS/2 ports quantity
1x HDMI version: 2.1
2 x DisplayPorts quantity
1 x DisplayPort version: 1.4
3 x Headphone outputs
Microphone in
USB connector type: USB Type-A, USB Type-C
