Gigabyte B550M DS3H Micro-ATX Gaming Motherboard, AMD AM4, DDR4, PCIe 4.0, SATA3

Gigabyte B550M Micro ATX Gaming Motherboard

Experience high-performance gaming with the Gigabyte B550M DS3H Micro-ATX motherboard. Designed for AMD AM4 processors, it boasts DDR4 memory and PCIe 4.0 technology for lightning-fast speeds and smooth gameplay. Built with industry-leading Gigabyte technology, this micro ATX motherboard is perfect for serious gamers.

Specifications

Edition: B550M DS3H
Form Factor: MicroATX
CPU Socket: AM4
Chipset: AMD B550
Memory Type: DDR4
Memory Channel: Dual (2)
Memory Type (ECC): ECC/Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)

Memory Speed (Mhz)
DDR4 - 2133
DDR4 - 2400
DDR4 - 2667
DDR4 - 2933
DDR4 - 3200
DDR4 - 3333(OC)
DDR4 - 3600(OC)
DDR4 - 4000(OC)
DDR4 - 4400(OC)
DDR4 - 4600(OC)
DDR4 - 4733(OC)

Max. Memory Capacity: 128GB (4x32GB)
Audio: Realtek ALC887 7.1 HD Audio
Primary GPU Interface: PCIe 4.0 (x16)
NVIDIA SLI Support: N/A
AMD CrossFire Support: N/A
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: DVI-D, HDMI

Expansion Slots
1 x M.2, 22-42/60/80, PCIe Gen3/SATA
1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
1 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x4 Bandwidth)
1 x PCIe 4.0 x16

SATA Support: SATA3
Storage Mode Support: RAID 0, RAID 1, RAID 10

Internal I/O
1 x 24-pin (Power)
2 x 4-pin CHA_FAN connector
1 x 4-pin CPU Fan Connector
1 x 8-pin (Power)
2 x Addressable Digital RGB Header
1 x Clear CMOS jumper
1 x Front Panel Audio Header
1 x Front Panel Connector
1 x Q-Flash Plus Button
1 x RGB LED connector
4 x SATA III - 6Gb/s
1 x Serial (COM) Header
1 x TPM Header
1 x USB 2.0 Header
1 x USB 3.2 Gen1 Header

Network Interface Type: Wired Gigabit LAN (10/100/1000)
Network Chip/Modules: 1 x Realtek (Gigabit LAN)

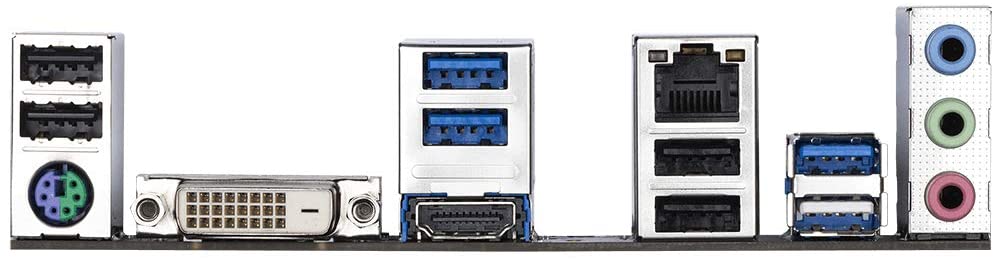

Rear I/O Connectors
1 x DVI-D
1 x HDMI
1 x Line In
1 x Line Out
1 x Mic-In
1 x PS/2 Keyboard/Mouse Combo
1 x RJ-45
4 x USB 2.0
4 x USB 3.2 Gen1 Type-A
