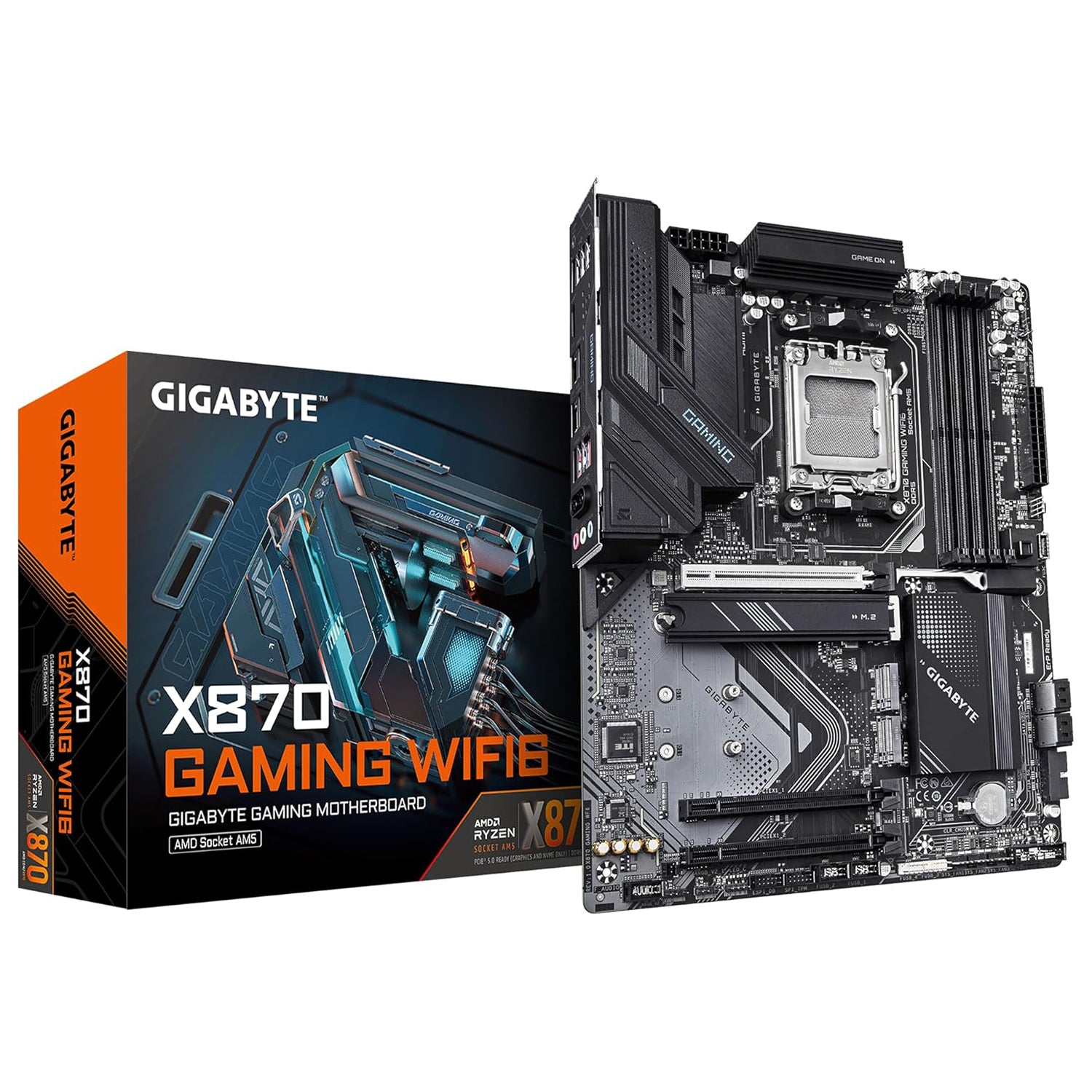

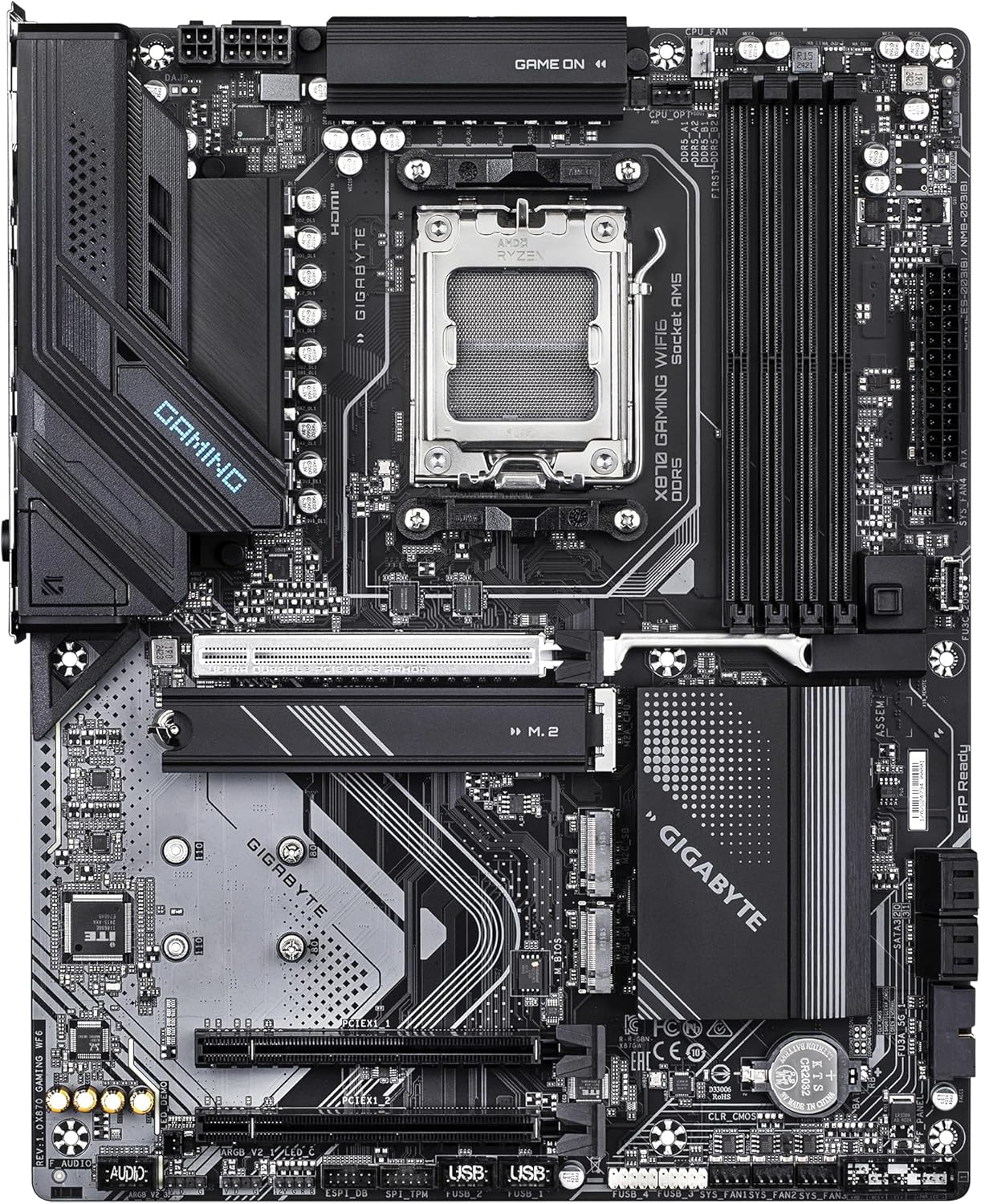

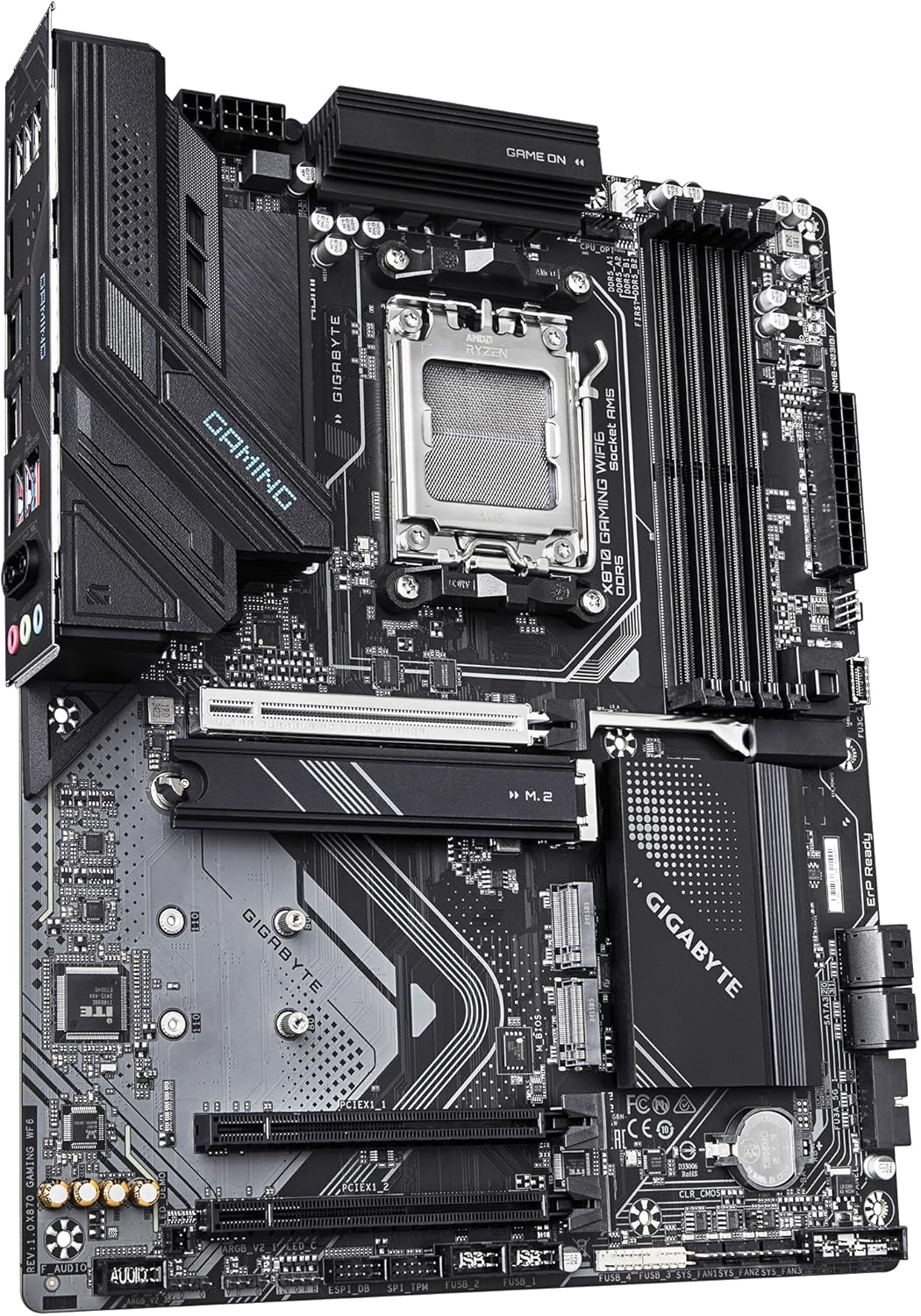

Gigabyte AMD X870 Gaming Motherboard ATX, WiFi 6, DDR5, AM5, PCIe 5.0, AMD EXPO
Gigabyte X870 ATX AMD Gaming Motherboard
Boost your gaming experience with the top-of-the-line Gigabyte AMD X870 Gaming Motherboard. With WiFi 6 technology, DDR5 memory, and AM5 processor support, this ATX motherboard delivers lightning-fast speeds and seamless gameplay. And with PCIe 5.0 compatibility and the powerful AMD EXPO chipset, you'll have everything you need for the ultimate gaming setup.
Specifications
Edition: X870 GAMING WIFI6
Form Factor: ATX
CPU Socket: AM5
Chipset: AMD X870
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz)
DDR5 - 4400
DDR5 - 4800
DDR5 - 5200
DDR5 - 5600(OC)
DDR5 - 6000(OC)
DDR5 - 6200(OC)
DDR5 - 6400(OC)
DDR5 - 6600(OC)
DDR5 - 6800(OC)
DDR5 - 7000(OC)
DDR5 - 7200(OC)
DDR5 - 7600(OC)
DDR5 - 7800(OC)
DDR5 - 8000(OC)
Max. Memory Capacity: 256GB
Audio: 7.1 Channel HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
On-Board Graphics Connectors: HDMI, USB 4.0
Expansion Slots
1 x M.2, 22-80, PCIe Gen4x2
1 x M.2, 22-80/110, PCIe Gen4x4
1 x M.2, 22-80/110, PCIe Gen5x4
2 x PCIe 3.0 x16 (x1 Bandwidth)
1 x PCIe 5.0 x16
4 x SATA 6GB/s
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5
Internal I/O
1 x 24-pin (Power)
1 x 4-pin (Power)
1 x 4-pin CPU Fan Connector
1 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Clear CMOS jumper
1 x CPU Water Pump/Fan Connector
1 x Front Panel Audio Header
1 x Front Panel Connector
3 x M.2 Connector
1 x RGB (RGBW) LED Strip Header
4 x SATA III - 6Gb/s
4 x System Fan header
1 x TPM 2.0 Header
4 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2x2 Connector
Network Interface Type
802.11ax Wi-Fi LAN
Wired 2.5 Gigabit LAN
Network Chip/Modules
1 x 802.11ax WiFi + BT5.2
1 x Realtek (2.5GbE LAN)

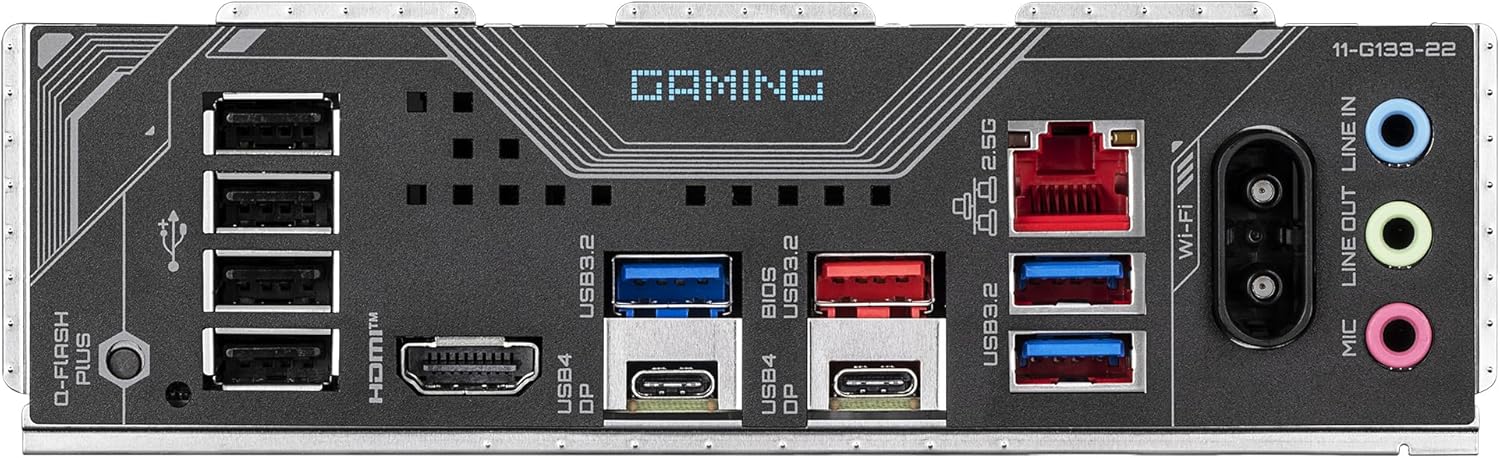

Rear I/O Connectors
1 x HDMI
1 x Line In
1 x Line Out
1 x Mic-In
1 x Q-Flash Plus Button
1 x RJ-45
4 x USB 2.0
3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
2 x USB 4.0 Type-C
2 x WiFi Antenna connectors
