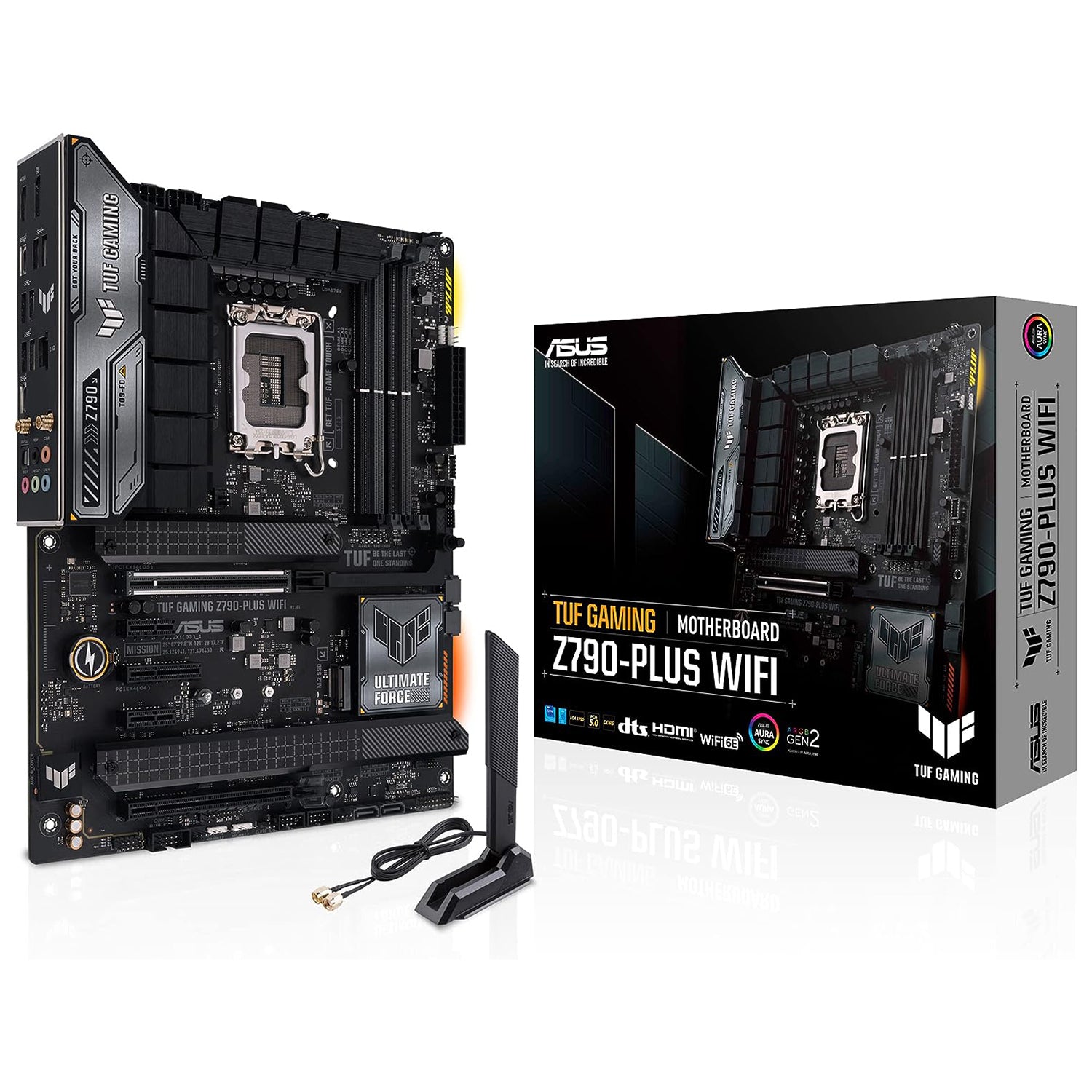

Asus Tuf Gaming Z790-Plus WiFi Motherboard

The Asus Tuf Gaming Z790-Plus WiFi motherboard is designed for optimal gaming performance. With the latest Intel Z790 chipset, LGA 1700 socket, and DDR5 memory support, it offers lightning-fast speeds and reliable connectivity. Equipped with Wi-Fi 6E, 2.5G LAN, PCIe5, RGB lighting, and M.2 storage, this ATX motherboard delivers an unmatched gaming experience.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: Intel 1700

Chipset: Intel Z790

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 7200(OC)

Maximum Memory: 128GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort

PCI/PCI Express
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

Wireless
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

LAN: 2.5GB LAN

Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
4 x USB 3.2 Gen1 Type-A
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2 1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide
