Asus Tuf Gaming X670E-Plus WiFi Motherboard, AMD X670, AM5, ATX, DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, M.2

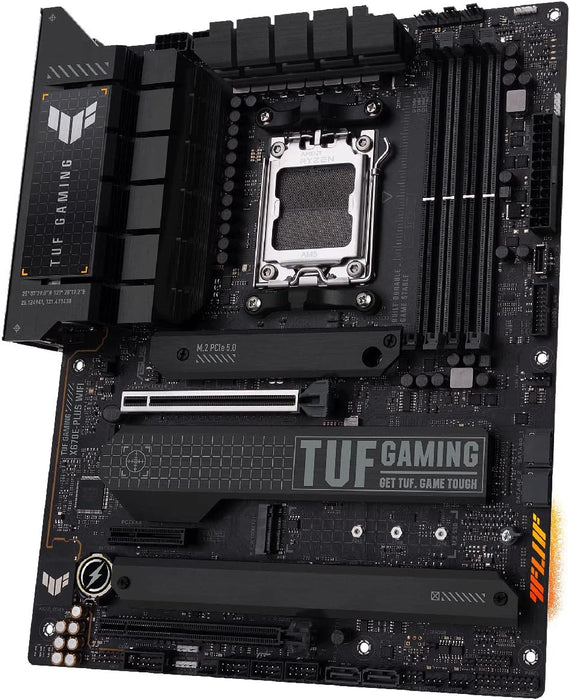

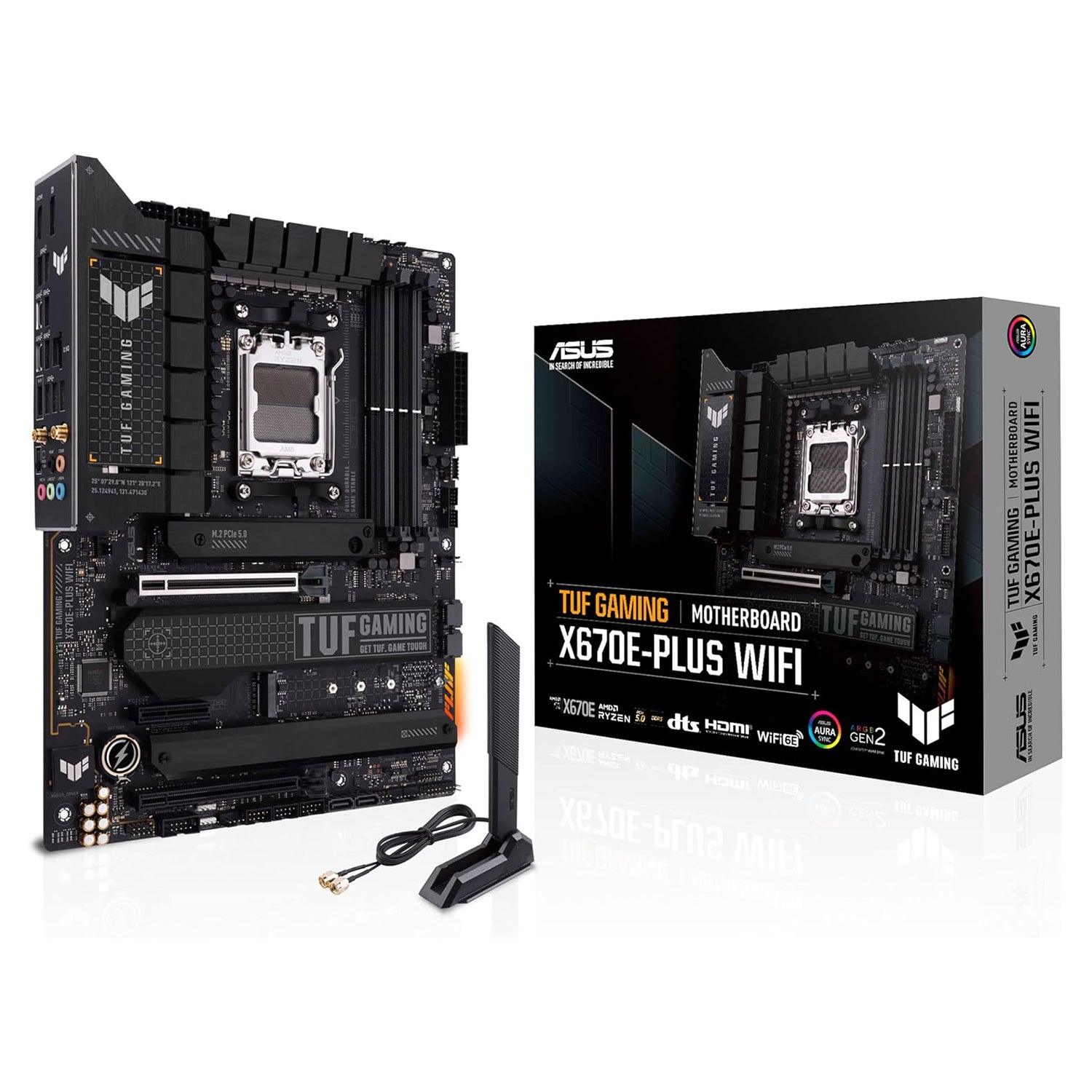

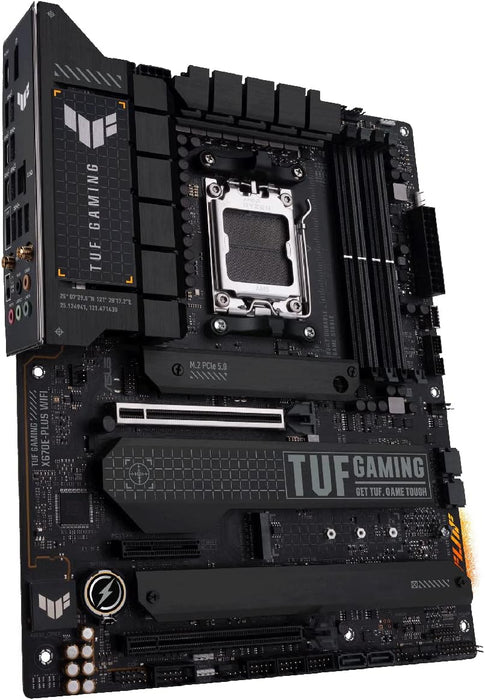

Asus Tuf Gaming X670E-Plus WiFi ATX Motherboard

This Asus Tuf Gaming X670E-Plus WiFi Motherboard is a high-performance ATX motherboard that is designed for the latest AMD processors. With DDR5 support and Wi-Fi 6E connectivity, this motherboard provides lightning-fast speeds for seamless gaming experiences. It also features PCIe5 and 2.5G LAN for enhanced networking capabilities.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD X670

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 6400+(OC)

Maximum Memory: 192GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort

PCI/PCI Express
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x4

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Wireless
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2

LAN: 2.5GB LAN

Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
3 x USB 3.2 Gen2 Type-A (at back)
7 x USB 3.2 Gen1 Type-A (5 at back, 2 at mid-board)
6 x USB 2.0 (at mid-board)
1 x Front USB 3.2 Gen2 Type-C connector

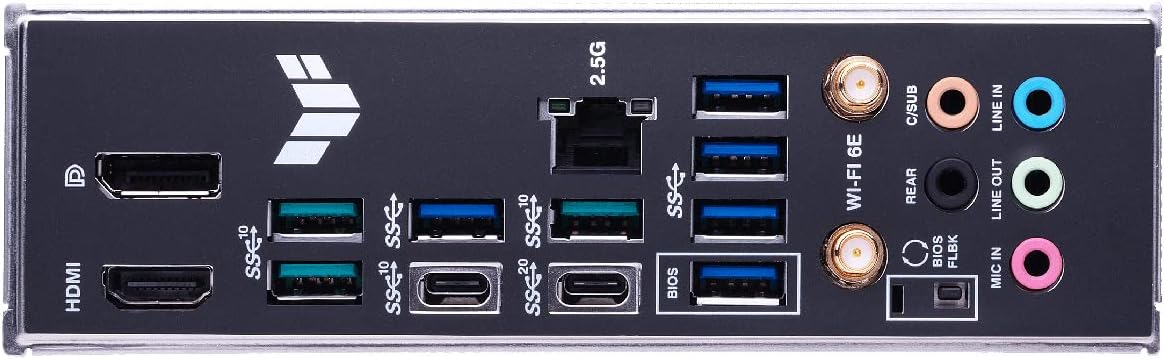

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
4 x USB 3.2 Gen2 (3 Type-A, 1 Type-C)
5 x USB 3.2 Gen1 Type-A
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
3 x USB 2.0 3 x Addressable Gen2
1 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt

Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
2 x Rubber packages for M.2
2 x Screw packages for M.2 SSD
1 x TUF certification card
1 x User guide
