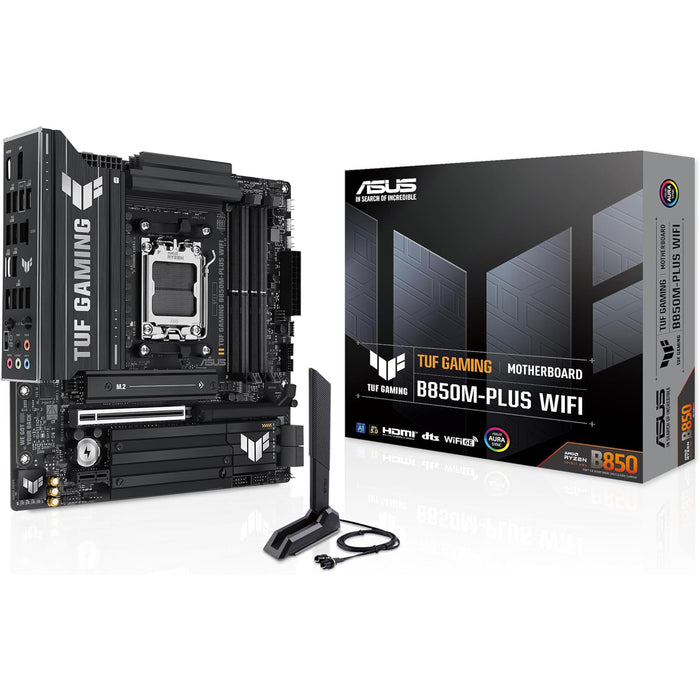

Asus Tuf Gaming B850M-Plus WiFi Motherboard for AI, AMD AM5, M-ATX, DDR5, Wi-Fi 6E

Asus Tuf Gaming B850M-Plus WiFi AI Motherboard

Upgrade your gaming experience with the Asus Tuf Gaming B850M-Plus WiFi Motherboard. Designed for AI and equipped with AMD B850 and AM5 support, this Micro ATX motherboard boasts fast DDR5 memory and Wi-Fi 6E connectivity. Enjoy lightning-fast speeds with 2.5G LAN and M.2 compatibility.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: AMD AM5

Chipset: AMD B850

RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC Un-buffered DIMM*
Supports AMD EXPO
ASUS AEMP

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots: 4 x DIMM

RAM Speeds: Up to 8000+MT/s (OC)

Maximum Memory: 256GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 1 x DisplayPort

PCI/PCI Express
Ryzen 9000 & 7000 Series CPUs: 1 x PCIe 5.0 x16 (supports x16 mode)
Ryzen 8000 Series CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode)
AMD B850 Chipset: 1 x PCIe 4.0 x1

Storage
4 x SATA III, 3 x M.2
Ryzen 9000 & 7000 Series CPUs: M.2_1 (2280) - PCIe 5.0 x4, M.2_2 (2242/2260/2280) - PCIe 4.0 x4
Ryzen 8000 Series CPUs: M.2_1 (2280) - PCIe 4.0 x4, M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2
AMD B850 Chipset: M.2_3 (2280) - PCIe 4.0 x4

RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by Ryzen 9000 CPUs

Wireless
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

LAN: 2.5GB LAN

Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
3 x USB 2.0

Back Panel I/O Ports
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 10Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2 1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x 10-1 pin Front System Panel

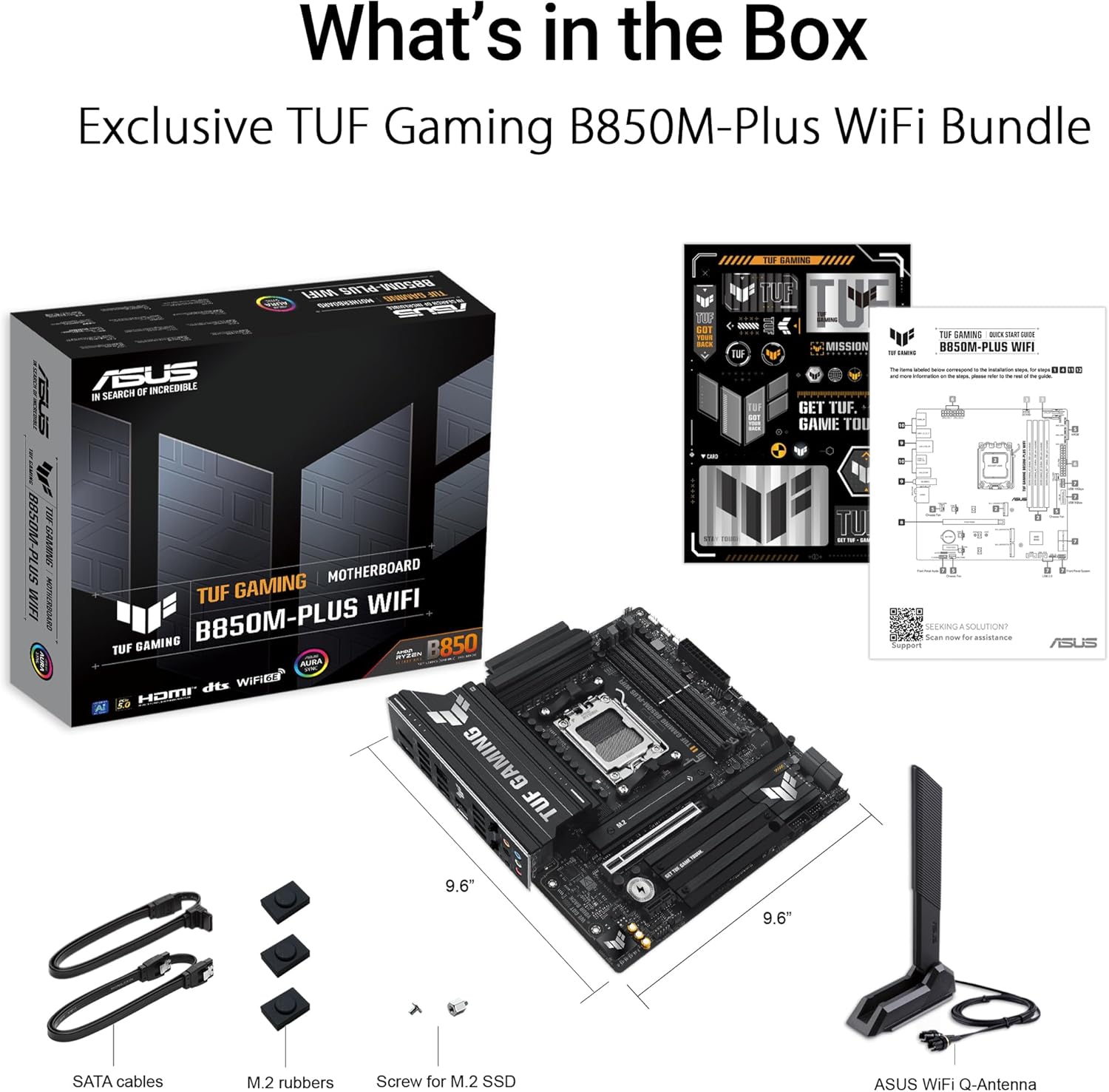

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x Quick start guide
