Asus Tuf Gaming B760M-BTF WiFi Motherboard, Intel B760, 1700, Micro ATX, 4 DDR5, Wi-Fi 6, 2.5G LAN, PCIe5, M.2 *Requires a BTF Compatible Chassis*

by ASUS
Sale Sale
Original price £259.99
Original price £259.99 - Original price £259.99
Original price £259.99
Current price £219.99
£219.99 - £219.99
Current price £219.99

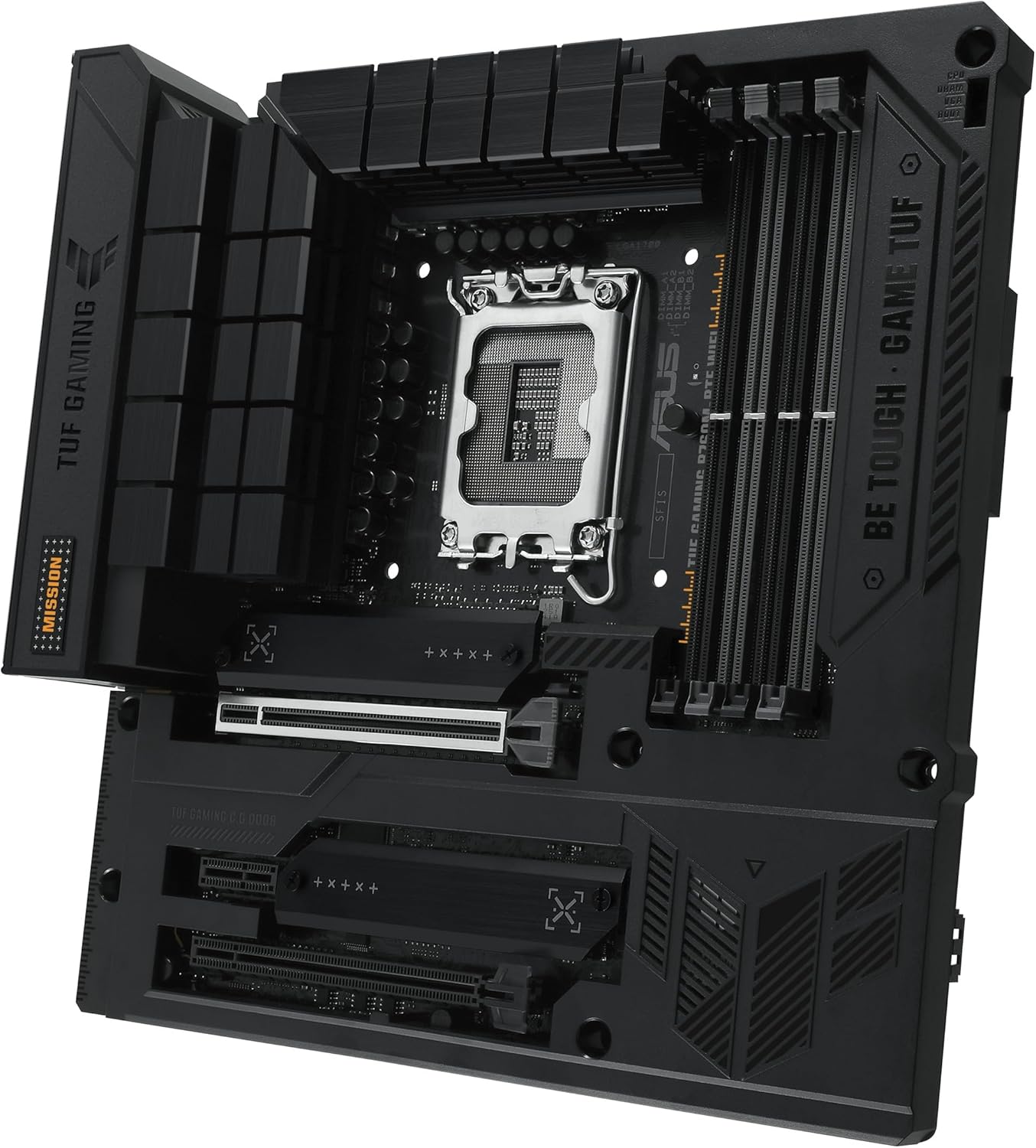

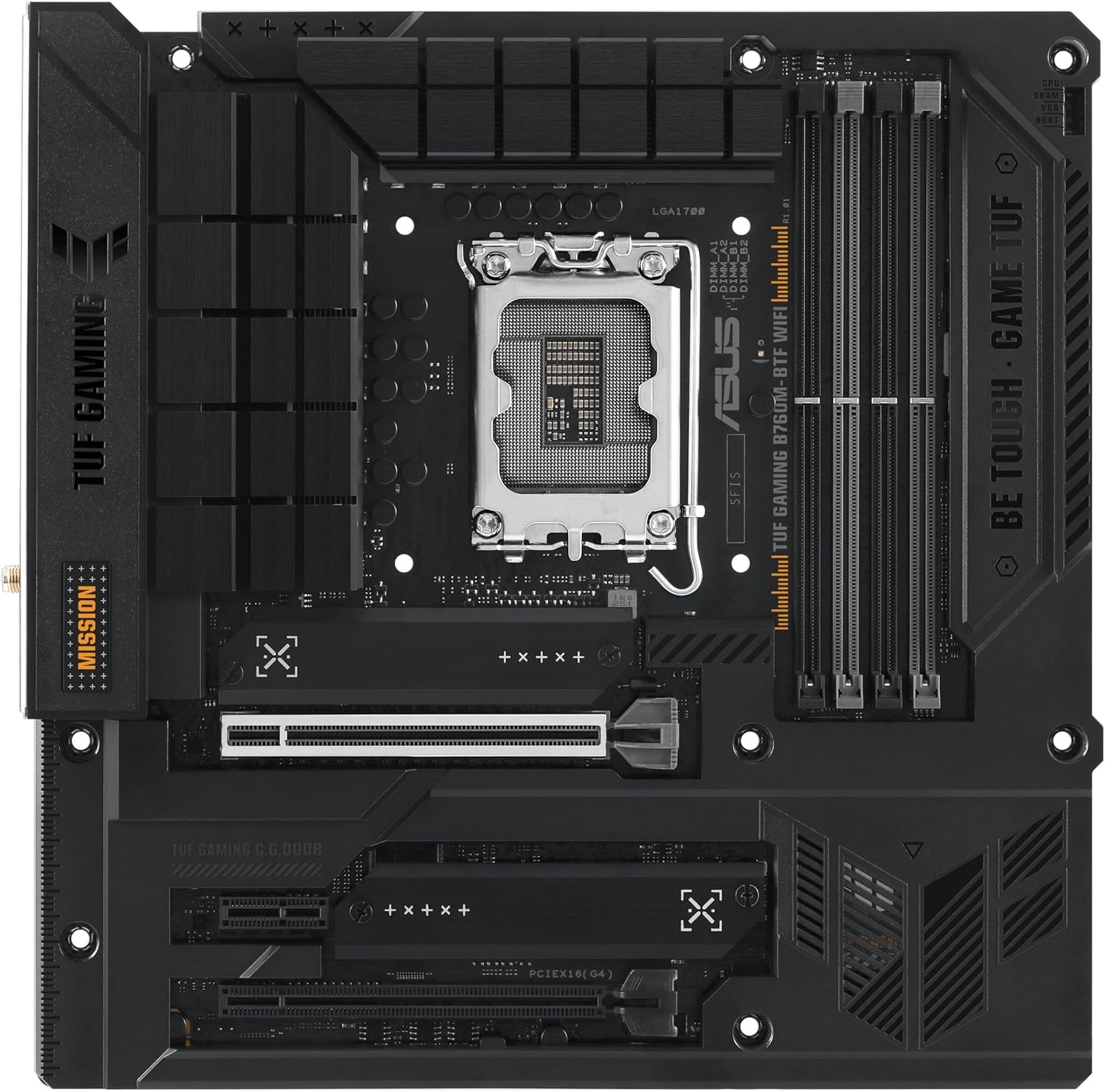

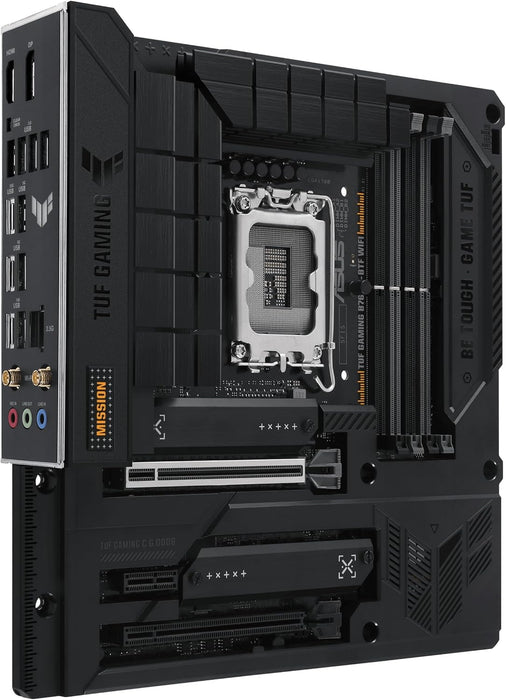

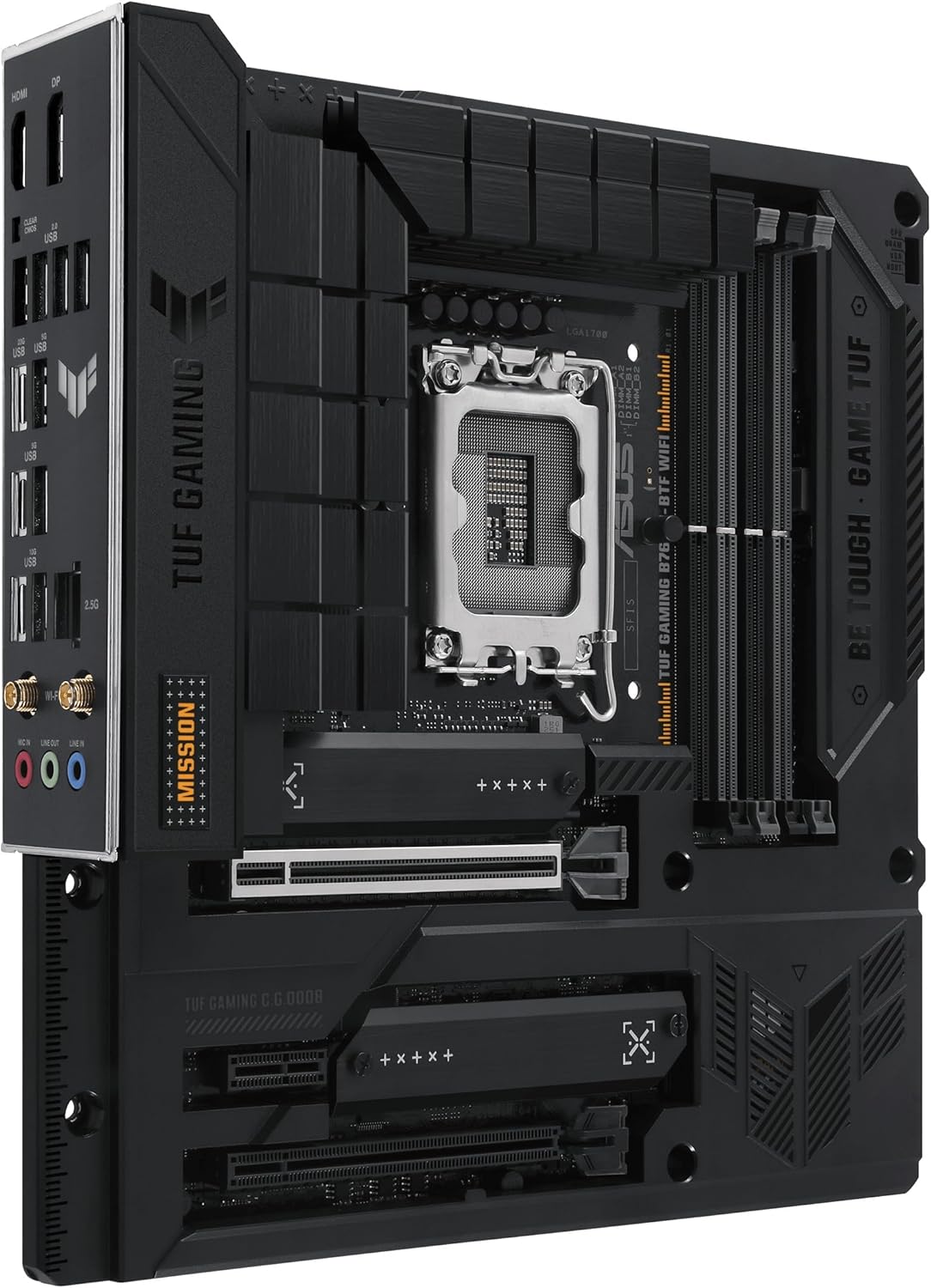

Asus Tuf Gaming B760M-BTF Motherboard

Boost your gaming experience with the Asus Tuf Gaming B760M-BTF WiFi Motherboard. Featuring Intel B760 and DDR5 technology, this Micro ATX motherboard delivers lightning-fast performance. With Wi-Fi 6 and 2.5G LAN, you can stay connected seamlessly. Pair it with a BTF Compatible Chassis for optimal compatibility.

*Requires a BTF Compatible Chassis

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1700

Chipset: Intel B760

RAM Technology
DDR5 (Dual Channel)
Supports Intel Extreme Memory Profile (XMP)
OptiMem II

RAM Slots: 4 x DIMM

RAM Speeds: Up to 7200(OC)

Maximum Memory: 192GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 1 x DisplayPort

PCI/PCI Express
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4

RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
4 x USB 2.0

Front:
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 (1 Type-A, 1 Type-C)
3 x USB 3.2 Gen1 (2 Type-A, 1 USB Type-C)
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x Clear CMOS button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 3 x Addressable Gen2
1 x Aura RGB
1 x COM Port
1 x Front Panel Audio
1 x 10-1 pin System Panel
1 x Thunderbolt (USB4)

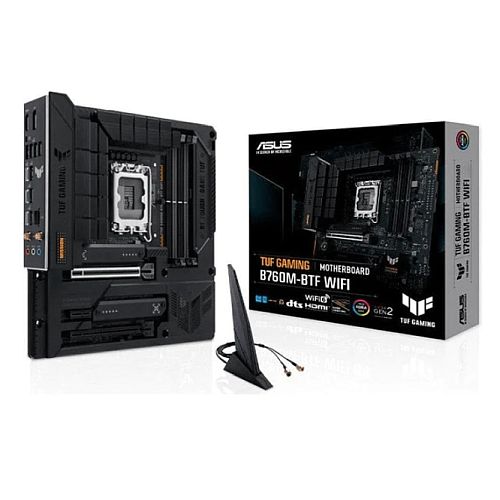

Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide

NOTE: This motherboard requires a chassis that is BTF compatible
