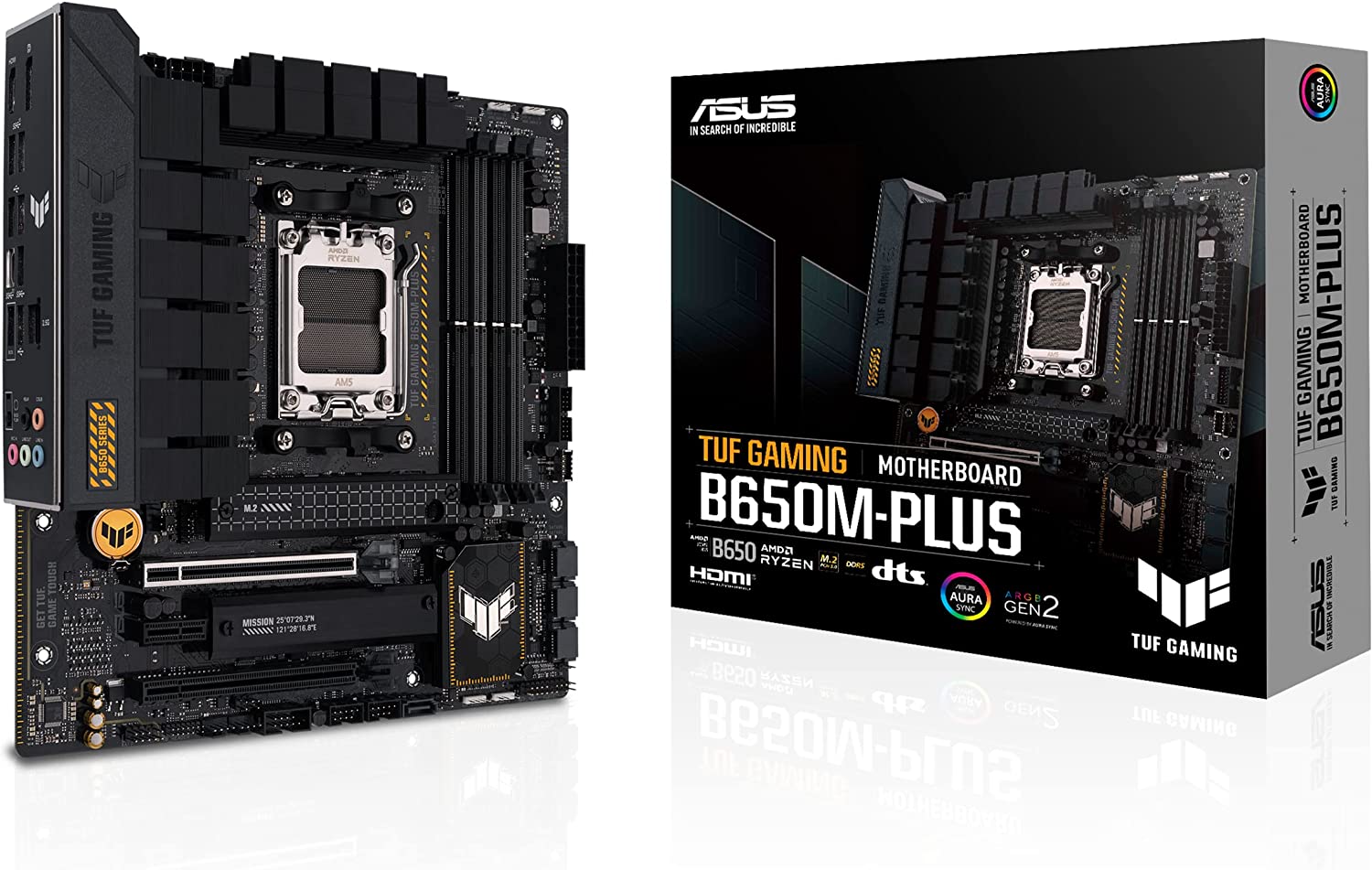

Asus Tuf Gaming B650M-PLUS Motherboard, AMD Ryzen B650, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

• 12+2 power stages (rated 60A) with enlarged VRM heatsinks
• PCIe 5.0 for graphics cards and M.2 storage
• DDR5 memory module support
• USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 1 Type-C® header
• 2.5 Gb Ethernet
• Two-Way AI Noise Cancelation

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: AMD AM5

Chipset: AMD B650

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 6400+(OC)

Maximum Memory: 128GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort

PCI/PCI Express
1 x PCIe 4.0/3.0 x16
1 x PCIe 4.0/3.0 x16 (supports x4 mode)
1 x PCIe 4.0/3.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID: AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Wireless: No

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
3 x USB 3.2 Gen1 Type-A (1 at back, 2 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front USB 3.2 Gen1 Type-C connector

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)
