Asus Rog Strix B650E-E Gaming WiFi, AMD B650, AM5, ATX, DDR5, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, M.2

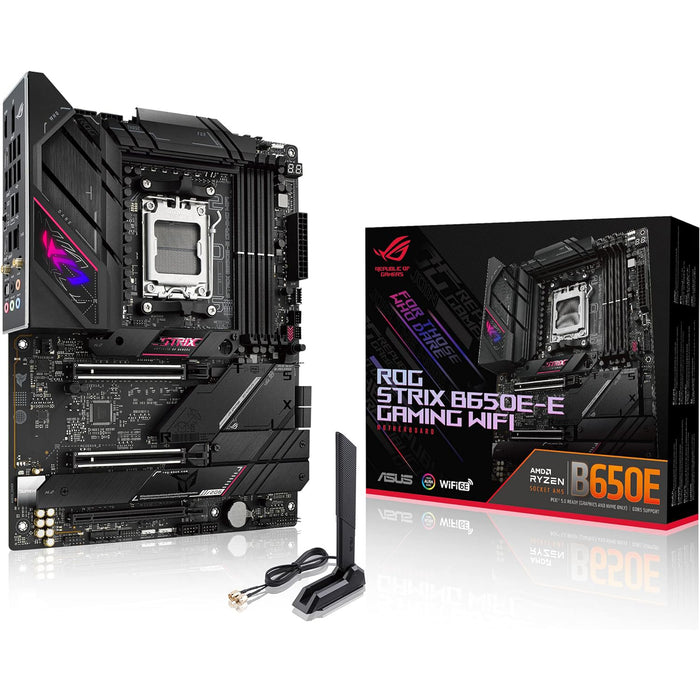

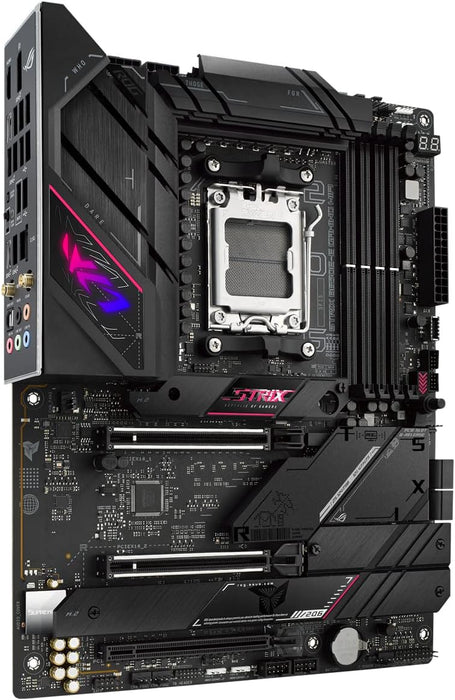

Asus Rog Strix B650E-E Gaming WiFi ATX Motherboard

The Asus Rog Strix B650E-E Gaming WiFi motherboard is expertly designed for high-performance gaming, powered by the latest AMD B650 and AM5 technology. With DDR5 memory, Wi-Fi 6E connectivity, and PCIe5 support, this ATX motherboard offers lightning-fast speeds and stunning RGB lighting. Level up your gaming experience with the Asus Rog Strix B650E-E.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD B650

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 6400+(OC)

Maximum Memory: 128GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort

PCI/PCI Express
2 x PCIe 5.0 x16 (supports x16 or x8/x4 modes)
1 x PCIe 4.0 x16 (supports x4 mode)

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10
RAID configuration is not supported on the 4 x SATA III

Wireless
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2

LAN: 2.5GB LAN

Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
6 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front USB 3.2 Gen2 Type-C connector

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
7 x USB 3.2 Gen2 (6 Type-A, 1 Type-C)
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
5 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2 1 x AURA RGB
1 x CPU Over Voltage jumper
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt

Accessories
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x User guide
