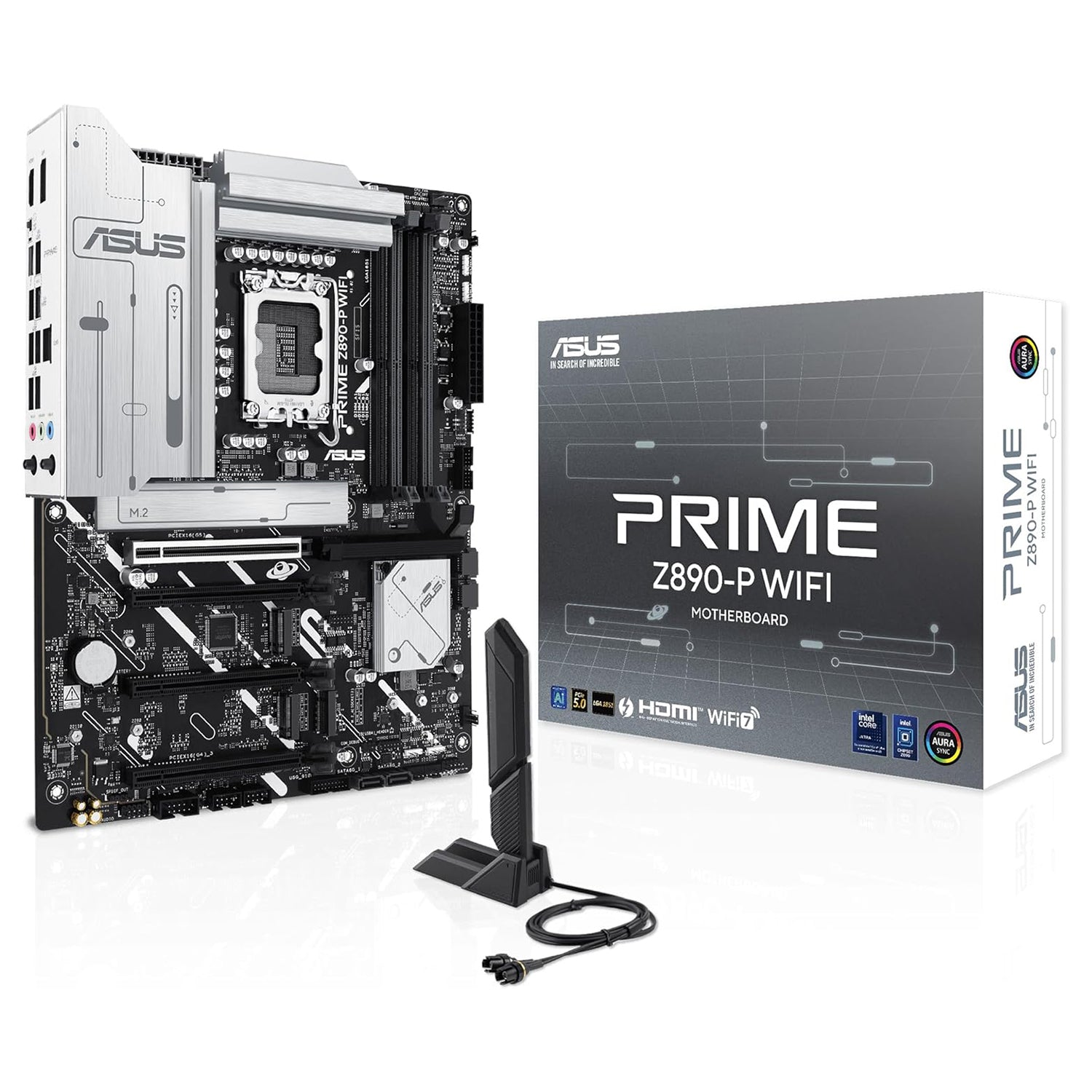

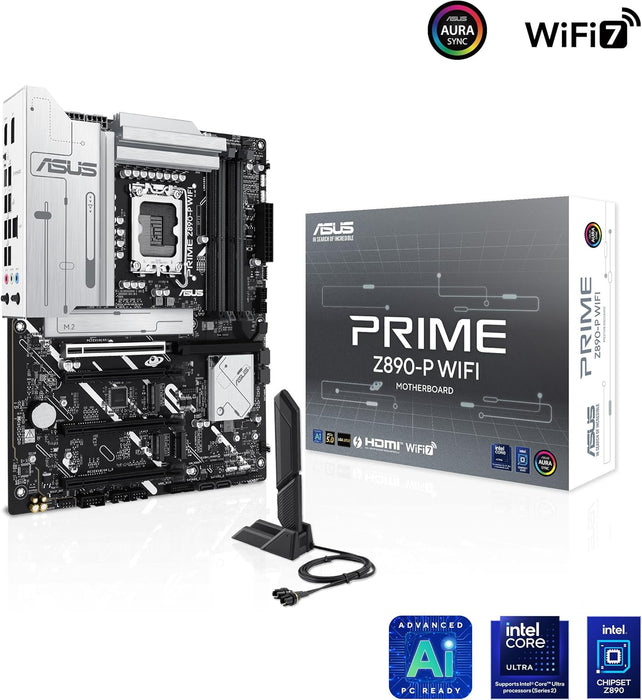

Asus Prime Z890-P WiFi Motherboard, Intel Z890, 1851, ATX, DDR5, HDMI, DP, TB4, Wi-Fi 7, 2.5G LAN, M.2

Asus Prime Z890-P WiFi Motherboard for AI

The Asus Prime Z890-P WiFi Motherboard boasts powerful features such as Intel Z890 chipset, DDR5 memory, and Wi-Fi 7 for lightning-fast data transfer. With a Socket 1851 and support for AI development, this ATX motherboard is perfect for Intel Core Ultra processors. Experience top-notch performance and connectivity with 2.5G LAN and M.2.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: Intel 1851

Chipset: Intel Z890

CPU Support: Support Intel Core Ultra Processors (Series 2)

RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Supports Intel XMP
Supports DIMM FIT
ASUS Enhanced Memory Profile III

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots: 4 x DIMM

RAM Speeds: Up to 8400+MT/s (OC)

Maximum Memory: 192GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort
1 x Intel Thunderbolt 4 (USB Type-C) supports DisplayPort and Thunderbolt video outputs

PCI/PCI Express
Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16

Intel Z890 Chipset:
2 x PCIe 4.0 x16 (support x4 mode)
1 x PCIe 4.0 x16 (supports x1 mode)

Storage
4 x SATA III
4 x M.2

Intel Core Ultra CPUs (Series 2):
M.2_1 (2280/22110) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 4.0 x4

Intel Z890 Chipset:
M.2_3 (2280/22110) - PCIe 4.0 x4
M.2_4 (2242/2260/2280) - PCIe 4.0 x4 & SATA

RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
1 x Thunderbolt 4 Type-C
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 10Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

Back Panel I/O Ports
1 x Thunderbolt 4 USB Type-C
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 10Gbps Type-C
2 x USB 5Gbps
2 x USB 2.0 3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 10-1 pin Front System Panel
1 x Thunderbolt (USB4)

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
1 x Quick start guide
