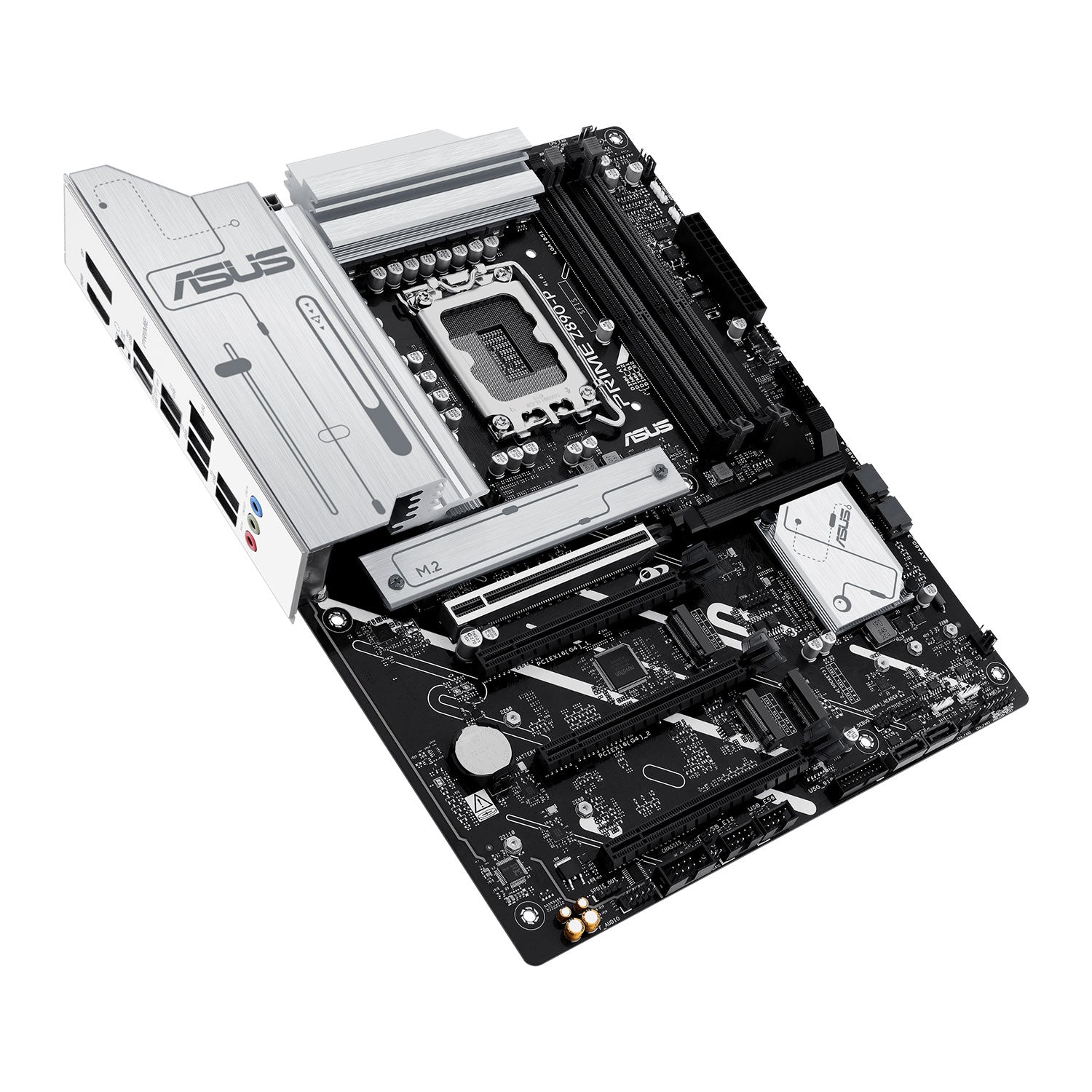

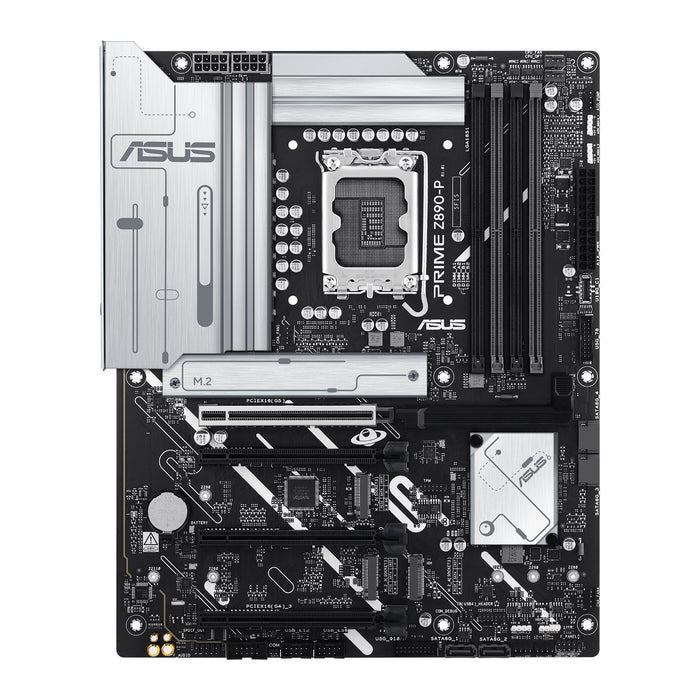

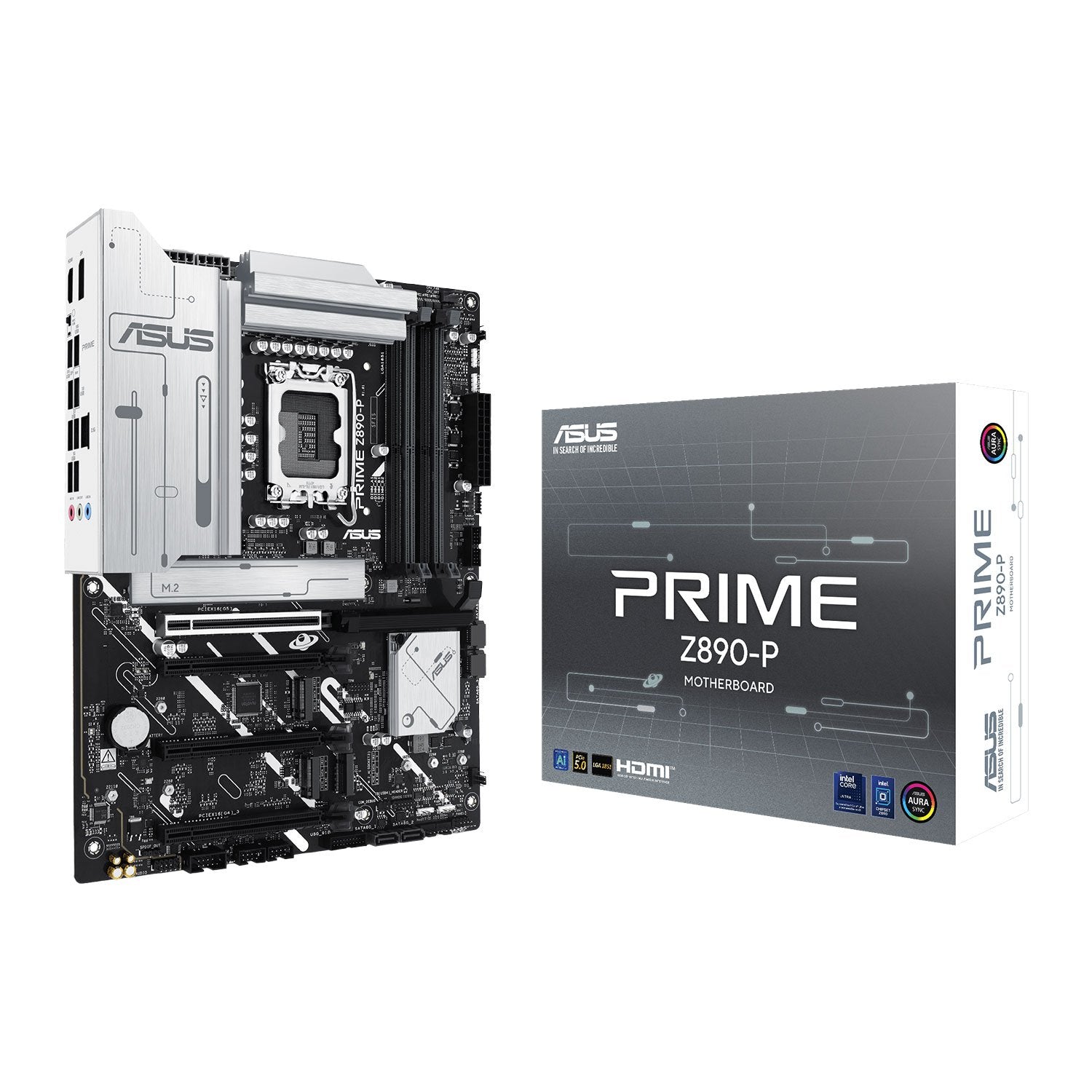

Asus PRIME Z890-P Motherboard for AI Develop, Intel Z890, 1851, ATX, DDR5, HDMI, DP, 2.5G LAN, M.2
Asus Prime Z890-P Motherboard AI Powered
The Asus PRIME Z890-P Motherboard for AI is a high-end, advanced AI PC Ready motherboard that features an Intel Core Ultra processor and ATX socket 1851. With AI capabilities and built-in M.2, HDMI, and DP ports, this motherboard is perfect for creating your ultimate AI-powered machine.
Specifications
Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1851
Chipset: Intel Z890
CPU Support: Support Intel Core Ultra Processors (Series 2)
RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Supports Intel XMP
Supports DIMM FIT
ASUS Enhanced Memory Profile III
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
RAM Slots: 4 x DIMM
RAM Speeds: Up to 7600+MT/s (OC)
Maximum Memory: 192GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x DisplayPort
1 x USB 20Gbps Type-C supports DisplayPort video output
PCI/PCI Express
Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16
Intel Z890 Chipset:
2 x PCIe 4.0 x16 (support x4 mode)
1 x PCIe 4.0 x16 (supports x1 mode)
Storage
4 x SATA III
4 x M.2
Intel Core Ultra CPUs (Series 2):
M.2_1 (2280/22110) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 4.0 x4
Intel Z890 Chipset:
M.2_3 (2280/22110) - PCIe 4.0 x4
M.2_4 (2242/2260/2280) - PCIe 4.0 x4 & SATA
RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
Wireless: No
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear:
1 x USB 20Gbps Type-C with DP Alt mode
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0
Front:
1 x USB 10Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

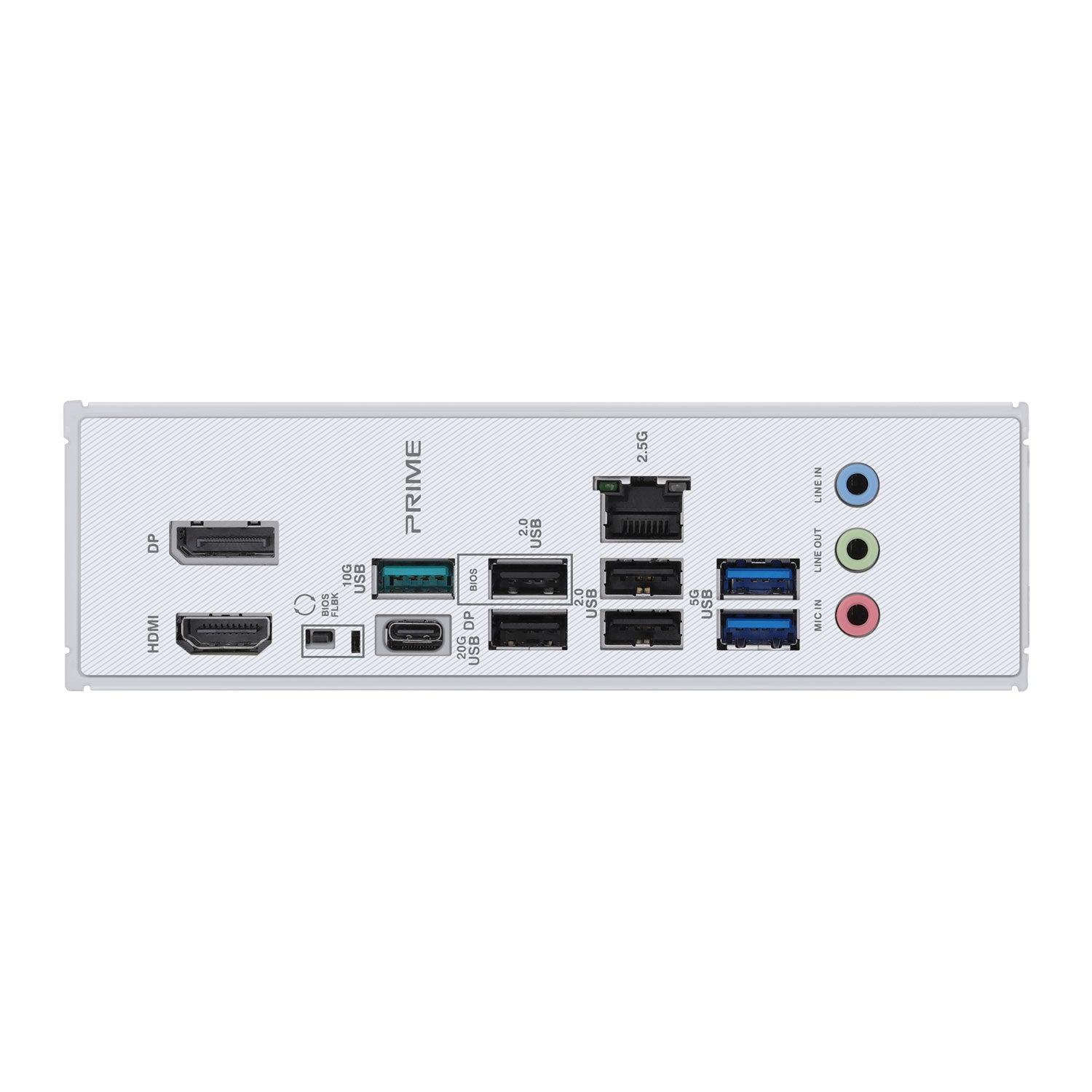

Back Panel I/O Ports
1 x USB 20Gbps Type-C with DP Alt mode
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 10Gbps Type-C
2 x USB 5Gbps
2 x USB 2.0 3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 10-1 pin Front System Panel
1 x Thunderbolt (USB4)
Accessories
2 x SATA 6Gb/s cables
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
1 x Quick start guide
