Asus Prime Z790-P Gaming Motherboard, Intel Z790, 1700, ATX, DDR5, HDMI, DP, 2.5G LAN, PCIe5, M.2
Asus Prime Z790-P Gaming Motherboard
The Asus Prime Z790-P Gaming Motherboard boasts top-of-the-line features for a superior gaming experience. With Intel Z790 and DDR5 technology, this ATX motherboard provides lightning-fast speeds and smooth performance. Its PCIe5 and M.2 capabilities further enhance speed and connectivity, while the 2.5G LAN ensures a reliable network connection. Level up your game with the Asus Prime Z790-P Gaming Motherboard.

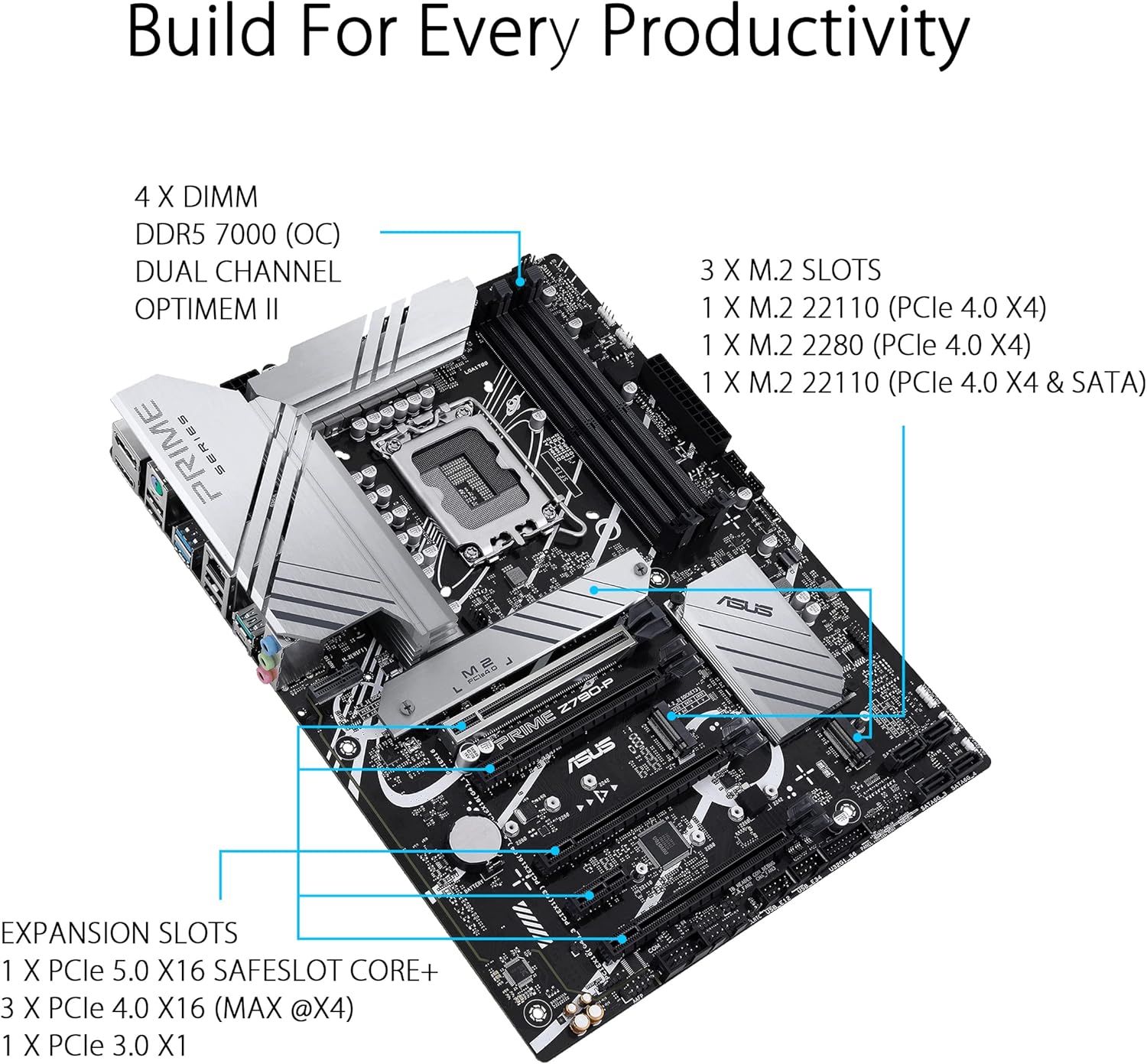

Specifications
Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 7200+(OC)
Maximum Memory: 192GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI, 1 x DisplayPort
PCI/PCI Express
1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 (support x4 mode)
1 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID: Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Wireless: No
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header
Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Vertical M.2 (Key E)
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0 3 x Addressable Gen2
2 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-5pin System Panel
1 x Thunderbolt (USB4)
Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x User guide
