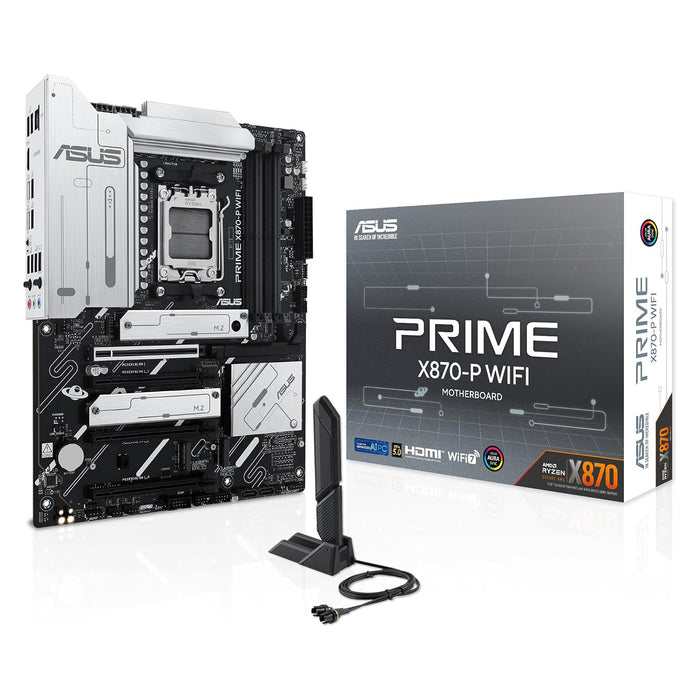

Asus Prime X870-P WiFi Gaming Motherboard, AMD X870, AM5, ATX, DDR5, HDMI, USB4, Wi-Fi 7, 2.5G LAN, M.2

Asus Prime X870-P WiFi Gaming Motherboard ATX

Experience the ultimate gaming performance with the Asus Prime X870-P WiFi Gaming Motherboard. With its powerful AMD X870 processor and DDR5 memory, you can expect lightning-fast speeds and smooth gameplay. Equipped with USB4 and Wi-Fi 7, you'll have no trouble connecting all your devices. Plus, the 2.5G LAN ensures stable and reliable network connections. Upgrade your gaming setup with the Asus Prime X870-P WiFi motherboard.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD X870

RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
ASUS Enhanced Memory Profile

RAM Slots: 4 x DIMM

RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs

Maximum Memory: 192GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs

PCI/PCI Express
Ryzen 9000 & 7000 CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)

Ryzen 8000 CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)

AMD X870 Chipset:
3 x PCIe 4.0 x16 (supports x1 mode)

Storage
2 x SATA III
4 x M.2

Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4

Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4

X870E Chipset:
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2280 ) - PCIe 4.0 x4
M.2_4 (2280 ) - PCIe 3.0 x2

RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

Back Panel I/O Ports
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
4 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 10Gbps USB Type-C
1 x USB 5Gbps
2 x USB 2.0 3 x Addressable Gen 2
1 x Clear CMOS
1 x COM Port header
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
