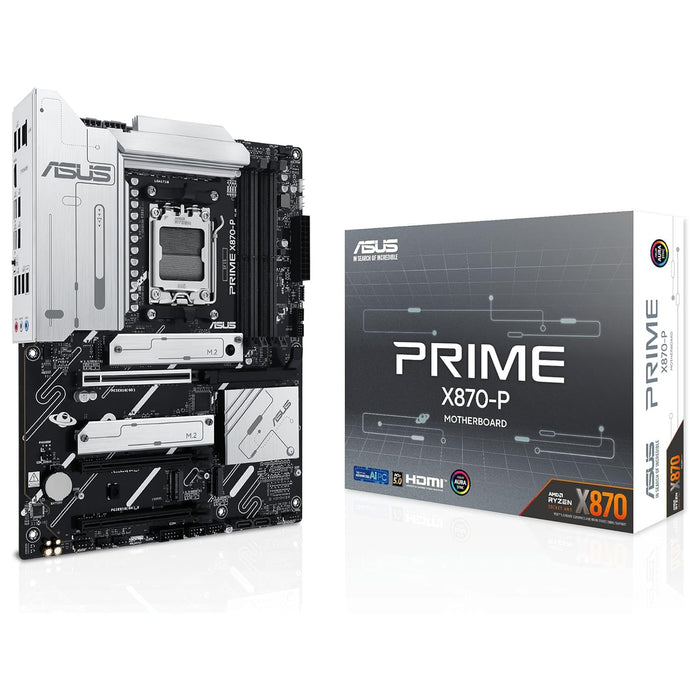

Asus Prime X870-P Gaming Motherboard, AMD X870, AM5, ATX, DDR5, HDMI, USB4, 2.5G LAN, M.2
Asus Prime X870-P Gaming Motherboard ATX
Unleash the full potential of your gaming experience with the Asus Prime X870-P Gaming Motherboard. Featuring AMD X870 and AM5 compatibility, DDR5 support, and USB4 connectivity, this ATX motherboard offers superior performance for hardcore gamers. With HDMI and 2.5G LAN, you can game with minimal lag or connectivity issues. Don't settle for less, upgrade to the Asus Prime X870-P now.
Specifications
Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM5
Chipset: AMD X870
RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
ASUS Enhanced Memory Profile
RAM Slots: 4 x DIMM
RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
Maximum Memory: 192GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs
PCI/PCI Express
Ryzen 9000 & 7000 CPUs:
1 x PCIe 5.0 x16 (supports x16 mode)
Ryzen 8000 CPUs:
1 x PCIe 4.0 x16 (supports x8/x4 mode)
AMD X870 Chipset:
2 x PCIe 4.0 x16 (supports x1 mode)
Storage
2 x SATA III
4 x M.2
Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4
Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4
X870E Chipset:
M.2_2 (2242/2260/2280) - PCIe 4.0 x4
M.2_3 (2280 ) - PCIe 4.0 x4
M.2_4 (2280 ) - PCIe 3.0 x2
RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
Wireless: No
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear:
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0
Back Panel I/O Ports
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
4 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 10Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0 3 x Addressable Gen 2
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
1 x Quick start guide
