Asus PRIME H610M-K D4 Motherboard, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

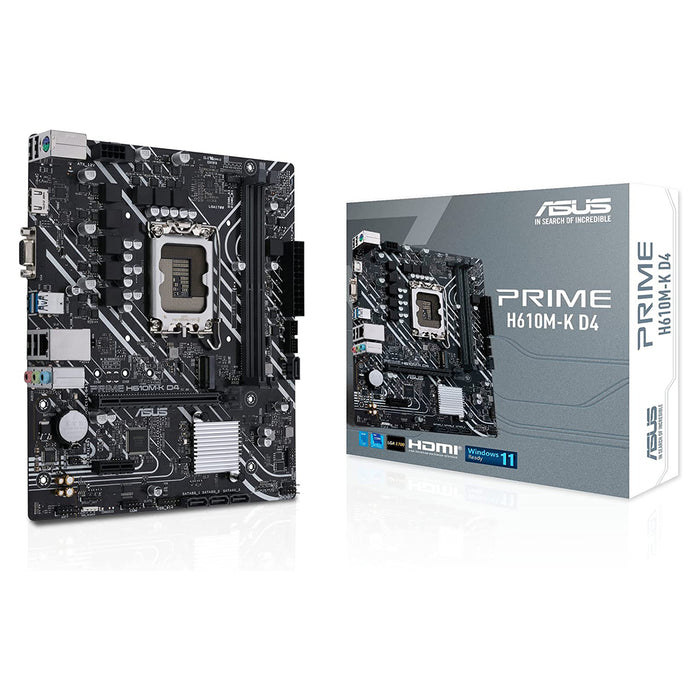

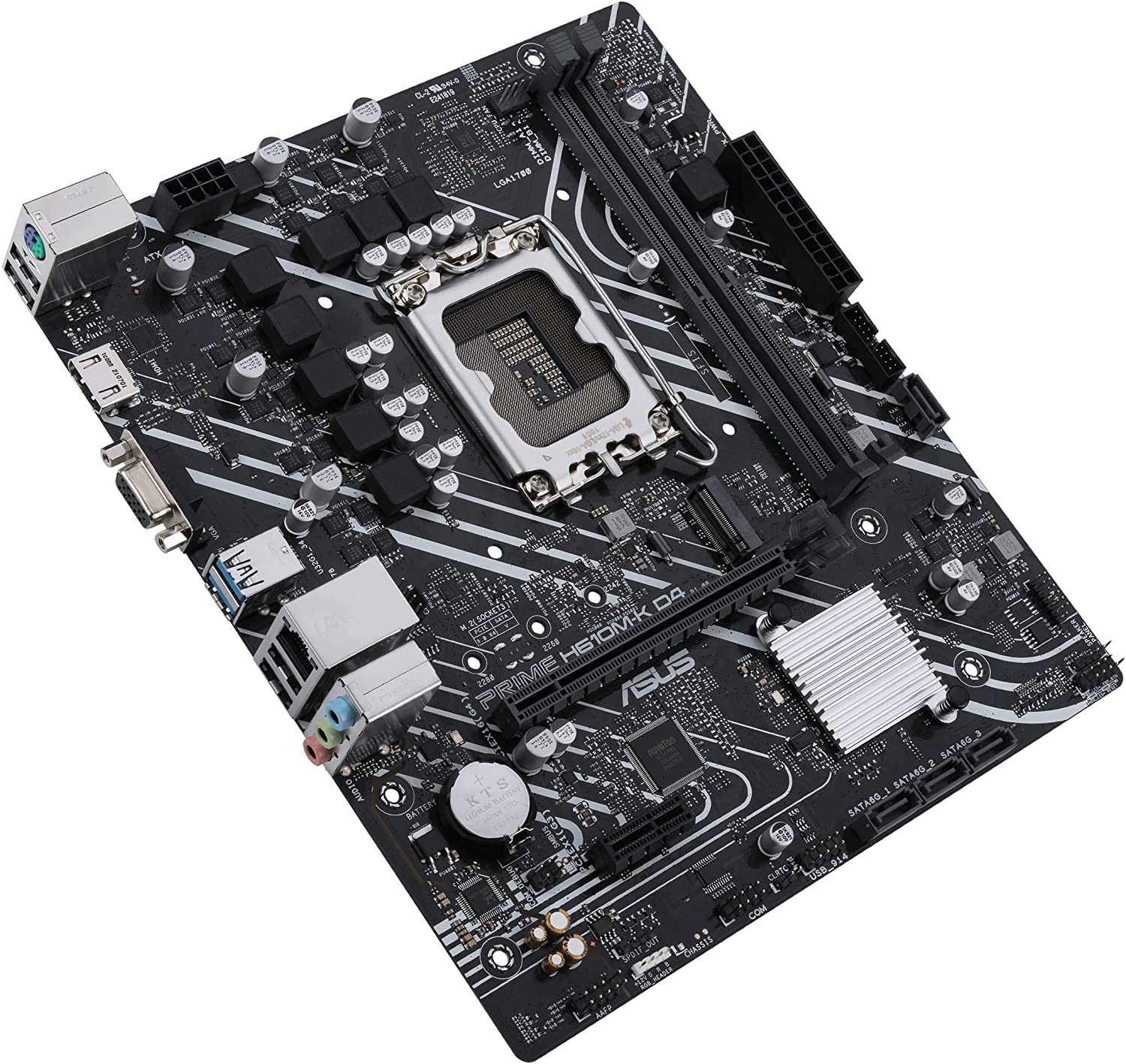

Asus Prime H610M-K D4 Motherboard

Asus PRIME H610M-K D4 Motherboard is a Micro ATX board with LGA 1700 socket, allowing for faster processing and higher memory speeds with its DDR4 compatibility. With PCIe4 and M.2 slots, this board offers a versatile and efficient computing experience.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1700

Chipset: Intel H610

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
1 x VGA
1 x HDMI

PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe

Wireless: -

LAN: GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)

Back Panel I/O Ports
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x D-Sub
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen1
1 x USB 2.0
1 x RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio 1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 ANCHOR
1 x Support DVD
1 x User guide
