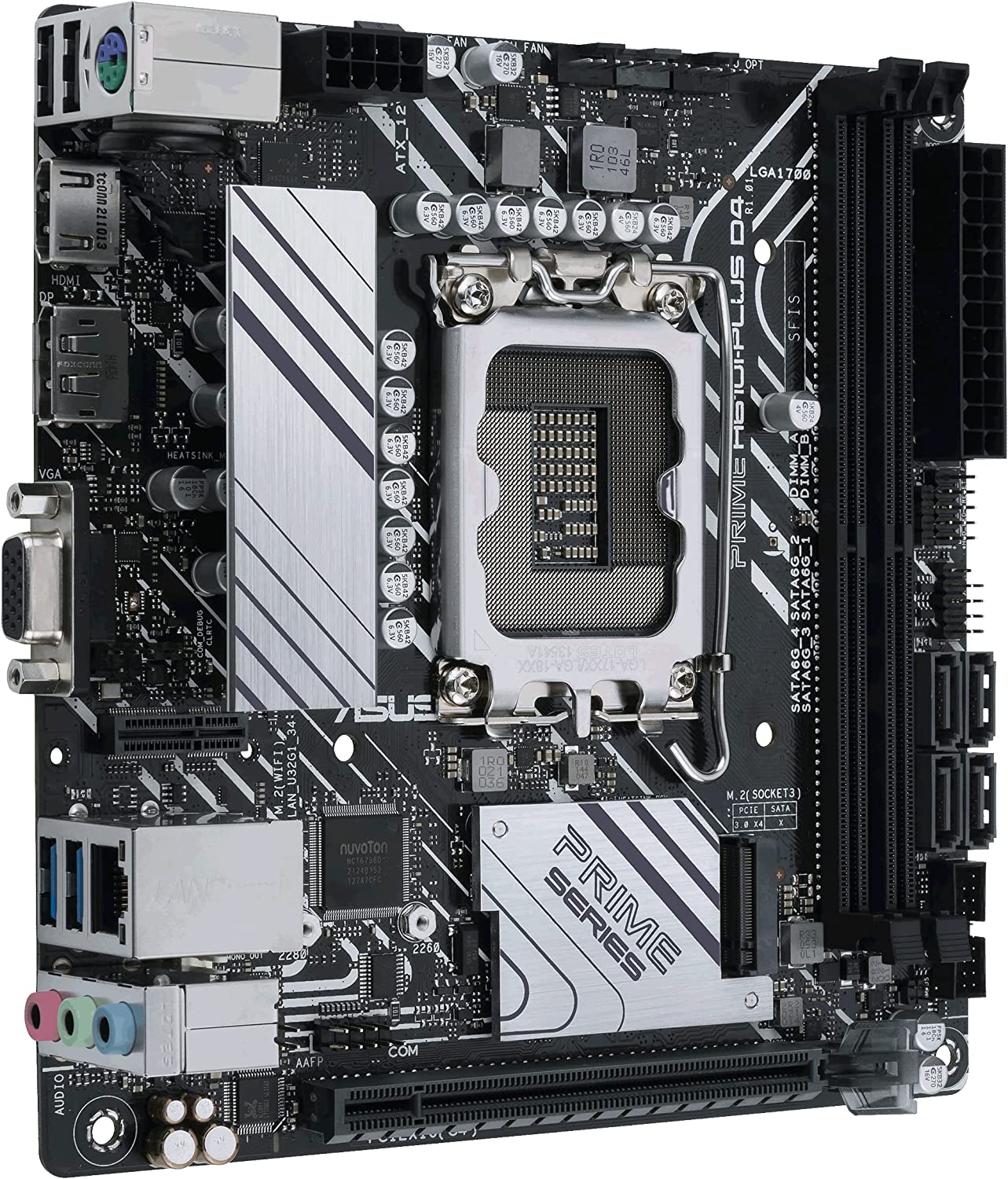

Asus Prime H610I Plus D4 Mini ITX Motherboard, Intel H610 DDR4 Motherboard

Asus Prime H610I Plus D4 CSM Mini ITX Motherboard Corporate Stable Model, Intel H610, 1700, Mini ITX, 2 DDR4, VGA, HDMI, DP, 1x M.2

by ASUS
£139.99 - £139.99
£139.99
£139.99 - £139.99
£139.99
Intel H610 (LGA 1700) Mini-ITX motherboard with DDR4 3200, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, Mono-out header with Amp IC
  • Intel LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
  • Enhanced power solution: 5+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery
  • Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert
  • Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 ports.
  • 5X Protection III: Multiple hardware safeguards for all-around protection.


ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime H610 provides users and PC DIY builders with a range of performance tuning options via intuitive software and firmware features.

Specifications

Motherboard Type: Desktop

Form Factor: Mini ITX

Socket: Intel 1700

Chipset: Intel H610

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

  • 1 x VGA
  • 1 x HDMI
  • 1 x DisplayPort

Multi-GPU Support: N/A

PCI/PCI Express: 1 x PCIe 4.0 x16

Storage
4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe

LAN: GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)

Back Panel I/O Ports

  • 2 x USB 3.2 Gen1 (Type-A)
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x V-M.2 (Key E)
  • 1 x Realtek 1Gb Ethernet
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

  • 1 x 4-pin CPU Fan
  • 1 x 4-pin CPU OPT Fan
  • 1 x 4-pin Chassis Fan
  • 1 x 24-pin Main
  • 1 x 8-pin +12V
  • 1 x M.2 (Key M)
  • 4 x SATA 6Gb/s
  • 1 x USB 3.2 Gen1
  • 1 x USB 2.0
  • 1 x Clear CMOS
  • 1 x COM Port
  • 1 x Front Audio 1 x Mono-out (with Amp IC)
  • 1 x SMBUS
  • 1 x Speaker
  • 1 x SPI TPM (14-1pin)
  • 1 x 10-1 pin System Panel

Accessories

  • 2 x SATA 6Gb/s cables
  • 1 x I/O Shield
  • 1 x M.2 Screw Package
  • 1 x Vertical M.2 Key E bracket set
  • 1 x Support DVD
  • 1 x User guide
