Asus PRIME H510M-E R2.0 Gaming Motherboard, Intel H470, 1200, Micro ATX, DDR4, VGA, HDMI, DP, M.2

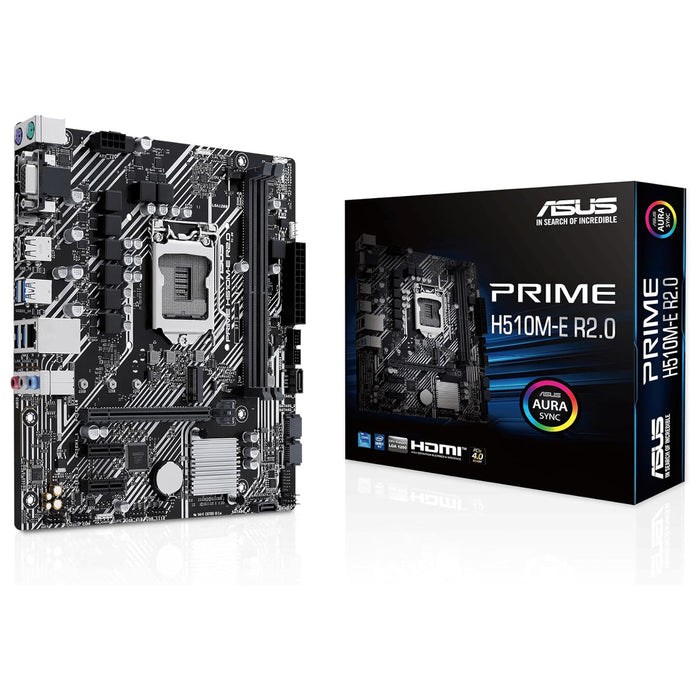

Asus Prime H510M-E R2.0 Gaming Motherboard

Unlock the full potential of your gaming experience with the Asus PRIME H510M-E R2.0 Gaming Motherboard. Featuring Intel H470 chipset, Micro ATX form factor, and DDR4 memory support, this board delivers ultimate performance. With VGA, HDMI, DP, and M.2 ports, you can connect to multiple displays and enjoy seamless graphics.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1200 - Rocket Lake

Chipset: Intel H470

RAM Technology
DDR4 (Dual Channel)
Supports Intel Extreme Memory Profile (XMP)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 3200(OC)

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x VGA, 1 x HDMI, 1 x DisplayPort

Multi-GPU Support: No

PCI/PCI Express
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4

Wireless: No

LAN: GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1
4 x USB 2.0

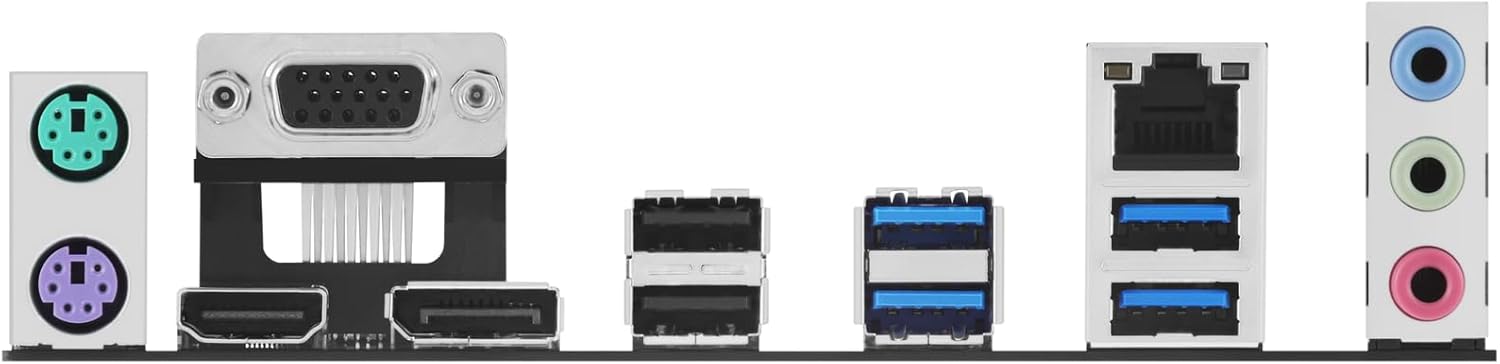

Back Panel I/O Ports
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x COM Port 1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x User guide
