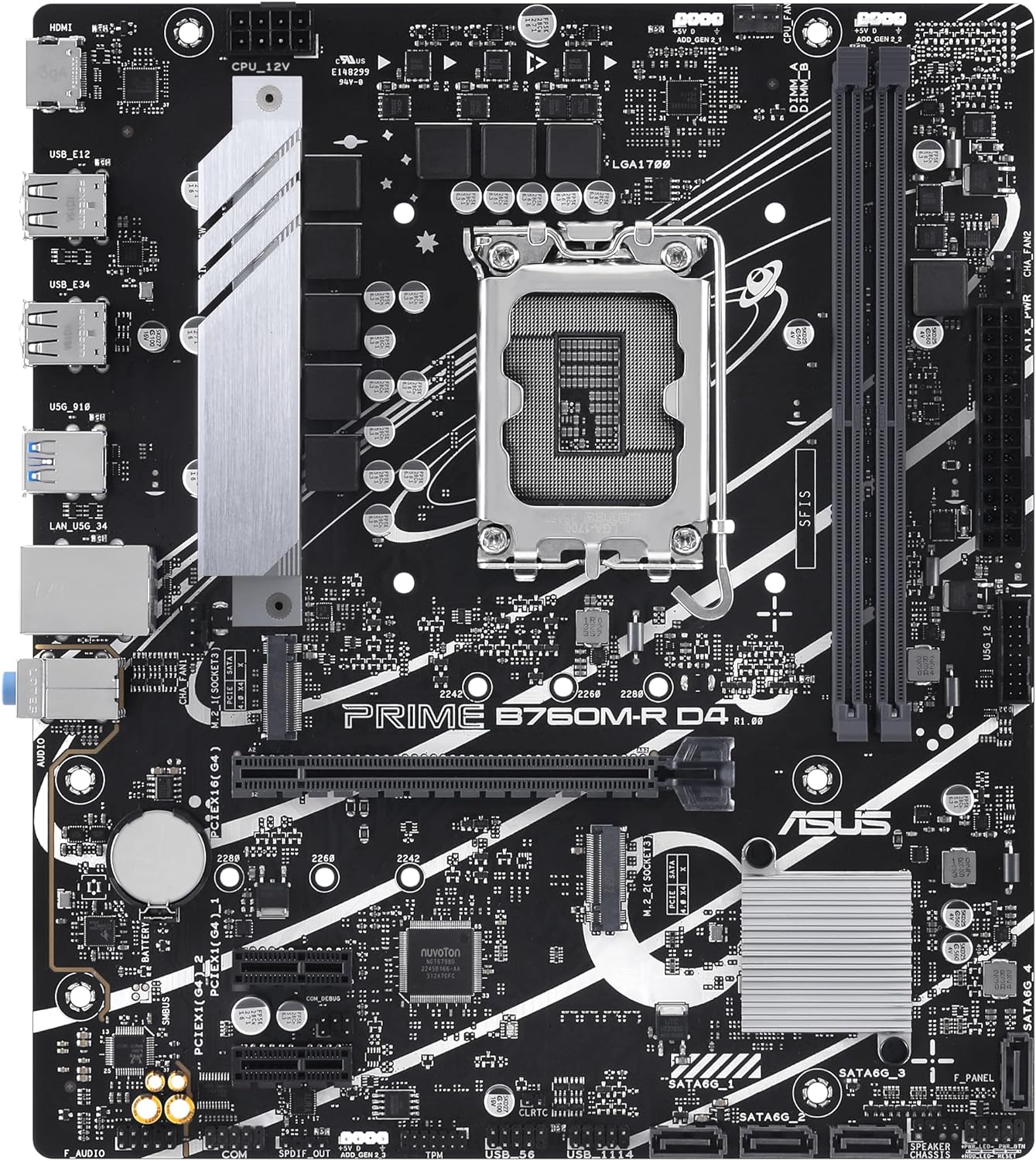

Asus Prime B760M-R D4 Gaming Motherboard, Intel B760, 1700, Micro ATX, DDR4, HDMI, 2.5G LAN, PCIe4, M.2

Asus Prime B760M-R Gaming Motherboard

Equipped with an Intel B760 processor and DDR4 RAM support, the Asus Prime B760M-R D4 Gaming Motherboard delivers a seamless gaming experience. Enjoy fast internet speeds with 2.5G LAN and speedy data transfer with PCIe4 and M.2 support. Upgrade your gaming rig with this versatile and powerful Micro ATX motherboard.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1700

Chipset: Intel B760

RAM Technology
DDR4 (Dual Channel)
Supports Intel Extreme Memory Profile (XMP)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 5333(OC)

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI

PCI/PCI Express
1 x PCIe 4.0 x16
2 x PCIe 4.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless: No

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
4 x USB 5Gbps Type-A
4 x USB 2.0

Front:
2 x USB 5Gbps
4 x USB 2.0

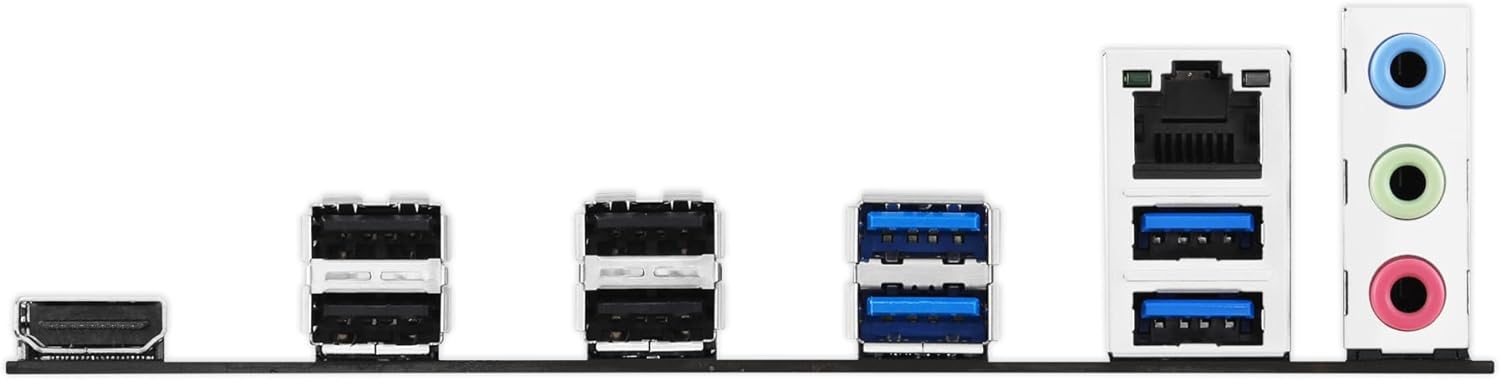

Back Panel I/O Ports
4 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks

Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Clear CMOS
1 x COM Port
1 x Front panel audio 1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories
2 x SATA 6Gb/s cables
1 x I/O shield
2 x M.2 anchors
1 x Quick start guide
