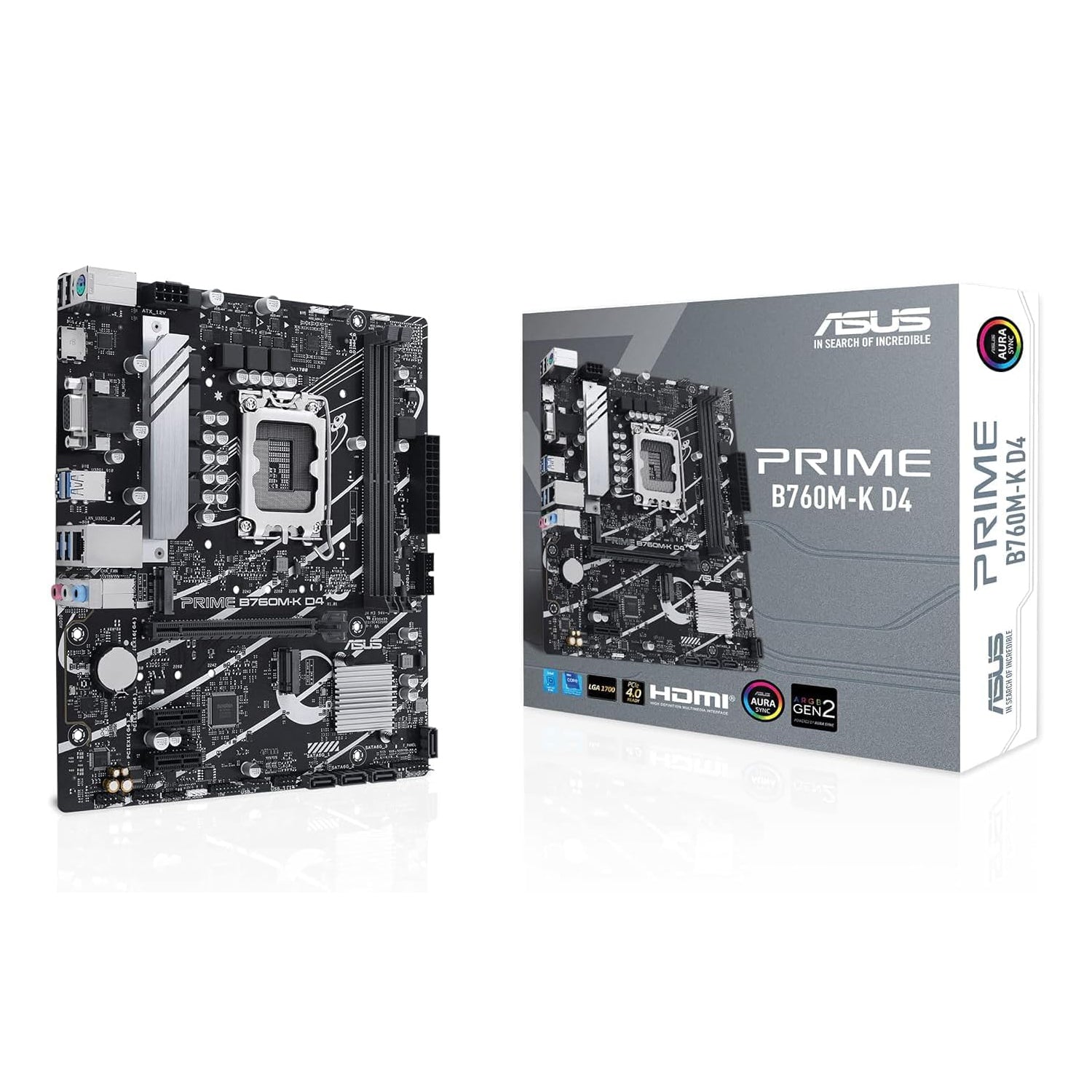

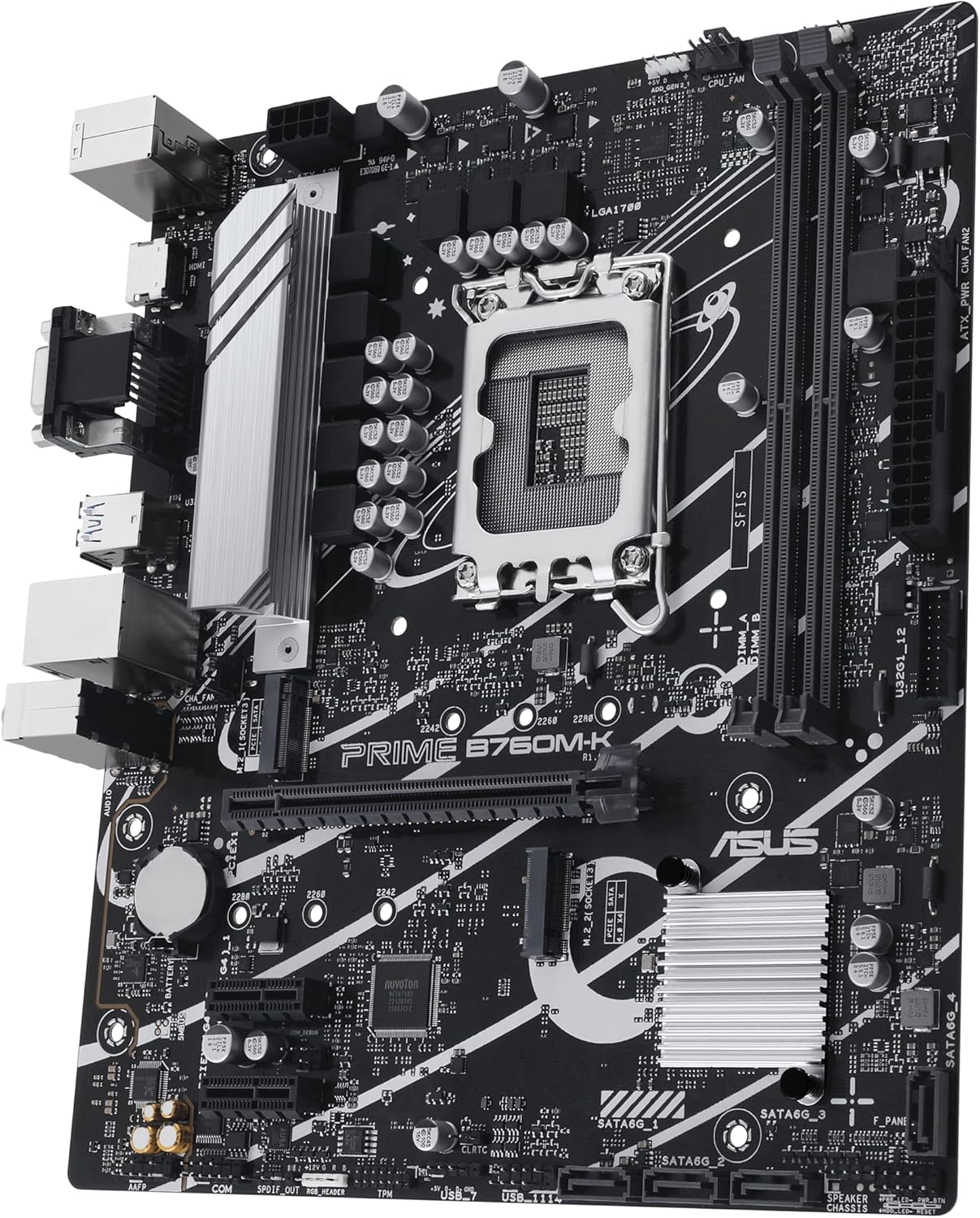

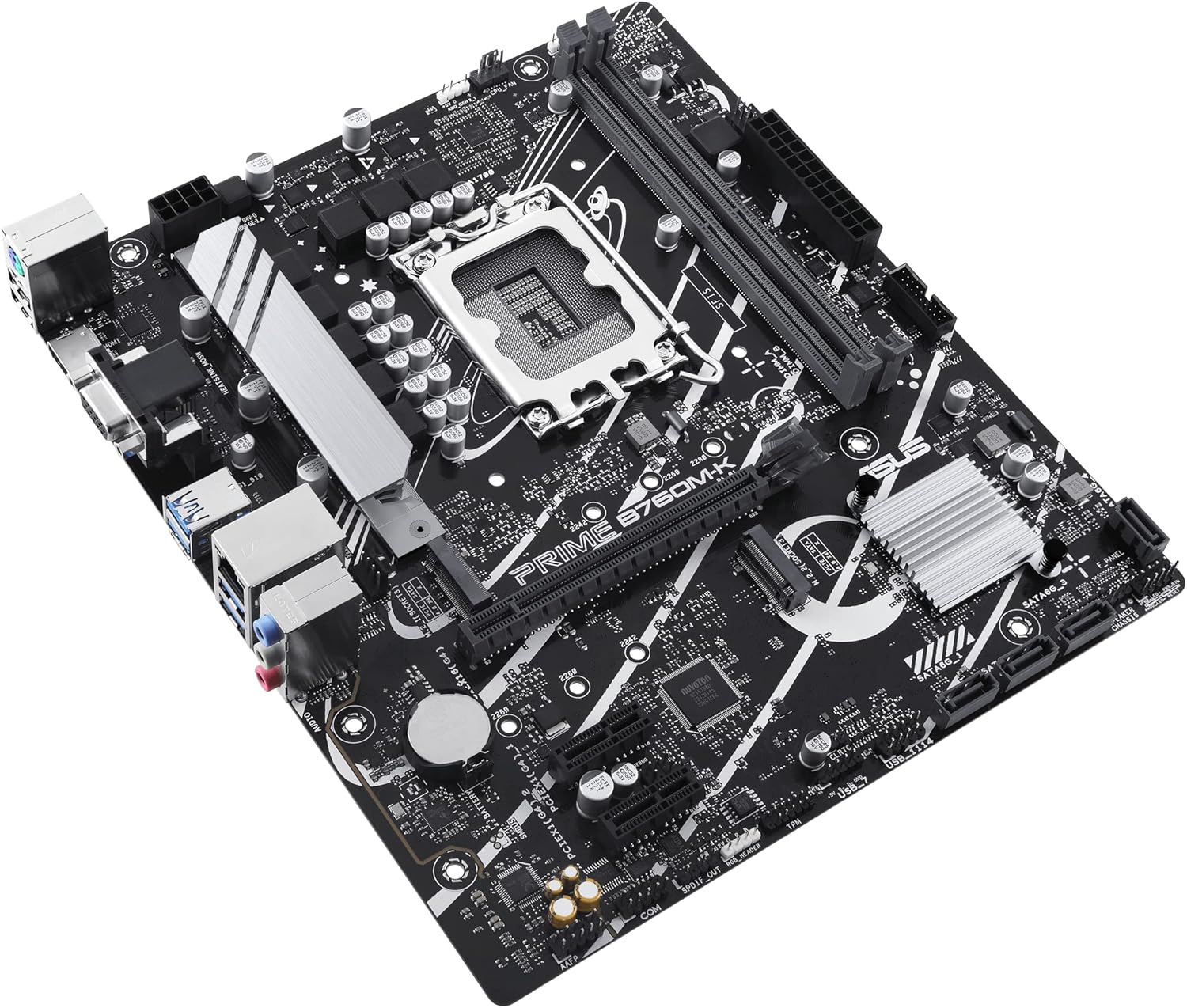

Asus Prime B760M-K Gaming Motherboard, Intel B760, 1700, Micro ATX, DDR5, 2.5G LAN, PCIe4, M.2

Asus Prime B760M-K Gaming Motherboard DDR5

The Asus Prime B760M-K Gaming Motherboard is the ultimate choice for serious gamers. This Micro ATX board features an Intel B760 chipset, 1700 processor and DDR5 memory for lightning-fast performance. With 2.5G LAN and PCIe4 support, you can experience seamless online gaming and high-speed data transfer. Plus, the M.2 slot allows for even more storage capacity. Upgrade your gaming experience with the Asus Prime B760M-K.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1700

Chipset: Intel B760

RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
Supports Intel Extreme Memory Profile (XMP)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 8000(OC)

Maximum Memory: 96GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x VGA, 1 x HDMI

PCI/PCI Express
1 x PCIe 4.0 x16
2 x PCIe 4.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless: No

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*

USB Ports Supported
Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1
3 x USB 2.0

Back Panel I/O Ports
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x VGA
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
2 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port 1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
2 x M.2 anchors
1 x User guide
