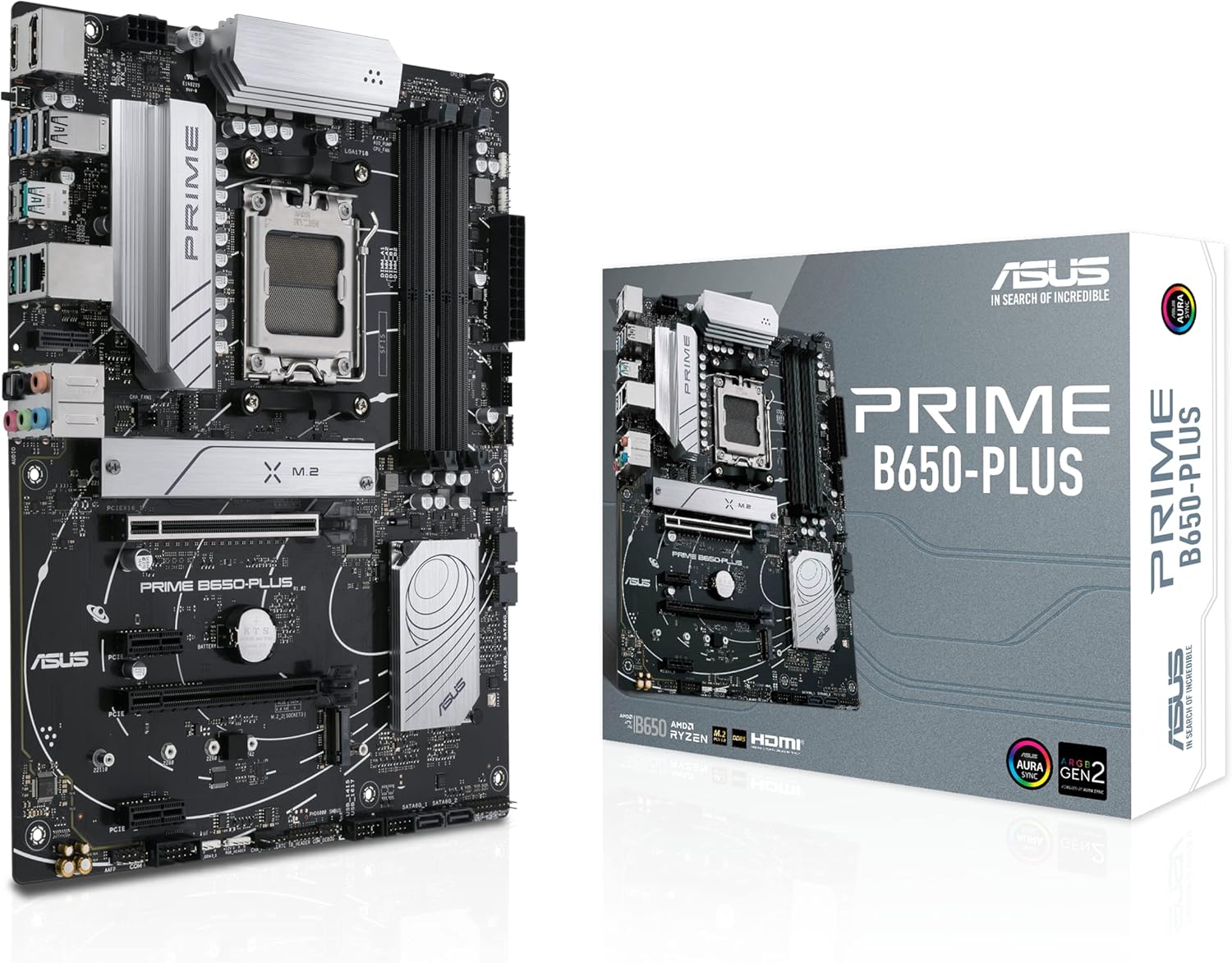

Asus Prime B650-Plus Gaming Motherboard, AMD B650, AM5, ATX, DDR5, 2.5G LAN, PCIe4

Asus Prime B650-Plus ATX Motherboard AMD

Get the ultimate gaming experience with Asus Prime B650-Plus Gaming Motherboard. Featuring the latest AMD B650 chipset, AM5 socket, and DDR5 memory support, this ATX motherboard delivers unmatched performance. Equipped with 2.5G LAN and PCIe4, it ensures lightning-fast data transfer and seamless connectivity.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD B650

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 6400+(OC)

Maximum Memory: 192GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 1 x DisplayPort

PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 4.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe

RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10

Wireless: No

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)
3 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x Front USB 3.2 Gen1 Type-C connector

Back Panel I/O Ports
4 x USB 3.2 Gen2 (3 Type-A, 1 Type-C)
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Vertical M.2
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2 1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide
