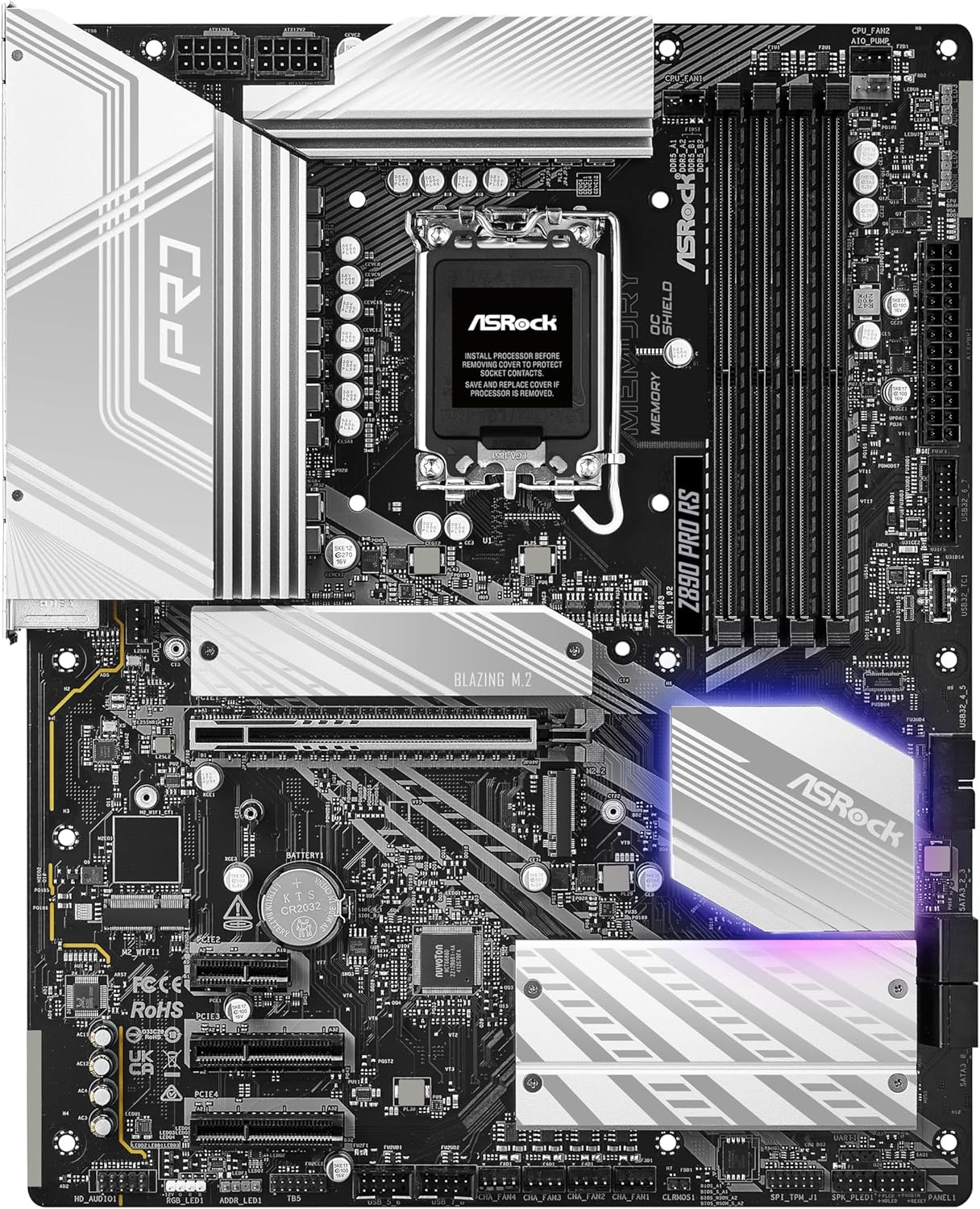

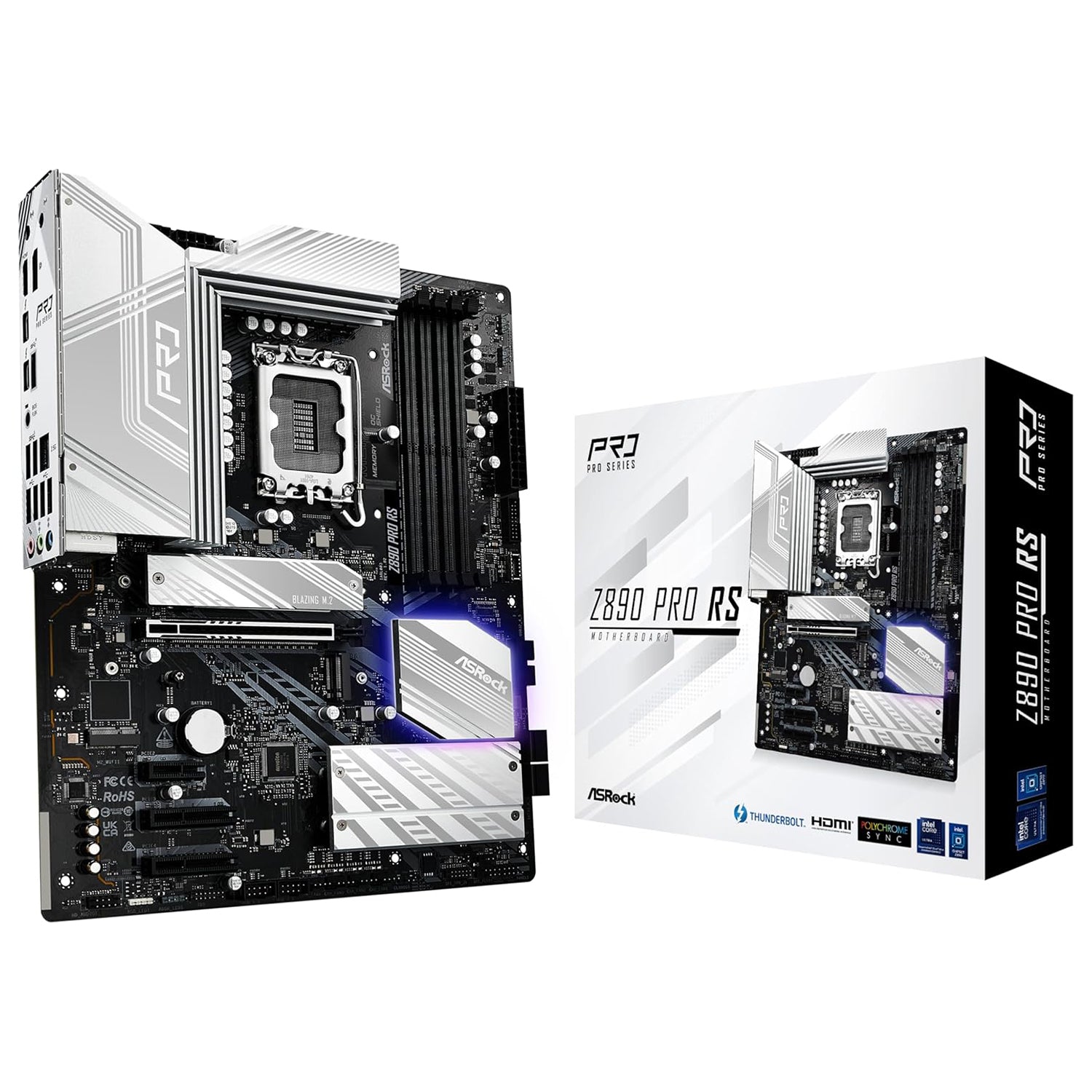

Asrock Z890 PRO RS Motherboard, Intel Z890, 1851, ATX, DDR5, HDMI, DP, TB4, 2.5G LAN, RGB, M.2
AsRock Z890 RPO RS Motherboard for Intel Core Ultra
Experience next-level performance with the Asrock Z890 PRO RS Motherboard. Featuring Intel Z890 and DDR5 technology, this ATX motherboard is perfect for gaming, AI development, editing and rendering. With ultra-fast 2.5G LAN, TB4, and M.2 support, you can maximize your productivity and unleash your creativity with ease.
Specifications
Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1851
Chipset: Intel Z890
CPU Support: Support Intel Core Ultra Processors (Series 2)
RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Supports Intel XMP
RAM Slots: 4 x DIMM
RAM Speeds: Up to 8666MHz+(OC)
Maximum Memory: 256GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x DisplayPort
2 x Thunderbolt 4
PCI/PCI Express
Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16 (supports x16 mode)*
Intel Z890 Chipset:
2 x PCIe 4.0 x4 (supports x4 mode)
1 x PCIe 4.0 x1
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Storage
4 x SATA III
4 x M.2
Intel Core Ultra CPUs (Series 2):
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 4.0 x4
Intel Z890 Chipset:
M.2_3 (2280) - PCIe 4.0 x4
M.2_4 (2230/2242/2260/2280) PCIe 4.0 x4 & SATA
RAID
Supports RAID 0, 1, 5 and 10 for SATA storage devices
Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
Wireless: No
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported
Rear:
2 x Thunderbolt 4 (USB Type-C) (up to 15W PD 3.0)
1 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
4 x USB 2.0
Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

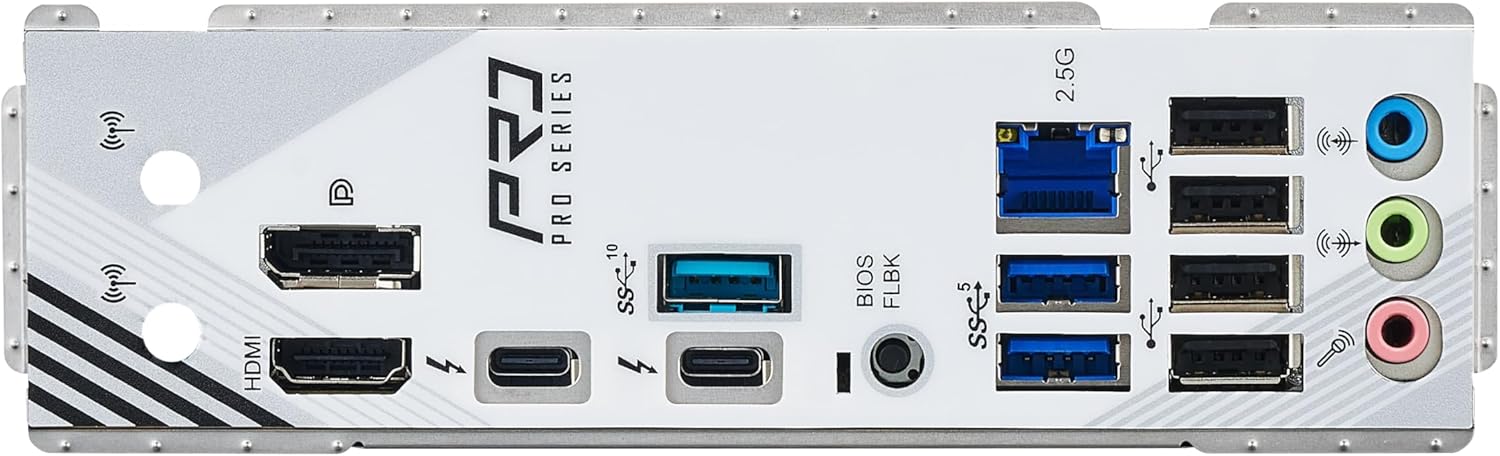

Back Panel I/O Ports
2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
2 x Thunderbolt™ 4 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
5 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0 2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
Accessories
2 x SATA Data Cables
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
