ASRock Z790 Pro RS WiFi ATX Gaming Motherboard, DDR5, Intel 1700, 2.5G LAN, DP, HDMI, WiFi 6E

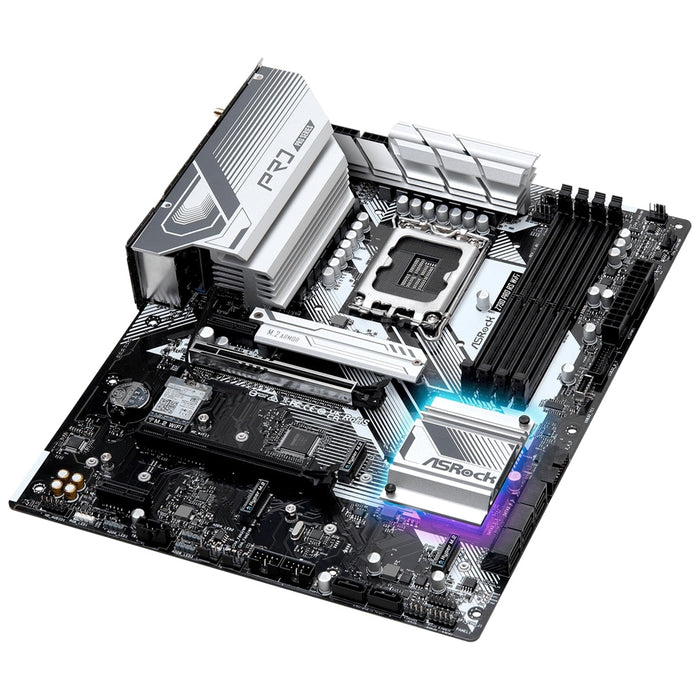

AsRock Z790 Pro RS WiFi Gaming Motherboard
Boost your gaming experience with the ASRock Z790 Pro RS WiFi ATX Gaming Motherboard. Designed with DDR5 technology, Intel 1700 processor and 2.5G LAN, this motherboard offers superior speed and performance. With DP, HDMI, and WiFi 6E capabilities, stay connected and dominate the competition effortlessly.
Specifications
CPU Socket: Socket 1700
CPU Brand: Intel
Installed Processors (Max): 0 (1)
Supported Processor Manufacturer: Intel
Supported Processors: 13th Gen & 12th Gen Intel Core Processors
64-bit Support: Yes
Socket: LGA1700
USB Ports
1 x USB-C 3.1
1 x USB 3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts: 1 x DisplayPort 1.4
HDMI Port: 1 x HDMI 2.1
Keyboard/Mouse Combo Port: 1 x PS/2
RJ-45 Ports: 1 x RJ-45
Audio Line In Ports: 1 x 3.5mm Jack
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5mm Jack
Antenna Connector(s): 2 x SMA Antenna
SATA Connectors: 8 x SATA III
USB Connectors
1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker: 1 x Speaker header
Front Panel Connectors: 1 x Front Panel, 1 x Front Audio
Cooling Fan Support
1 x CPU fan header
1 x CPU/Water Pump fan header
5 x Chassis/Water Pump fan headers
Thunderbolt Port(s): 1 x Thunderbolt AiC header (Supports ASRock Thunderbolt 4 AIC Card)
TPM Header: 1 x SPI TPM header
Other Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS
Memory Bus Speed: Up to 7200+ MHz
Memory Type: DDR5
Maximum RAM: 128 GB
Memory Slot: 4 x DIMM
Northbridge: Z790
RAID Supported: Yes
RAID Format: RAID 0, 1, 5, 10
SATA Supported: Yes
Number of PCI Express Slots
1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots
Integrated Graphics Supported: Yes
Integrated Sound: Realtek ALC897
Integrated Network: Dragon RTL8125BG
Network Speeds Supported: Up to 2.5 Gbps
Wireless LAN: Yes (Wi-Fi 6E)
Wireless Network Speed: Up to 2.4 Gbps
Bluetooth: Yes
Bluetooth Version: 5.2
Form Factor: ATX Motherboard
