Asrock Z790 PG Lightning ATX Motherboard, Intel Z790, 1700, DDR5, HDMI, eDP, PCIe5, M.2

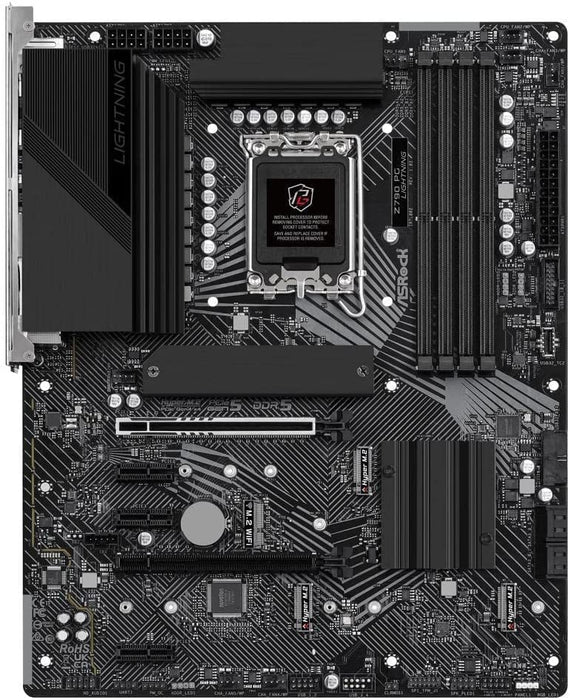

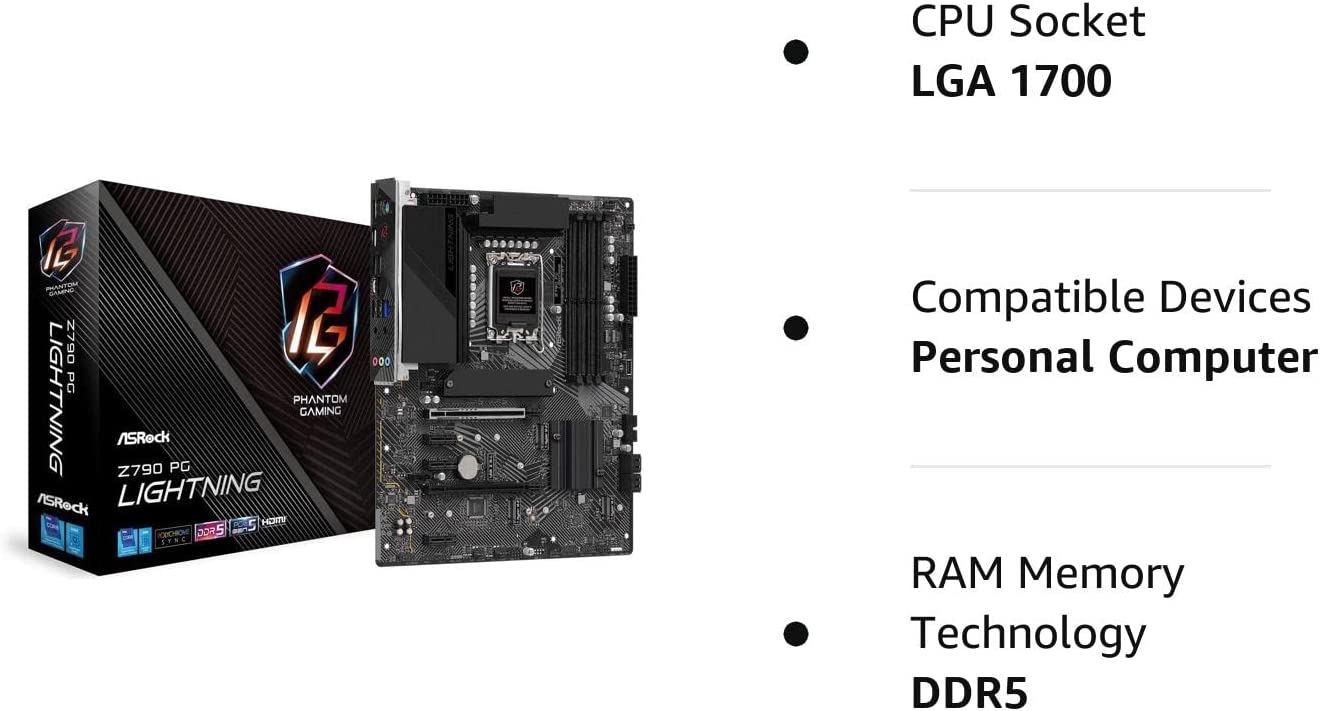

AsRock Z790 PG Lightning Gaming Motherboard
Introducing the Asrock Z790 PG Lightning ATX Motherboard, designed for gaming with support for DDR5 and LGA 1700 processors. Experience blazingly fast speeds with PCIe5 and M.2 connectivity, and stunning visuals with HDMI and eDP ports. Dominate your gaming experience with the power of Asrock technology.
Specifications
Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6800+(OC)
Maximum Memory: 128GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x eDP 1.4
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
3 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA & PCIe
1 x M.2 (2260/2280) - PCIe
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Wireless: No
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
9 x USB 3.2 Gen1 (5 at back, 4 at mid-board)
3 x USB 2.0 (1 at back, 2 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header
Back Panel I/O Ports
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2x2 Type-C
5 x USB 3.2 Gen1
1 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x eDP Signal
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC 1 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen1
Accessories
1 x eDP Signal
1 x User Manual
2 x SATA Data Cables
5 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
