Asrock X670E PRO RS Gaming Motherboard, AMD X670, AM5, ATX, DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, M.2

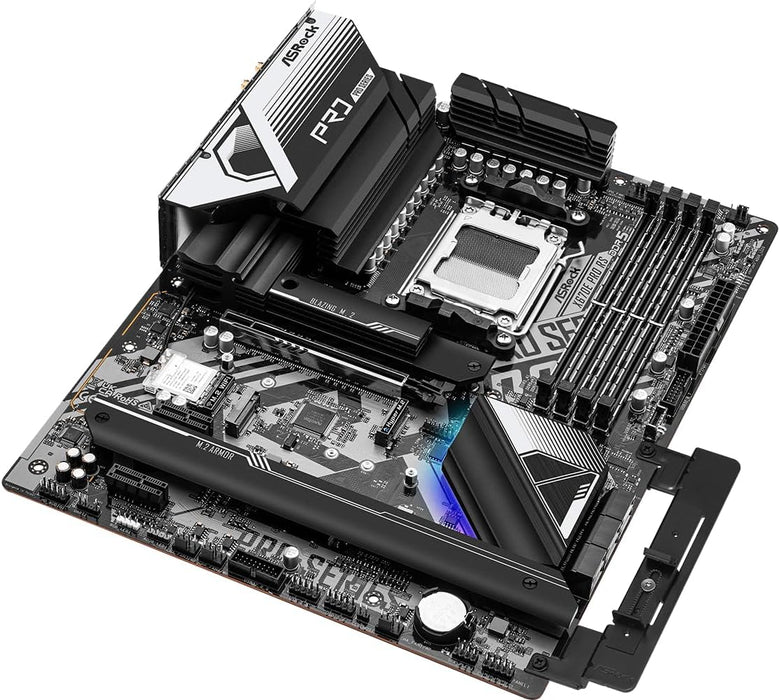

AsRock X670E Pro RS ATX Motherboard

Enhance your gaming experience with the Asrock X670E PRO RS Gaming Motherboard. Designed for high performance, this ATX motherboard features AMD X670 and AM5 processors, along with DDR5 memory for lightning fast speeds. Enjoy seamless connectivity with Wi-Fi 6E and 2.5G LAN, while PCIe5 and M.2 slots allow for expansion. Immerse yourself in customizable RGB lighting for the ultimate gaming setup.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD X670

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 6600+(OC)

Maximum Memory: 256GB

Graphics
Integrated AMD RDNA 2 graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 1 x DisplayPort 1.4

PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)
2 x PCIe 4.0 x1

Storage
6 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2260/2280) - PCIe

RAID
Supports RAID 0, 1 and 10 for SATA storage devices
Supports RAID 0, 1 and 10 for M.2 NVMe storage devices

Wireless
802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 w/ extended 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO

LAN: 2.5GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front Panel Type C USB 3.2 Gen2x2 Header

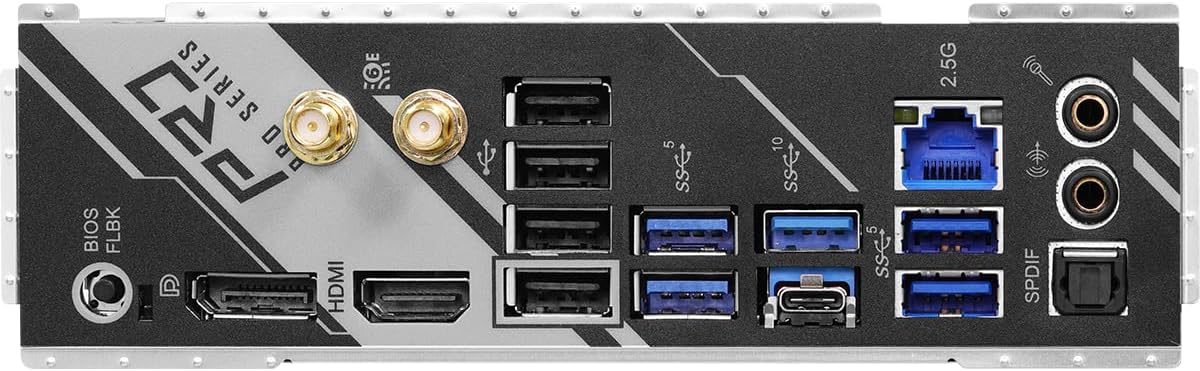

Back Panel I/O Ports
2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack

Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Panel Audio
2 x USB 2.0 2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2

Accessories
1 x User Manual
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
4 x Screws for M.2 Sockets
1 x Graphics Card Holder
