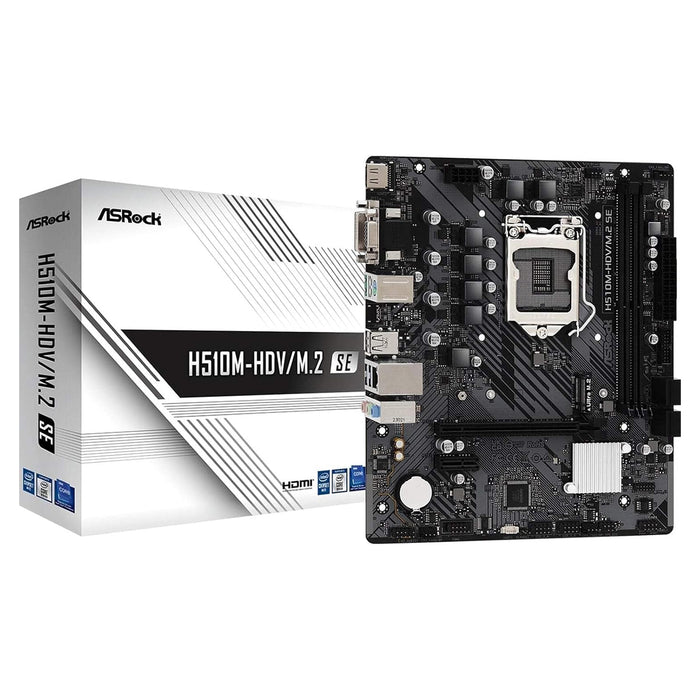

Asrock H510 Micro ATX Motherboard, Intel 1200, M-ATX, DDR4, VGA, DVI, HDMI, M.2, H510M-HDV/M.2 SE

AsRock H510M Micro ATX Intel Motherboard

The Asrock H510 Micro ATX Motherboard is designed for gaming enthusiasts, featuring DDR4 memory and Intel 1200 compatibility. With a sleek Micro ATX form factor and support for M.2, VGA, DVI, and HDMI, this motherboard provides high-quality performance for all your gaming needs.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1200 - Rocket Lake

Chipset: Intel H510

RAM Technology
DDR4 Dual Channel
Supports non-ECC, un-buffered memory
Supports ECC UDIMM modules (operate in non-ECC mode)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 2933 MHz

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x VGA, 1 x DVI-D, 1 x HDMI

PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Wireless: No

LAN: GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported
Rear:
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors
1 x COM Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1

Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
