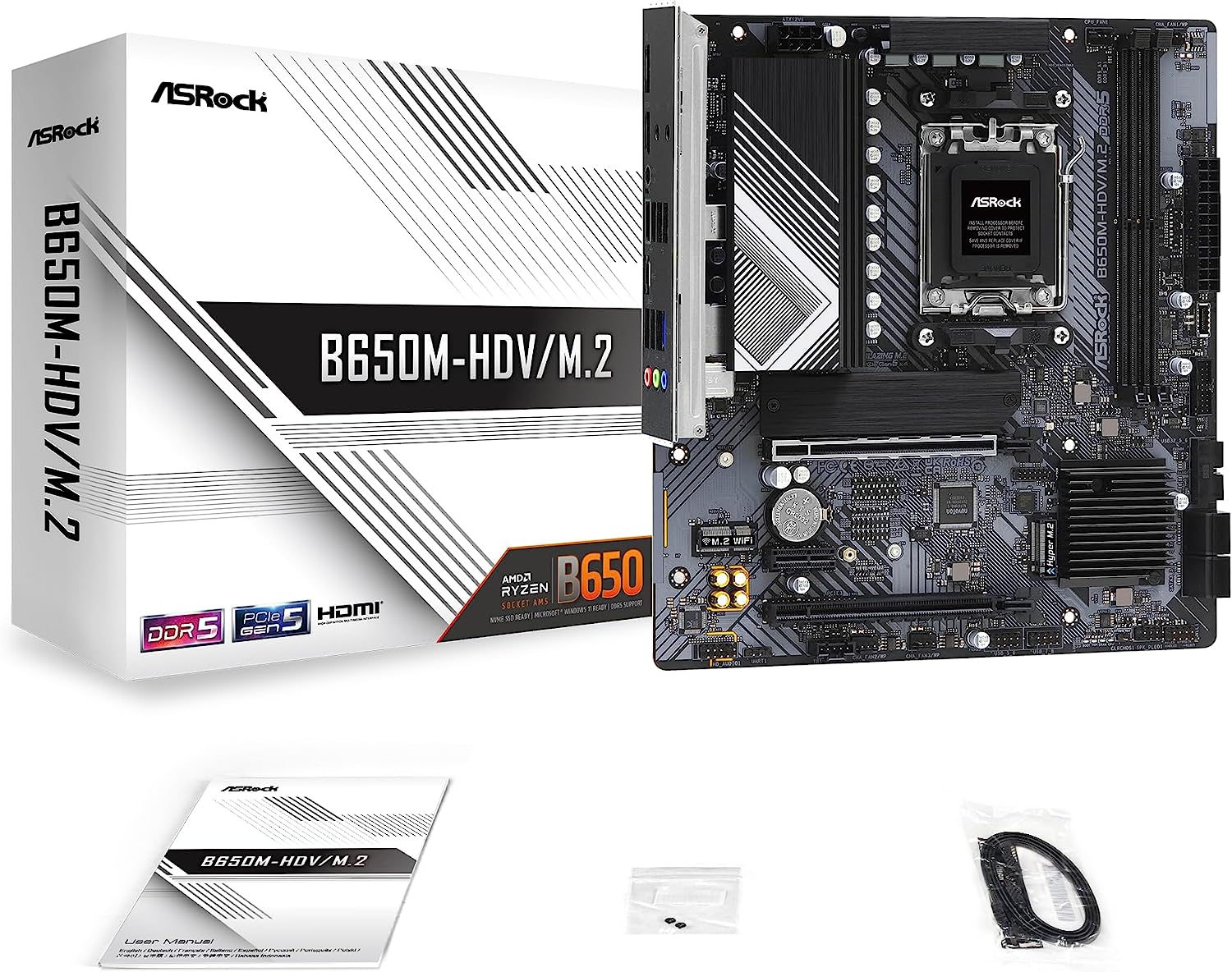

Asrock B650M-HDV/M.2 Motherboard, AMD B650, AM5, Micro ATX, DDR5, HDMI, DP, 2.5G LAN, PCIe4, M.2

Asrock B650M-HDV Micro ATX Gaming Motherboard

Experience the ultimate in gaming performance with the Asrock B650M-HDV/M.2 Motherboard. Designed for AMD B650 and supporting DDR5 memory, this Micro ATX board delivers blazing fast speeds and seamless gameplay. With features like HDMI, DP, 2.5G LAN, and PCIe4, you'll have everything you need to dominate the competition. Upgrade now and take your gaming to the next level.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: AMD AM5

Chipset: AMD B650

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 6400+(OC)

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort

Multi-GPU Support: Supports AMD CrossFire

PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1

Storage
4 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2260/2280) - PCIe

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless: No

LAN: 2.5GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported
1 x USB 3.2 Gen1 Type-C (at back)
6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front USB 3.2 Gen2 Type-C connector

Back Panel I/O Ports
2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x CPU Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2

Accessories
1 x User Manual
2 x SATA Data Cables
2 x Screws for M.2 Sockets
