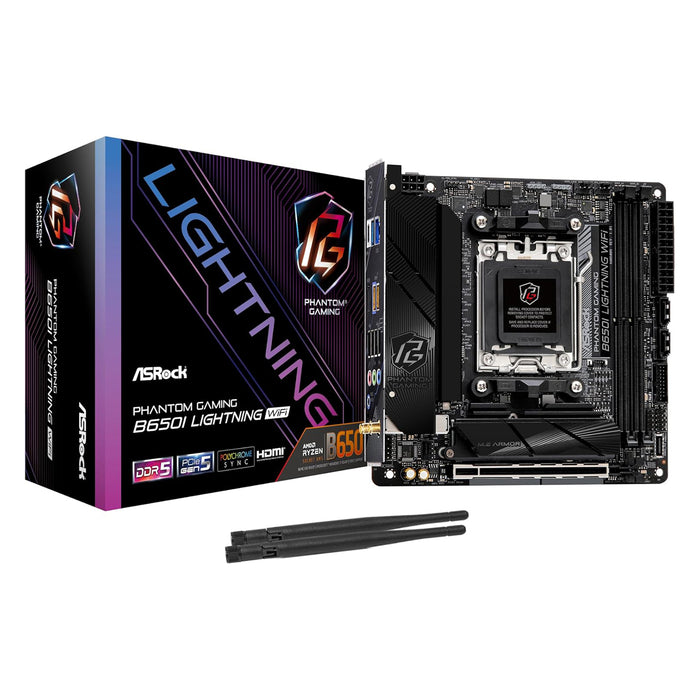

Asrock B650I Lightning WiFi Motherboard, AMD B650, AM5, Mini ITX, DDR5, Wi-Fi 6E

AsRock B650I Mini ITX AMD Gaming Motherboard

Boost your gaming experience with the Asrock B650I Lightning WiFi Motherboard. Featuring the latest AMD B650 and AM5 technology, this Mini ITX motherboard delivers lightning-fast performance and supports DDR5 memory for smoother multitasking. With WiFi 6E support, you can enjoy a stable and high-speed internet connection for intense online gaming.

Specifications

Motherboard Type: Desktop

Form Factor: Mini ITX

Socket: AMD AM5

Chipset: AMD B650

RAM Technology
DDR5 (Dual Channel)
Supports Extreme Memory Profile (XMP)
Supports Extended Profiles for Overclocking (EXPO)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 7200+(OC)

Maximum Memory: 128GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI

PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)

Storage
2 x SATA III
1 x M.2 (2280) - PCIe 5.0 x4
1 x M.2 (2280) - PCIe 4.0 x4

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless
802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO

LAN: 2.5GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported
Rear:
1 x USB 3.2 Gen2 Type-C
3 x USB 3.2 Gen2 Type-A*
4 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

*USB32_23 are Lightning Gaming Ports

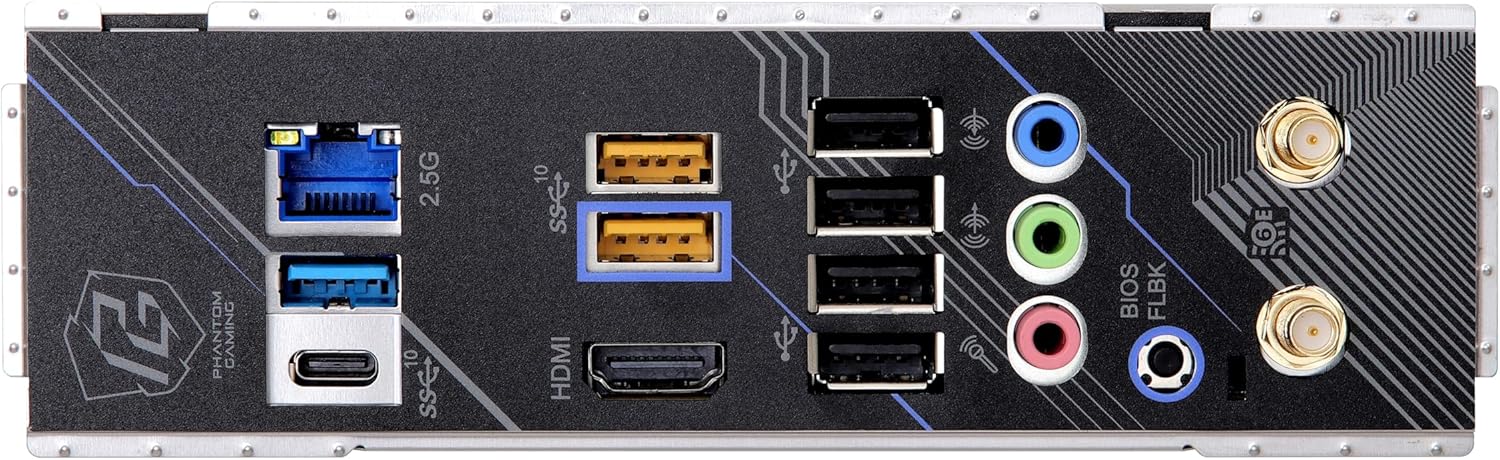

Back Panel I/O Ports
2 x Antenna
1 x HDMI
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors
2 x Addressable LED
2 x CPU/Water Pump Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen1

Accessories

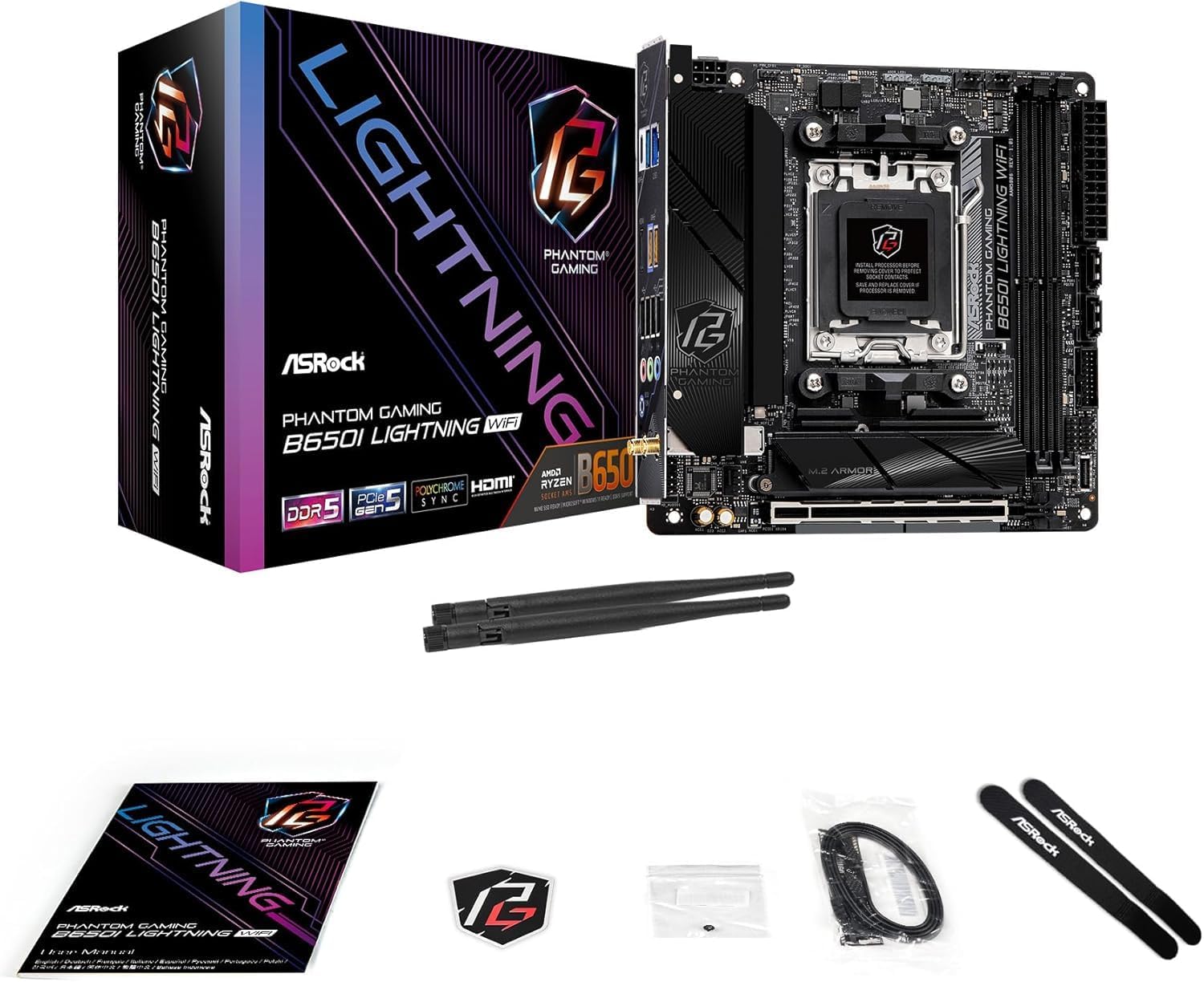

1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Screw for M.2 Socket
