Asrock B650M PG Lightning Motherboard, AMD B650, AM5, Micro ATX, DDR5, HDMI, DP, 2.5G LAN, PCIe4, M.2

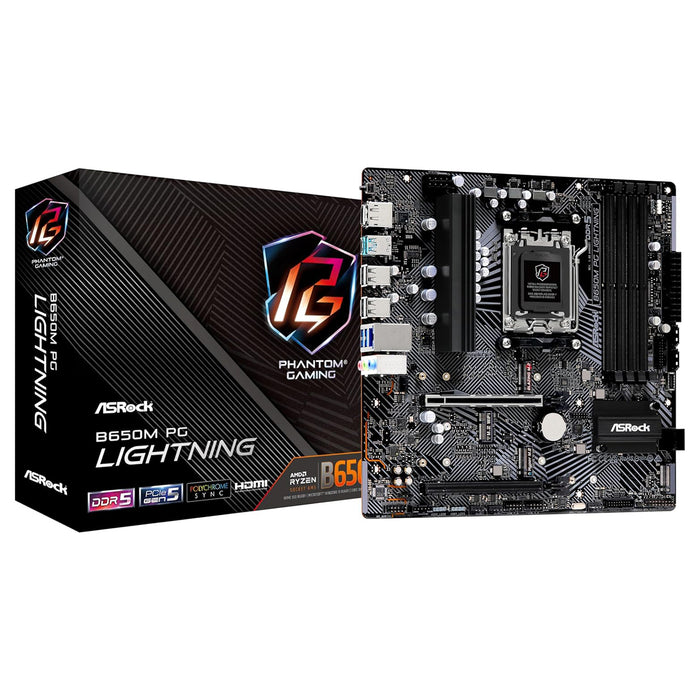

AsRock B650M PG Lightning Micro ATX Motherboard
Unleash lightning-fast performance with the Asrock B650M PG Lightning Motherboard. Built with AMD B650 and AM5 technology, this Micro ATX motherboard supports DDR5 memory, PCIe4, and M.2 storage for a powerful gaming experience. With 2.5G LAN and HDMI/DP ports, you'll have lightning-fast connectivity for all your gaming needs.
Specifications
Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: AMD AM5
Chipset: AMD B650
RAM Technology
DDR5 (Dual Channel)
Supports ECC/non-ECC, un-buffered memory
Supports XMP and EXPO memory modules
RAM Slots: 4 x DIMM
RAM Speeds: Up to 7200+(OC)
Maximum Memory: 256GB
Graphics Ports: 1 x HDMI, 1 x DisplayPort
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 3.0 x16 (supports x4 mode)
Storage
4 x SATA III
1 x M.2 (2260/2280) - PCIe 5.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x2
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Wireless: No
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported
Rear:
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Front:
1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Back Panel I/O Ports
2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
2 x USB 2.0 2 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen1
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
4 x Screws for M.2 Sockets
