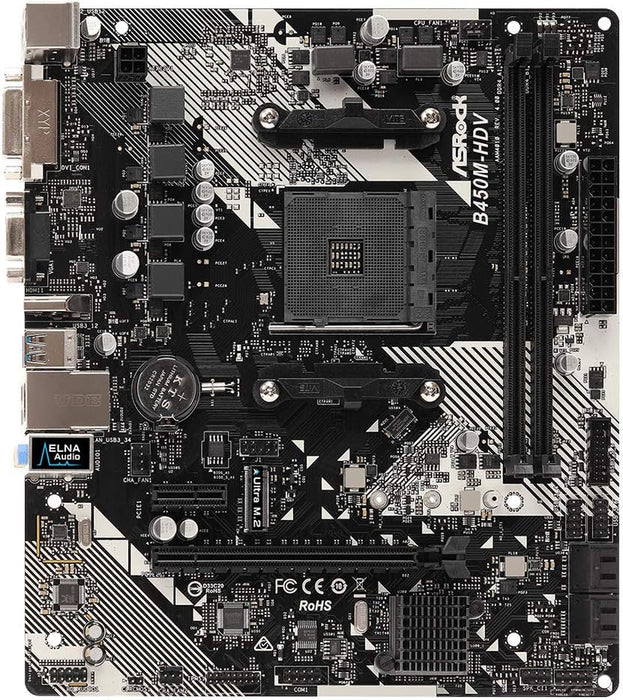

Asrock B450M-HDV R.40 M-ATX Motherboard, AMD B450, AM4, Micro ATX, DDR4, VGA, DVI, HDMI, M.2

AsRock B450-HDV Micro ATX Motherboard AMD AM4

Expertly designed for high performance, the Asrock B450M-HDV R4.0 M-ATX Motherboard delivers seamless compatibility with AMD processors and DDR4 memory. With a compact Micro ATX form factor, this motherboard also features VGA, DVI, and HDMI ports for versatile display options. Built with M.2 storage support, it's perfect for powering your next build.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: AMD AM4

Chipset: AMD B450

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: 3200+(OC)/2933/2667/2400/2133 MHz

Maximum Memory: 32GB

Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU

Graphics Ports: 1 x VGA, 1 x DVI-D, 1 x HDMI

Multi-GPU Support: No

PCI/PCI Express
Ryzen CPUs (Summit & Pinnacle Ridge):
1 x PCIe 3.0 x16

Ryzen CPUs (Raven Ridge):
1 x PCIe 3.0 x16
1 x PCIe 2.0 x1

PCI: No

Storage
4 x SATA III
1 x Ultra M.2 2242/2260/2280 - SATA & PCIe

RAID: RAID 0, 1, 10

Wireless:  No

LAN: GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

USB Ports Supported
6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

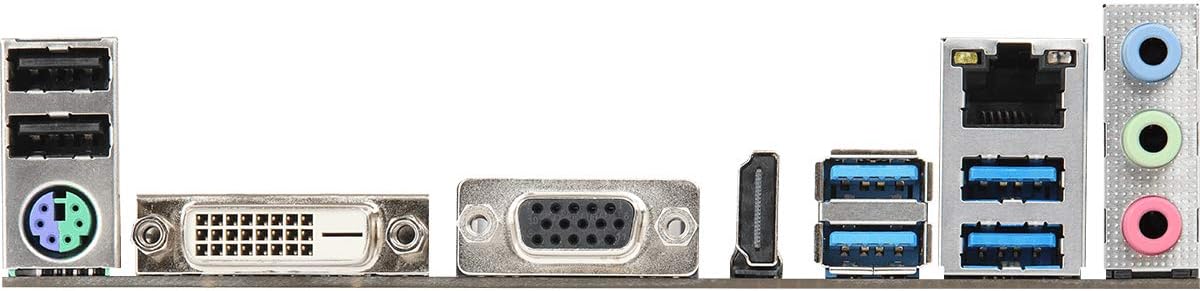

Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors
1 x Print Port
1 x COM Port
1 x TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.1 Gen1

Accessories
Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
