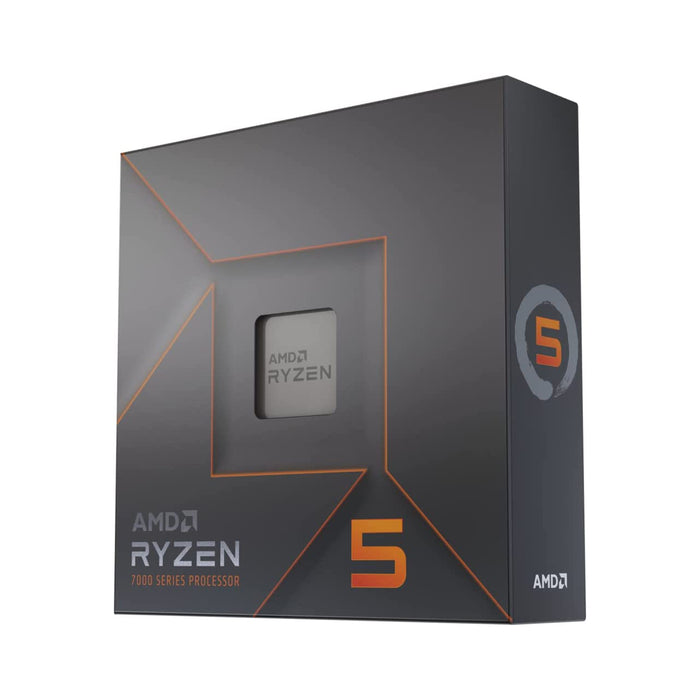

AMD Ryzen 5 7600X CPU, AM5, 4.7GHz (5.3 Turbo), 6-Core, 105W (142W Turbo), 38MB Cache, 5nm, 7th Gen, Radeon Graphics, NO HEATSINK/FAN

AMD Ryzen 5 7600X Processor, AM5 CPU

The AMD Ryzen 5 7600X CPU is a powerful 6-core processor with a base clock speed of 4.7GHz (boosting up to 5.3GHz), making it ideal for demanding tasks and multitasking. With 38MB of cache and 5th generation Radeon graphics, this 105W (142W Turbo) processor offers fast and efficient performance on both desktop and mobile platforms.

Specifications

Socket: AM5

Type: AMD Ryzen 5

Clock Speed: 4.7 GHz

Turbo Speed: 5.3 GHz

Cores: 6 Core

Core Size
CPU Cores: TSMC 5nm FinFET
I/O Die; TSMC 6nm FinFET

Threads: 12

Cache
L1 Cache: 384KB
L2 Cache: 6MB
L3 Cache: 32MB

TDP
105W
142W Turbo

Graphics: Yes

Graphics Details
AMD Radeon Graphics
Graphics Cores: 2
Frequency: 2200 MHz
GPU Base: 400 MHz
USB Type-C DisplayPort Alternate Mode support

Memory Types
Memory Channels: 2
Max. Memory: 128GB
System Memory Subtype: UDIMM
Max Memory Speed: 1x1R 5200 MT/s

Max PCI Express Lanes
28/24 (Total/Usable)
Additional Usable PCIe Lanes from Motherboard:
AMD X670E: 12x Gen4
AMD X670: 12x Gen4
AMD B650E: 8x Gen4
AMD B650: 8x Gen4

Heatsink: No

Special Features
AMD EXPO Technology
AMD Ryzen Technologies
